Record Power BS300E 12 Bandsaw

$1,289.99







The BS300E is a great all rounder perfectly specified for the medium sized workshop where a range of duties will be required.
Featuring a solid fence, vital for accurate ripping, which has a heavy extrusion mounted on a cast iron base and fixed to a solid steel bar for maximum rigidity and support. This is based on an industrial Startrite design and much more solid than other fences at this level. The machine also features a solid double trunnion fence mount to provide rigid table support and one-handed table tilt on a smooth rack and pinion. Adding to the structural integrity of the BS300E are the cast iron bandwheels which are fitted with precision ground rubber tyres to provide a flywheel effect for smooth cutting. A solid blade tension indicator is fitted to the rear of the machine to allow for easy setup. The BS300E is also supplied with a basic wheelkit
as standard.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

In stock (can be backordered)

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

Record Power BS300E 12 Bandsaw

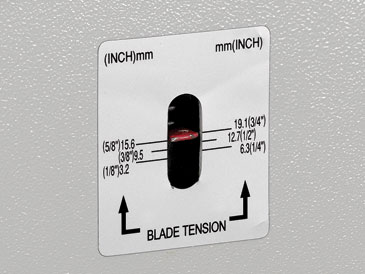

Blade Tension Indicator

Is situated on the rear of the machine.

Industrial Style Fence

This high quality fence features a heavy extrusion mounted on a cast iron base, which moves along a solid steel bar. This provides exceptional strength and accuracy and is easily locked with the brass screw and handle.

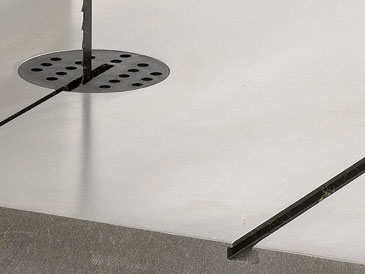

Large Cast Iron Table

Provides a strong and steady work area to support large workpieces. Finely ground finish enables effortless movement of the timber.

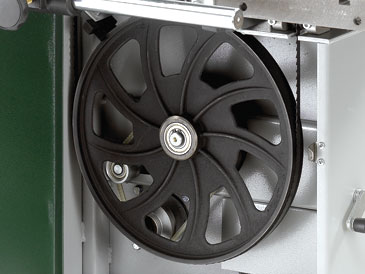

Cast Iron Band Wheels

Are dynamically balanced and provide a flywheel effect for improved cutting performance. Rubber tyres are precision ground for easy blade fitting and smooth drive.

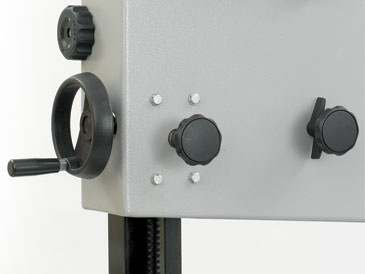

Tracking System

Easy blade tracking to give accurate positioning of blade.

Toolpost Support

Features jacking screws for easy adjustment.

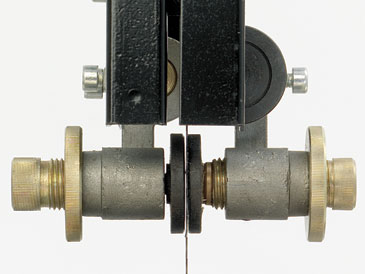

Accurate and Easy to Use Blade Guides

Blade guides need accurately setting if they are to be of any use – so easy access and adjustment are a must. Our guides, similar to those found on industrial machines, give good quality adjustment with minimal need for tools.

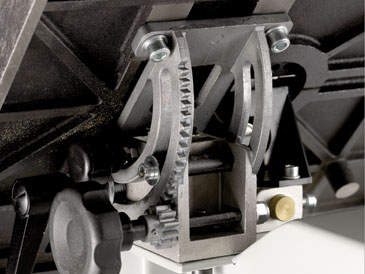

Trunnion

Solid double trunnion table mount for rigid table support featuring one handed rack and pinion table tilt for ease of use and accuracy. Mounted on top of bandwheel box with jacking screws for easy adjustment.

Specifications

Maximum Depth of Cut:190 mm

Throat Depth:305 mm

Table Size:480 x 400 mm

Table Height from Floor:990 mm

Motor input P1:1 kW

Motor output P2:0.75 kW

Blade Length:93 1/4"

Blade Width Capacity:1/4 - 3/4"

Blade Speed:820 & 380 M / minute

Extraction Port Diameter:100 mm

Weight:80 kg

Size:H1690 x W880 x D680 mm

Additional information

Weight 102 kg
Dimensions 110 × 38 × 70 cm
