Record Power BS350S Premium 14″ Bandsaw

$1,599.99

Record Power





An ideal workhorse for the busy workshop where power and generous capacity are required but budget and space do not allow a bigger machine.
This features an open legstand, often requested by our users as it provides greater stability and can be used with an optional pedal style wheelkit. A basic wheelkit is provided as standard. The bandwheels are cast iron and dynamically balanced with precision ground, crowned rubber tyres usually only found on much more expensive industrial machines – the flywheel effect of the cast iron wheels improves cutting performance and speeds.
Our tables are some of the largest in their category and a one piece cast double trunnion has been designed to provide even greater support and rigidity.
The rip fence is the strongest and most industrial in its category with a chromed fence and the mount machined from a single piece of cast iron. The extrusion itself is a heavy section to provide rigidity and accuracy.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

In stock (can be backordered)

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

Record Power BS350S Premium 14" Bandsaw

FEATURES

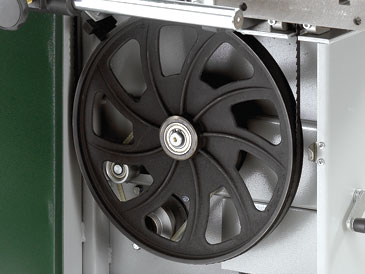

  • Cast Iron Band Wheels Are dynamically balanced and provide a flywheel effect for improved cutting performance. Rubber tyres are precision ground for easy blade fitting and smooth drive.

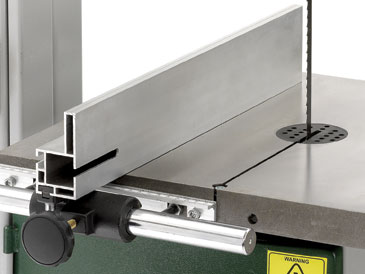

  • Industrial Style FenceThis high quality fence features a heavy extrusion mounted on a cast iron base, which moves along a solid steel bar. This provides exceptional strength and accuracy and is easily locked with the brass screw and handle.

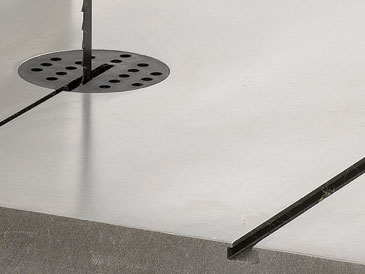

  • Large  Cast Iron Table Provides a strong and steady work area to support large workpieces. Finely ground finish enables effortless movement of the timber.
  • Cam Action Tensioner With the flick of a handle the tension is released on the blade enabling quick easy changing, but more importantly, when reset, the previous tension is automatically applied to the new blade. This makes blade changing a much simpler task and allowing tension to be taken off the blade when not in use.
  • Toolpost Support Features jacking screws for easy adjustment.

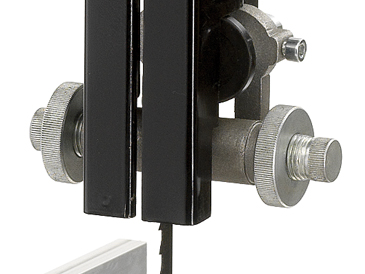

  • Accurate and Easy to Use Blade Guides Blade guides need accurately setting if they are to be of any use – so easy access and adjustment are a must. We believe our guides, similar to those found on industrial machines costing many times more, give even greater support and easier adjustment than ever. When these guides are compared to ball race guides it is clear that they provide far more support. They cover around 3/4” of the blade side rather than the pinpoint contact that ball race guides provide.

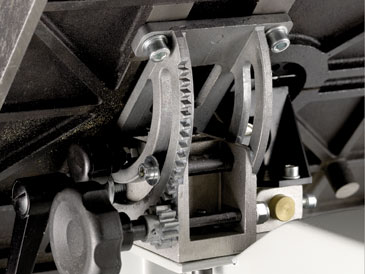

  • Trunnion Solid double trunnion table mount for rigid table support featuring one handed rack and pinion table tilt for ease of use and accuracy.
  • Bandsaw Masterclass DVD Included Presented by Alan Holtham, this indispensable DVD gives a thorough and comprehensive introduction to bandsaw use, setup, maintenance and blade choice.



Tilting Table:Tilting Table
Cast Iron Table:Cast Iron Table
Cast Iron Band Wheels:Cast Iron Band Wheels
Mitre Fence Included:Mitre Fence Included
Cam-Action Tensioner:Cam-Action Tensioner
Two Speeds:Two Speeds

Maximum Depth of Cut:230 mm
Throat Depth:340 mm
Table Size: 548 x 500 mm
Table Height from Floor:998 mm
Motor output :1.4 kW
Blade Length:103 1/2"
Blade Width Capacity:1/4 - 1"
Blade Speed:820 & 380 M / minute
Extraction Port Diameter:100 mm
Weight:100 kg
Size:H1795 x W880 x D780 mm

Additional information

Weight 120 kg
Dimensions 88 × 180 × 80 cm
