PTO 01- Lathe Guard
$950.00 – $1,100.00
Protects the operator from direct contact with the upper part of the chuck lathe and from lubricant-coolant projection.
PLEASE NOTE all Tecno Piu safety guards require electrical interconnection with main machinery switch gear. These units must be fitted by a licensed electrician. Machinery Maintaince can perform these modifications to new and existing machinery. Please contact our sales office to organise a quote.
If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

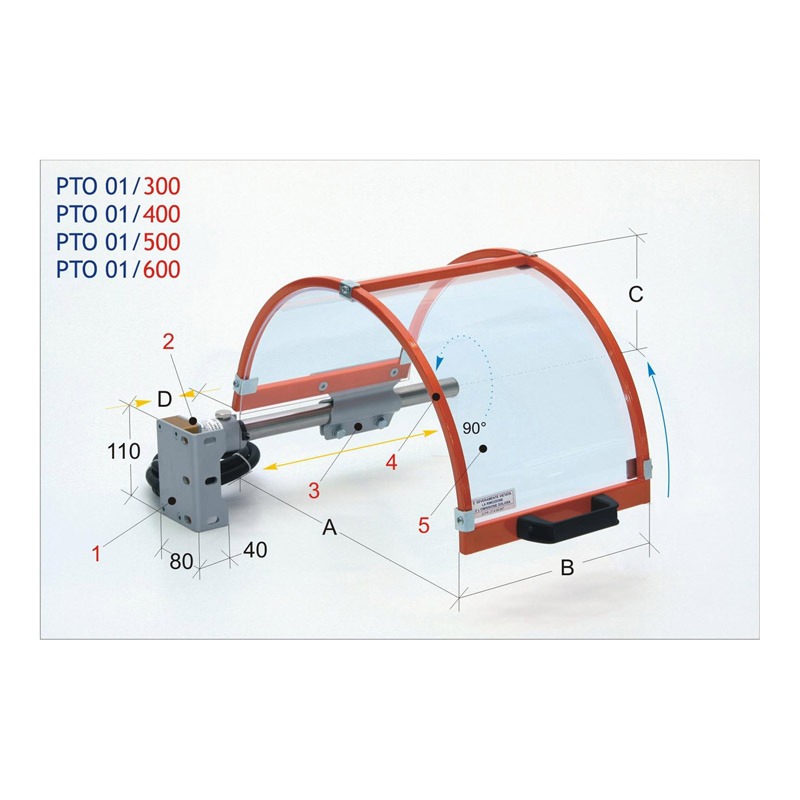

The most popular Tecno rear pivot lathe chuck guard in four sizes with semi circular polycarbonate shield supported by a tube steel frame.  Guard is supplied with a built in safety rated 2NC micro switch.  Note that size designations refer to inside diameter of guard and extra allowance needs to be made for clearance around the chuck including any protruding jaws.
| MODEL | Approx Max Chuck Diameter | A | B | D |
| PTO 01/300 | 225mm | 300mm | 200mm | 10 – 215mm |
| PTO 01/400 | 300mm | 400mm | 235mm | 0 – 150mm |
| PTO 01/500 | 400mm | 500mm | 235mm | 0 – 150mm |
| PTO 01/600 | 500mm | 600mm | 235mm | 0 – 150mm |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | N/A |
| PTO 01 | 300, 400, 500, 600 |
