560mm 22″ToughCut Industrial Thicknesser Ilmenite 560D
$17,999.00
ToughCut Industrial Thicknesser Ilmenite 560D
Standard features such as Variable feeding speeds, Electronic table adjustment, Positioning control, Spring-loaded pressure bar, 4 column table support, spiral cutter head and so much more. All these features provide high performance making it the ideal heavy-duty industrial thicknesser for any workshop
If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678
Available on back-order
Product Features
- Cast iron table mounted on 4 heavy columns for excellent support and accuracy without any locking required

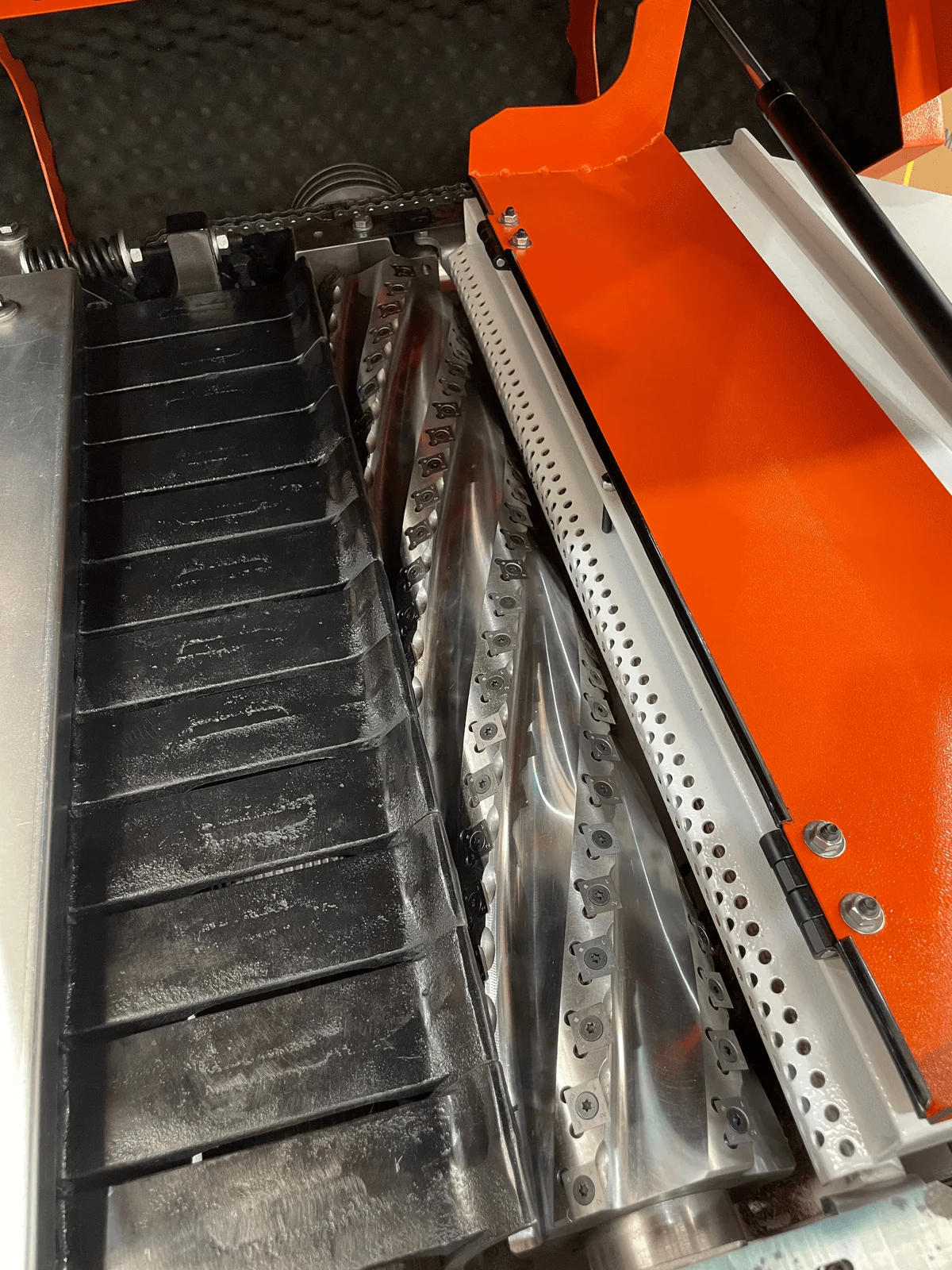

- Spiral Head Cutter Block (126 Blades (560D) / 150 Blades (630D))
- Variable speed infeed by inverter to suit all types of finishes
- Motor drive table lifting mechanism with micrometric positioning

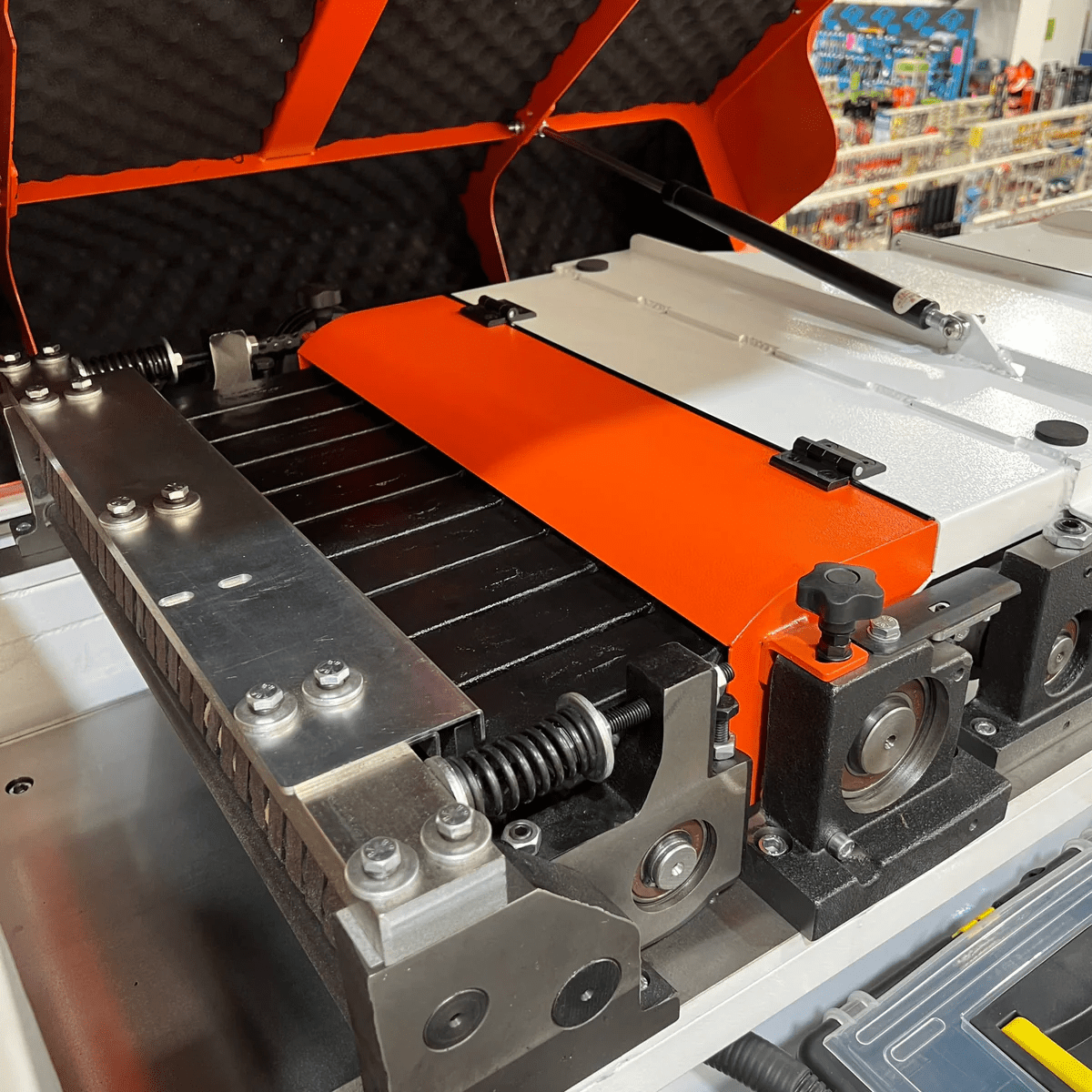

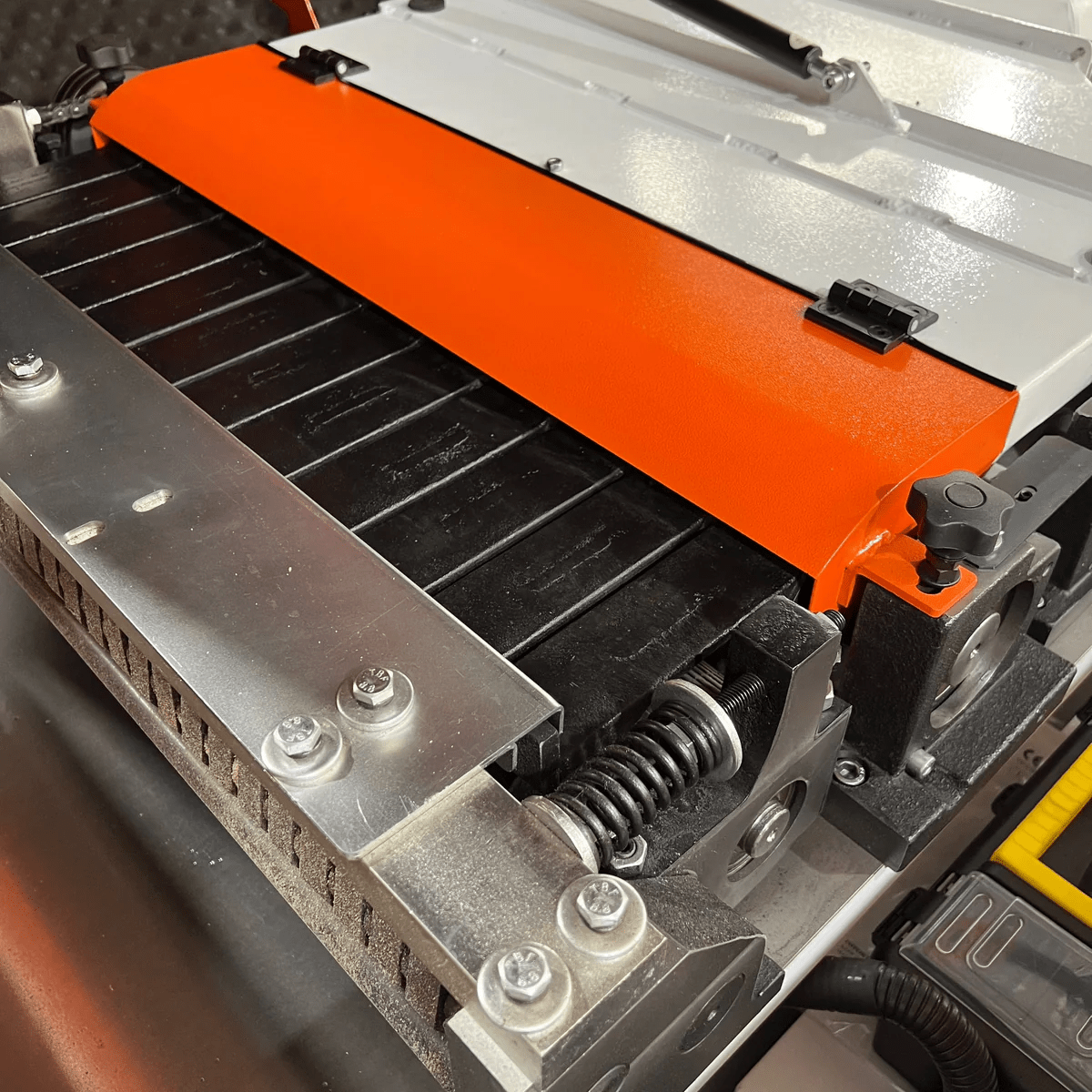

- Spring-loaded pressure bars and double outfeed roller design prevents vibration of very thin workpieces during thicknessing

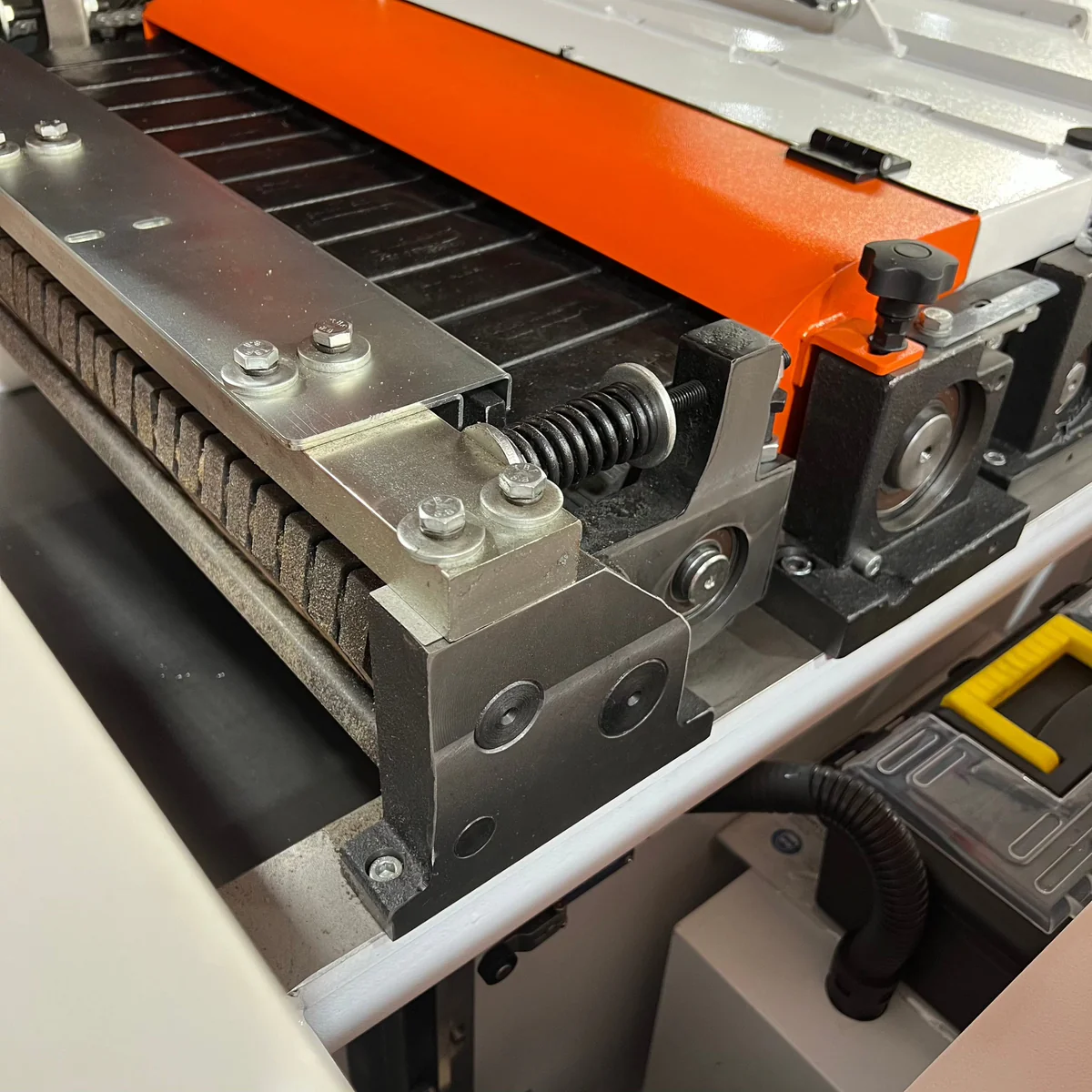

- Sectioned Feeding Roller
- Four trapezoidal thread spindles with dual guide rails guarantee accurate adjustment and avoid lateral movement during thicknessing
- Two bottom table rollers
- Electronic motor breaking

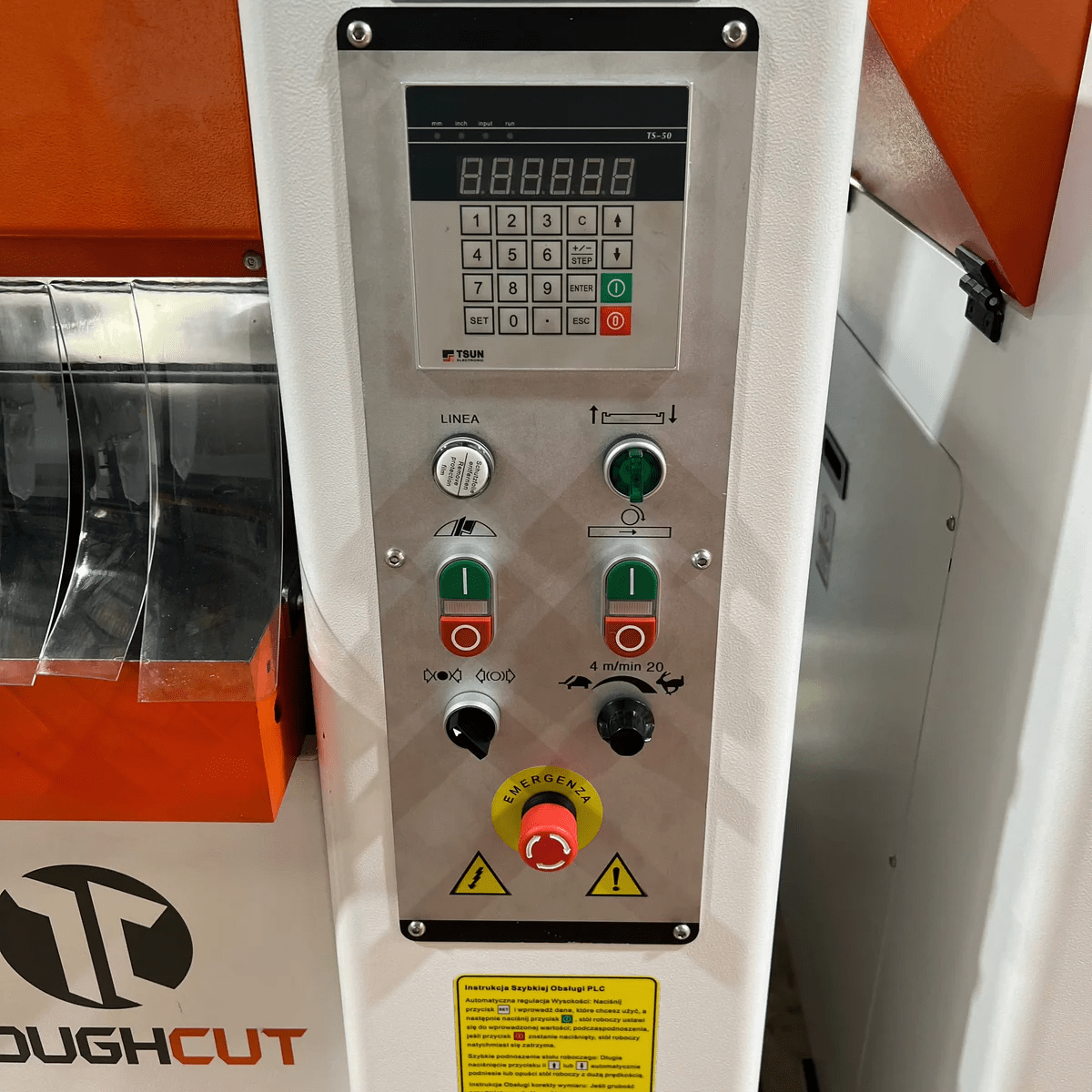

- Electronic positioner to enable high precision and help reduce positioning time to increase efficiency

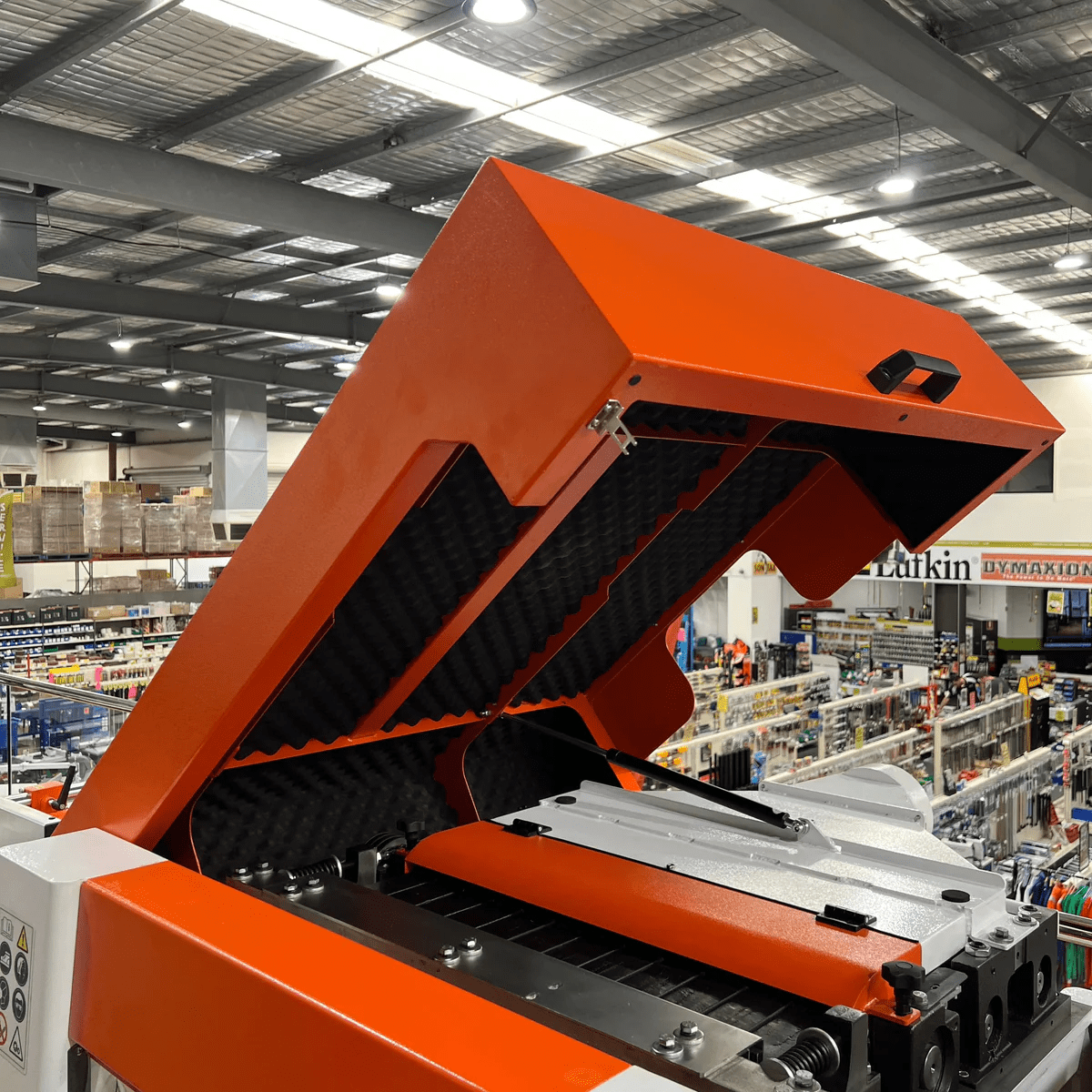

- Sound insulation underside of the lid
- Matting protection on top of the lid to allow material to be pasted over the machine without causing damage to the workpiece
Technical Information
- Motor: 415V (3PH -7.5HP)
- Max planning width: 530mm
- Planning thickness: 5-300mm
- Max chip removal: 6mm
- Segmented infeed roller dia.: 76mm
- Steel outfeed roller dia.: 65mm (x2)
- Bed rollers: 2
- Cutter block speed: 5500RPM
- Cutter block dia.: 120mm
- Weight: 870Kgs
- Dimensions: 1220 x 1150 x 1325mm
Additional information
| Weight | 800 kg |
|---|---|
| Dimensions | 135 × 120 × 160 cm |
