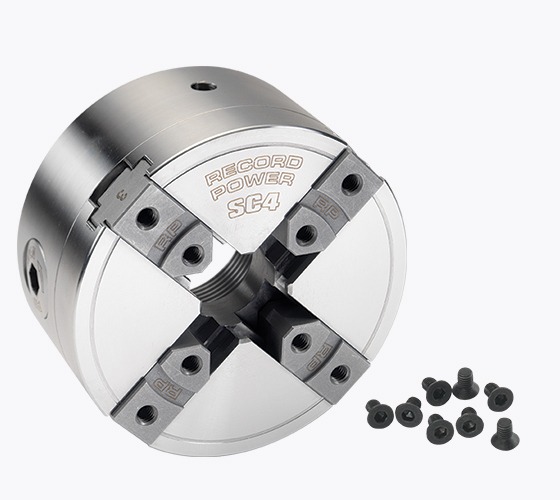

SC4, Insert Thread, With 62572 Face Plate (Includes Insert)

$229.00

Record Power





The SC4 is perfect for the demanding woodturner, being capable of holding large work pieces yet possessing the precision and compactness to handle more delicate work. This model features an enclosed back with full indexing plate and has pinions driven by a long ball ended hex key to make access easy, even when large work pieces are mounted. This chuck is an insert model (the relevant choice of insert is included in the price) which means it is easily future proofed against upgrades and can be used on multiple lathes, even if they have different spindle threads (additional optional inserts required).

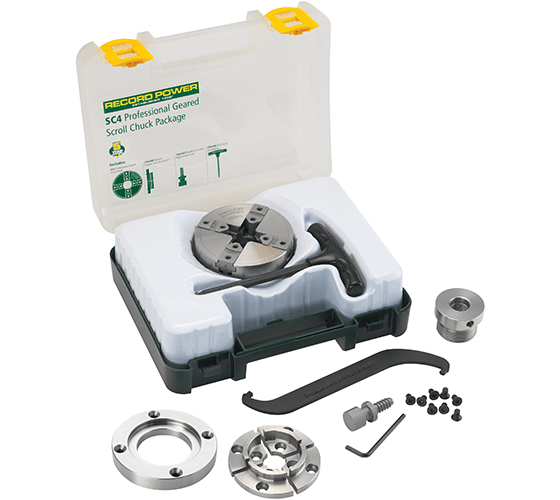

Supplied complete with the deep wood screw, 50 mm standard jaws, 2” faceplate and insert to suit virtually any lathe (including M33 x 3.5) this package offers professional performance at an exceptionally affordable price.

In stock (can be backordered)

Description

SC4, Insert Thread, With 62572 Face Plate (Includes Insert)

Features

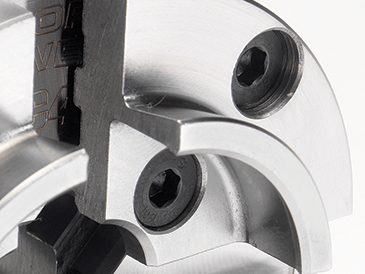

Jaw Fixing System

The SC3 and SC4 feature jaw fixings which not only fit the Record Power series of Jaws but are also fully compatible with Nova and Robert Sorby brand jaws.

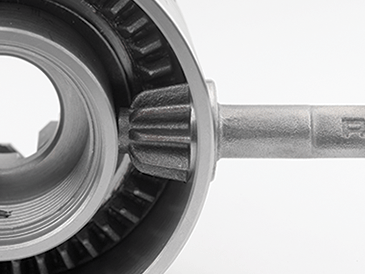

Precision Engineered Gears

Super Geared True-Lock™ technology ensures high levels of accuracy to provide smooth and solid operation. (SC3 key shown).

Deep Wood Screw

The SC3 and SC4 are supplied with the indispensable Record Power deep wood screw. Ideal for mounting bowl blanks, this screw is held in the jaws of the chuck, giving exceptional holding power. This means a separate woodscrew chuck need not be used and the chuck can stay on the lathe, saving time and effort.

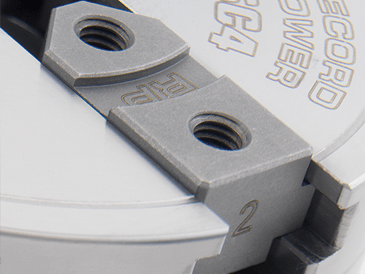

Heavy Duty Jaw Slides

The improved and enlarged jaw slides give unsurpassed holding power and load bearing ability. They are made from high tensile steel, reinforced with nickel and copper and heat-treated to ensure superior strength.

Single Handed Operation

The SC3 and SC4 are operated single-handedly using a key, leaving a hand free to mount the work. The SC4 key features a ball hex wrench design for multi-directional operation and ease of access. (SC4 key shown).

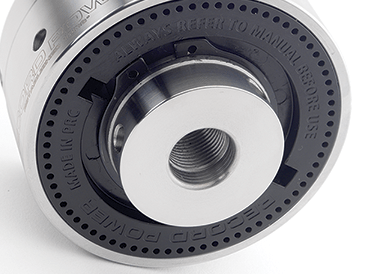

Sealed Backing Plate with Full Indexing

The SC4 features a strong backing plate to protect the gear mechanism from dust. It also features 72-point indexing around the full circumference.

Additional information

Weight 4 kg
Dimensions 30 × 25 × 10 cm
