Description
Features
State-of-the-Art Motor and Full Electronic Variable Speed

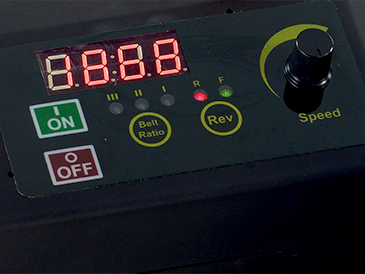

The 750 W motor features the latest in motor technology to give huge amounts of torque, comparable to lathes over twice the size and motor rating. Instantaneous speed change is achieved using the easily accessible control panel. Reversing is also offered for sanding or left handed turning (Must be used only with suitable locking systems for chucks and accessories).

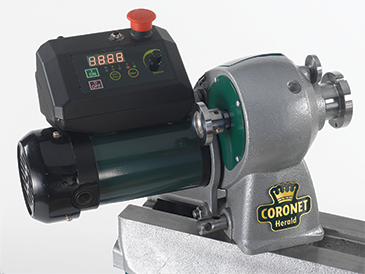

Rotating and Repositionable Headstock
Cam Lock
The tool rest holder is locked in place instantly with the easy to use cam locking system.

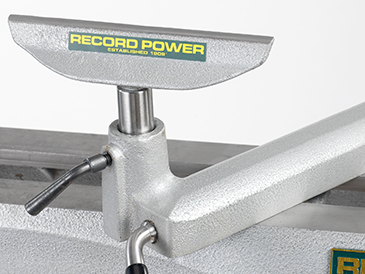

Heavy Duty Tool Rest Stem
The 1″ diameter tool rest stem helps minimise vibration, giving a smoother and easier cut.

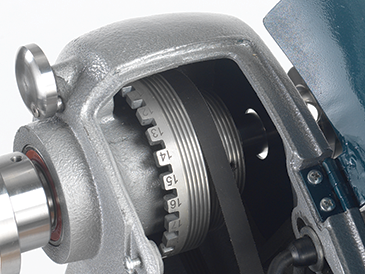

3 Step Pulley
A 3 step pulley is provided for maximum versatility. For most turning the middle pulley is perfect and provides good torque but if you need maximum torque comparable to much larger lathes for heavy cuts or low speed work, then the bottom pulley has immense torque capability. For very small work, polishing or burnishing acrylics, the top pulley gives access to very high speeds.

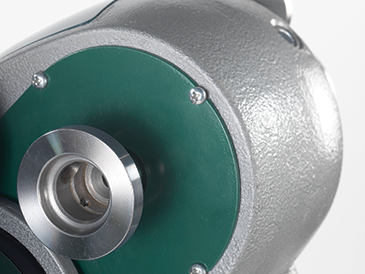

Hand Wheel
The headstock features a substantial hand wheel to turn the spindle, making fitment of headstock accessories much easier.

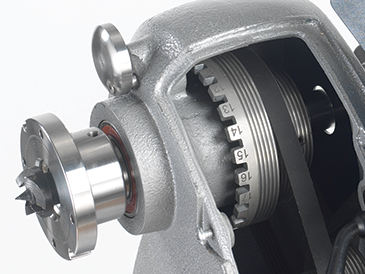

Heavy Duty Spindle Lock and Indexing
Holds the spindle securely and offers a full 24 point indexing function.
Innovative Tailstock Design
The tailstock has been designed to allow easier access to the cam lock handle at the rear. It is also profiled and open on one side for comfortable grip when sliding along the bed.
Specifications
Maximum bowl diameter:533 mm (21″)
Maximum between centres:508 mm (20″)
Maximum swing over bed:355 mm (14″)
Spindle speeds:95-3890 rpm
Motor input P1:1 kW
Thread:M33
Taper:2 Morse taper
Weight:48 kg
Size:W870 x D290 x H252 mm
