Record Power Coronet Envoy Heavy-Duty Cast Iron Variable Speed Lathe

$2,999.99

Record Power



Record Power Coronet Envoy Heavy-Duty Cast Iron Variable Speed Lathe is Part of the exclusive range of Coronet lathes from Record Power, the Envoy is perfect for the woodturner who regularly needs the power, stability and capacities necessary for large scale work. Designed as a natural progression from the Coronet Herald, it is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers.
The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use.
The Envoy offers unrivalled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

In stock (can be backordered)

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

Record Power Coronet Envoy Heavy-Duty Cast Iron Variable Speed Lathe

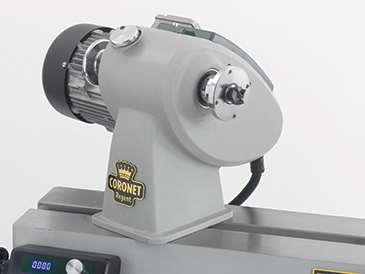

Rotating and Sliding Headstock

Unlike many cast bed lathes, the headstock of the Envoy can be rotated 360º, optimising access and also making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be locked at 90º to the lathe bed and it can also be moved along the bed if required.

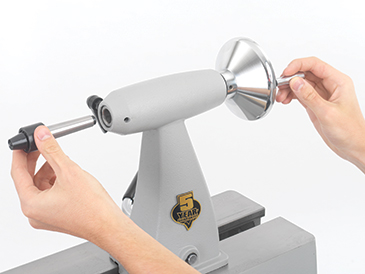

Self-Ejecting Tailstock

The Record Power Coronet Envoy Heavy-Duty Cast Iron Variable Speed Lathe has self-ejecting tailstock allows for accessories to be easily and quickly removed without the need for a knockout bar. It accepts 2 Morse taper accessories, providing excellent strength and solidity.

3-Step Pulley

A 3-step pulley is provided for maximum versatility. For most turning the middle pulley is ideal and provides good torque but if you need maximum torque for heavy cuts or low speed work, then the bottom pulley has immense torque capability and the top pulley gives access to the highest speeds. For ease of use the drive belt position can be seen through the inspection window of the headstock.

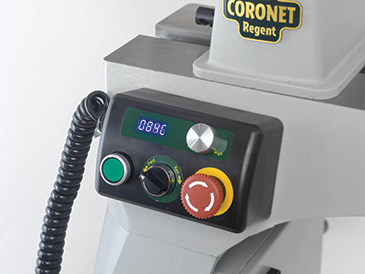

Repositionable Control Panel

The of the Envoy can be placed anywhere on the lathe and is secured from the rear with a strong magnet. Ideal for when turning large timbers which can limit access to the headstock-mounted fixed control panels found on many lathes.

The headstock features a substantial hand wheel to turn the spindle, making fitment of headstock accessories much easier.

Heavy Duty Spindle Lock and Indexing

Holds the spindle securely and offers a full 24 point indexing function.



Maximum bowl diameter           1000 mm (39”)
Maximum between centres       610 mm (24”)
Maximum swing over bed        410 mm (16”)
Spindle speeds                         250 - 3800 rpm
Motor input P1                          1.5 kW
Thread                                      M33 x 3.5
Taper                                        2 Morse taper
Weight                                     140 kg
Size:                                         L1435 x D540 x H1210 mm

Download Product Flyer

Additional information

Weight 150 kg
Dimensions 148 × 54 × 60 cm
