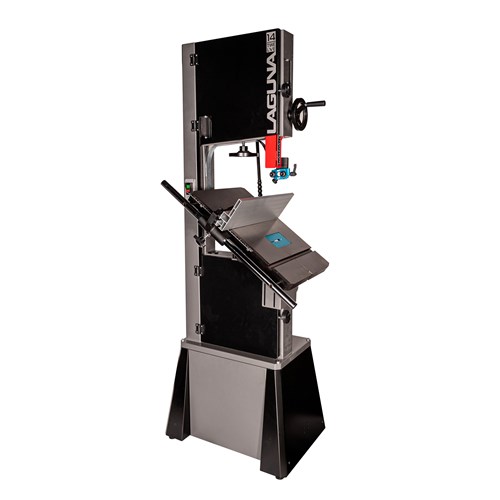

14|12 Bandsaw CE Model

When launched in the USA in 2015, the 14/12 Bandsaw won multiple awards and is now the best seller on that continent. The premium build quality, large depth of cut and professional features have made it a favourite of joinery shops and high-end DIY home workshops.

These high-end features include a pyramid shaped spine that minimises any frame distortion when the blade is fully tensioned, ensuring cutting accuracy.

One of the most distinctive advantages of the Laguna bandsaw range over all other brands is the famous ceramic blade guide system. They create 10 points of contact on the blade allowing easy set up and highly accurate cuts even when re-sawing deep timber. Using long life ceramic guides allows for a much larger blade contact area than traditional bearing guides. The result is more support for the blade and greater cutting accuracy.

The braked motor provides enough power to operate at the full 330mm (13”) cutting depth. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up.

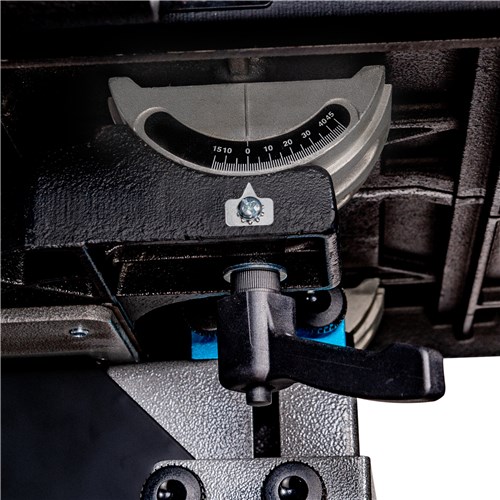

The micro polished cast iron table is mounted onto an oversized double cast iron trunnion with two locking points that ensure there is a solid surface to work from. The table tilts to 45 degrees with a positive Stop at 90°. A flip plate allows reverse tilt up to 7 degrees when required. In the centre of the table is a premium anodised aluminium throat plate with 4 adjusting screws to ensure a perfect flush fit.

The parallel fence runs smoothly along a polished solid steel bar. The locking screw is fitted with a brass end to ensure a positive lock which will not let you down and creep during repeat work. The measuring scale is marked in both Inches and MM. The rigid aluminium high/low fence ensures full and precise timber support for both large and small work pieces.

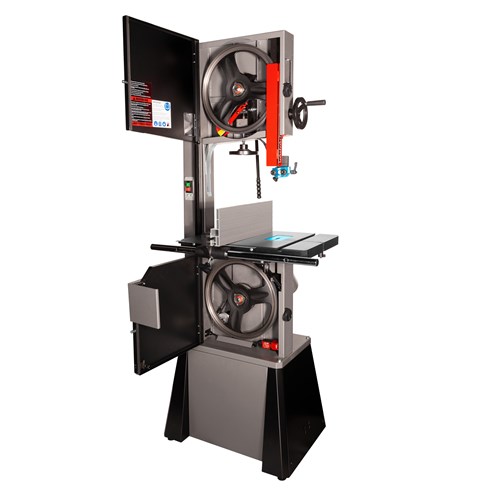

Solid cast iron wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres designed to run cooler & last longer than conventional tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended.

Double windows allow you to check both tension & tracking while the machine is running.

Efficient dust extraction is achieved through a 100mm (4″) diameter outlet located just underneath the table. A deflector sends the dust into the collection port before it comes into contact the lower wheel and other moving parts – extending their lifespan.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

Available on back-order

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

14|12 Bandsaw CE Model

Brand Laguna
Warranty 2 Years
Motor 1300w (1.75hp) 10 amp Braked Motor
Blade Guides Laguna 5 Piece Ceramic
Blade Length 2,920mm (115")
Blade Speed 965 m/min
Dust Port/s 100mm (4")
Gross Weight 142kg
Minimum Blade Width 3mm (1/8")
Maximum Blade Width 19mm (3/4")
Table Size 400mm x 546mm (16" x 21.5")
Table Tilt -7 degrees to +45 degrees
Workshop Footprint (WxDxH) 800mm x 683mm x 1784mm
Throat 340mm (13.6")
Wheel Diameter 355mm (14")
Shipping 1390mm x 580mm x 620mm
Nett Weight 117kg
Cutting Depth 330mm (13")
Fence Height Hi/Lo 140mm / 12mm (5.5" / 0.5")
Mitre Track 19mm to 25mm (3/4" to 1")

Additional information

Weight 150 kg
Dimensions 140 × 60 × 85 cm
