410mm (16″) Variable Speed Scroll Saw OT-SS-410

$299.00

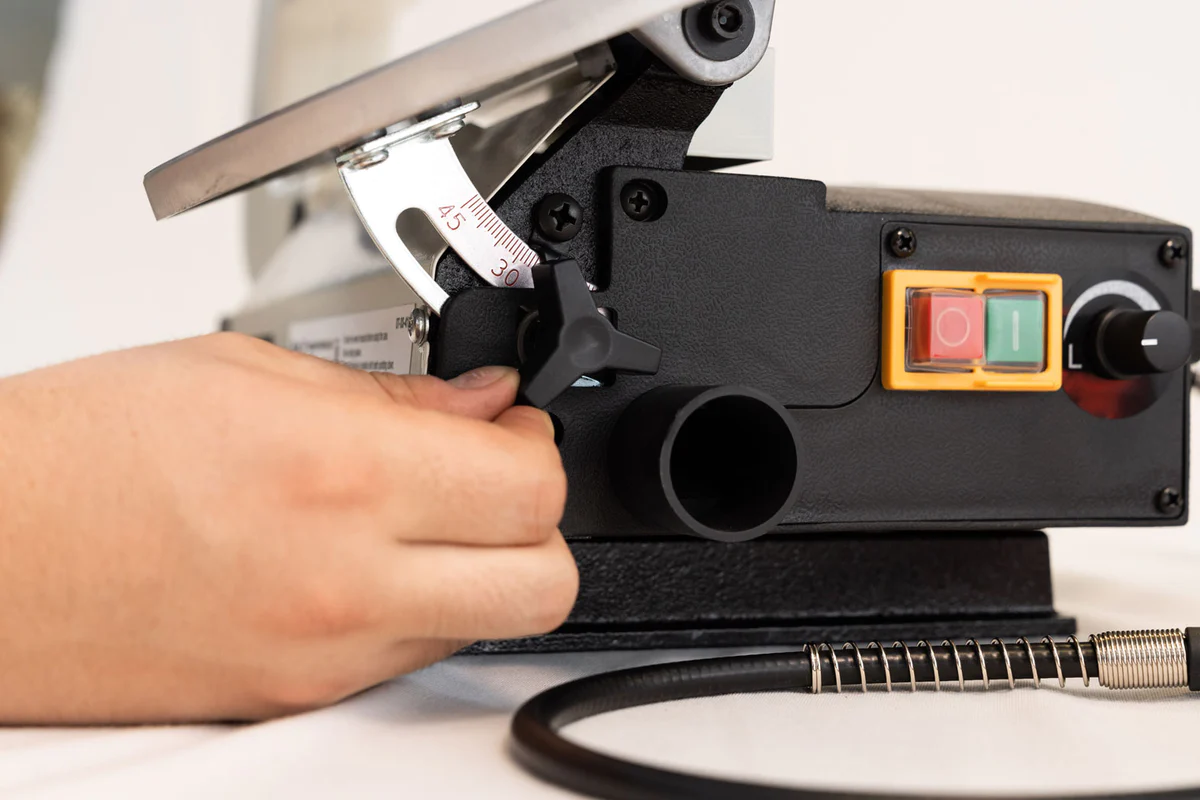

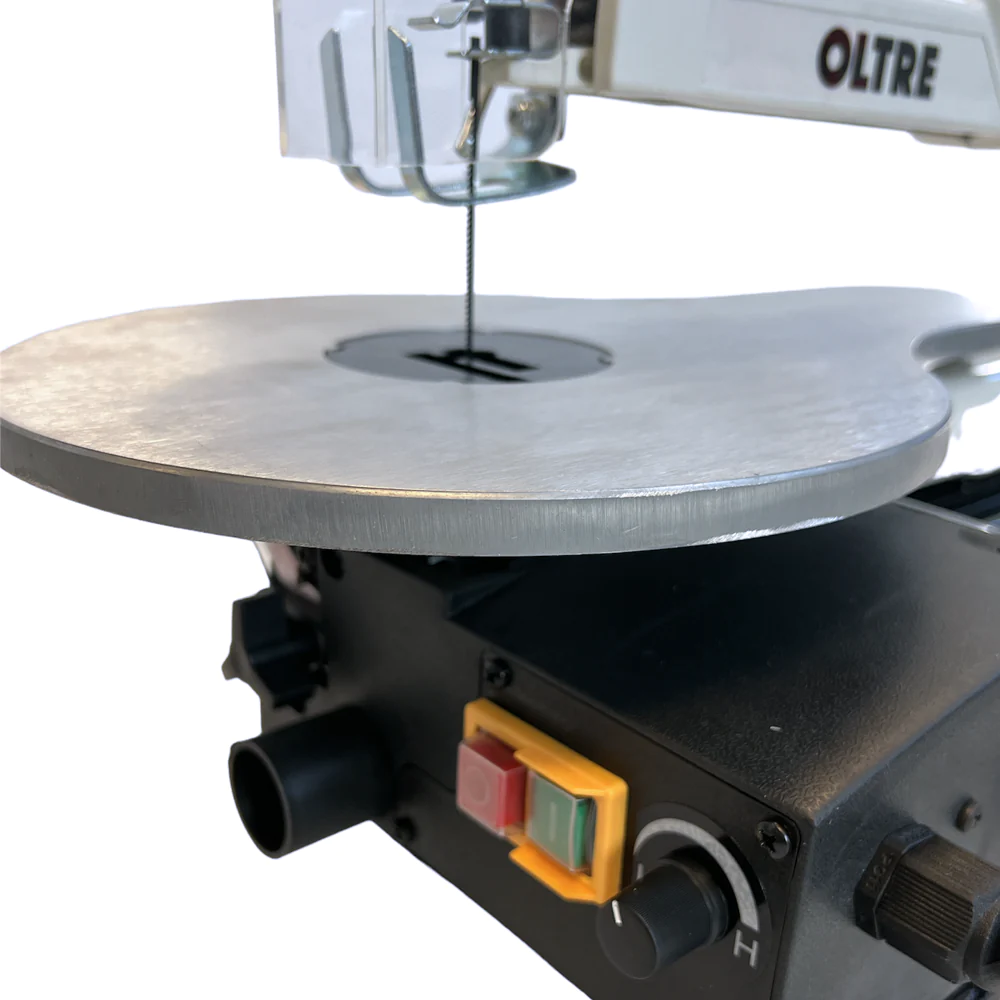

Tilting Table  The table tilts up to 45º, allowing for endless possibilities, from creating snug fitting veneers and intarsia work to the compound cutting techniques often used in model making.

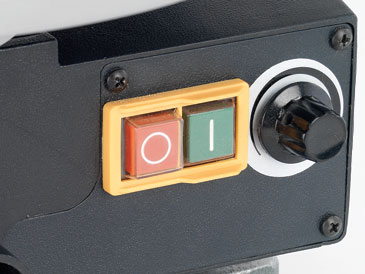

Smooth and Responsive Variable Speed  Blade speed is changed with ease using the conveniently placed control knob at the front of the machine.

Built in Plain Blade Setting Jig The plain blade holders are attached to the blade in the correct position quickly and easily by using the built in jig.

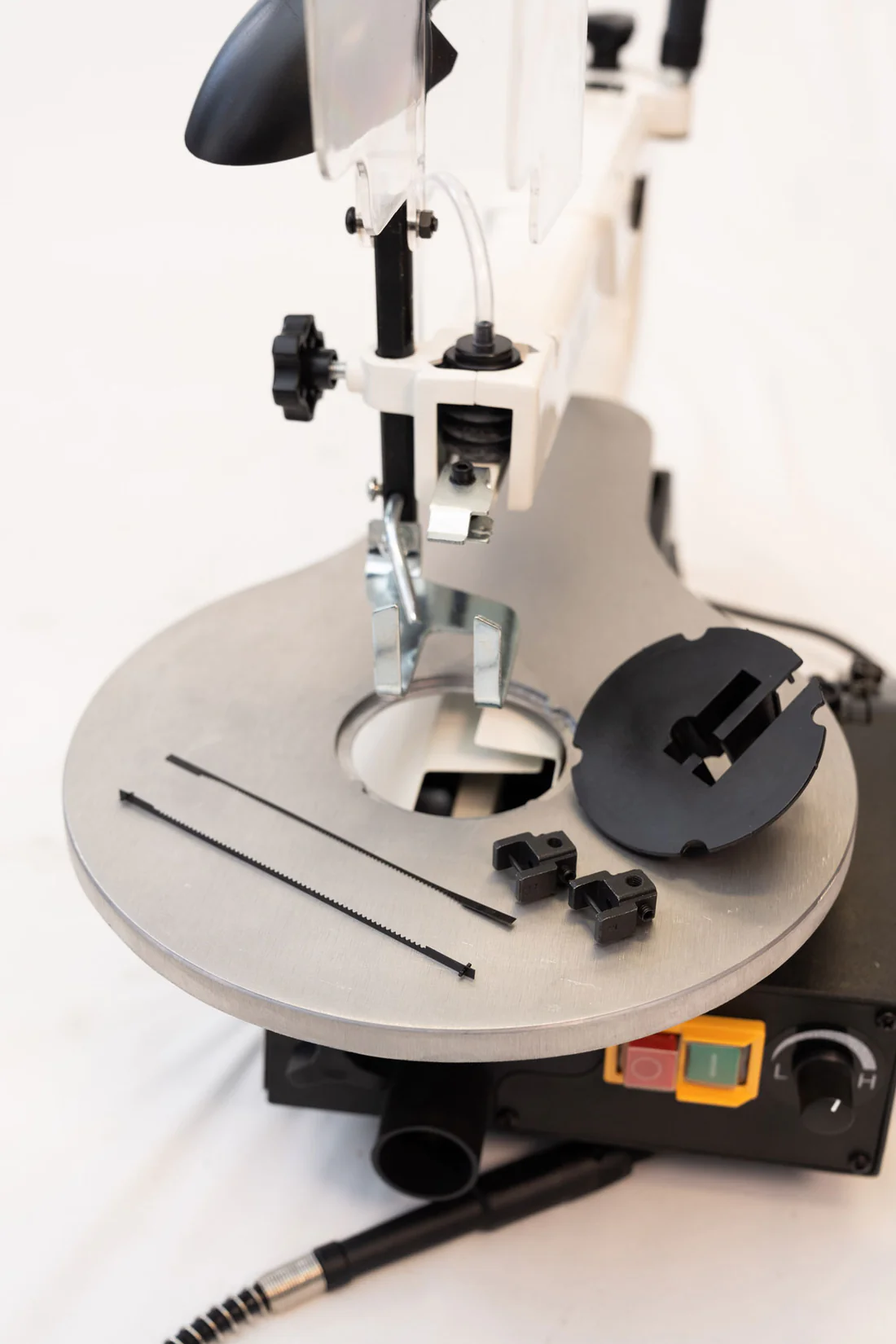

Accepts Plain End Blades Once fitted to the blade, the holders locate onto the jaw system with ease. This method offers a simple and quick way to securely hold plain end blades.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

In stock (can be backordered)

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

Description

The OT-SS-410 Scroll Saw is a ‘Specialty Saw’ designed for small, delicate detail cutting. The saw is made of all-metal construction.

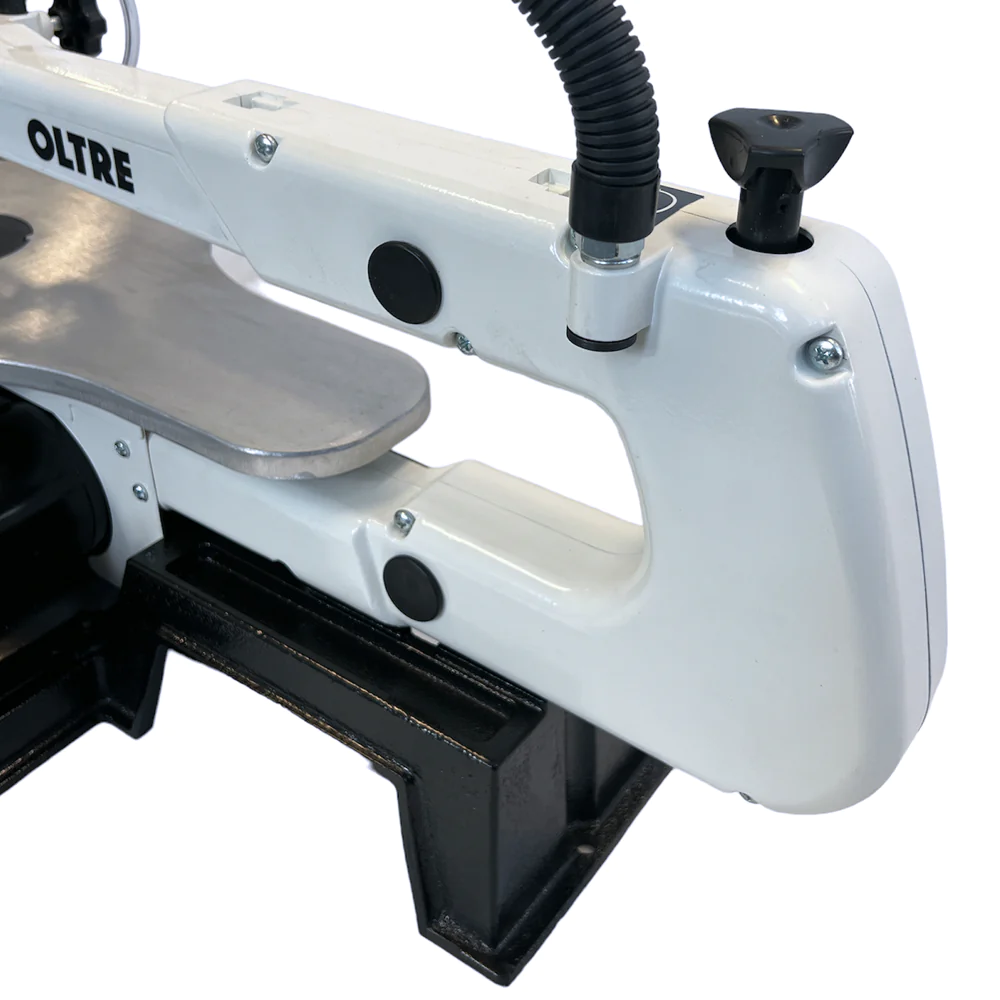

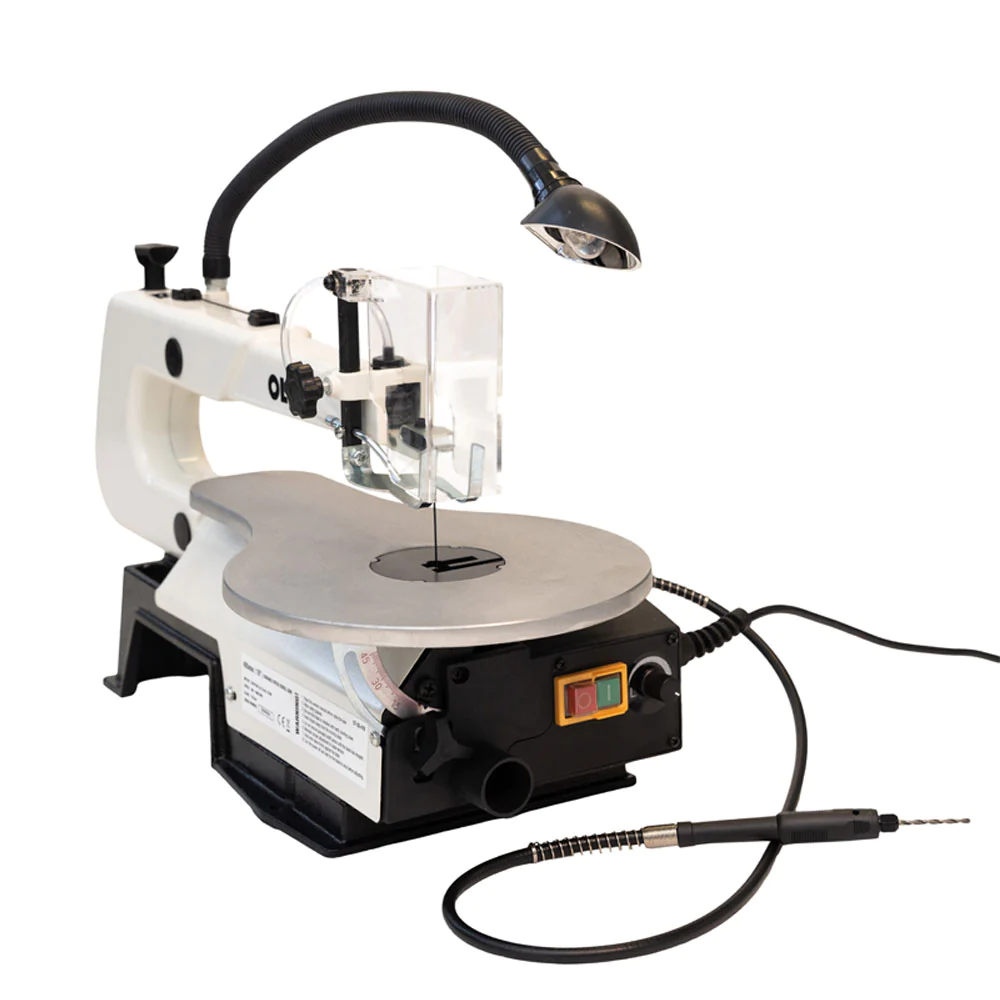

The 410mm Scroll Saw is designed for making small, intricate curved cuts in thinner woods that are used in making decorative scrollwork, puzzles, inlays, and craft items. The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The variable speed DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s 410mm (16”) throat and large machined aluminum table give extra access and stability when sawing large stock. Table also tilts to -45° for making angled cuts. The OLTRE OT-SS-410 machine uses 125mm (5”) long pinned or plain end blades. Includes cast iron base for greater stability, work light, pair of pin-less blade holders.

Features

  • Variable Speed

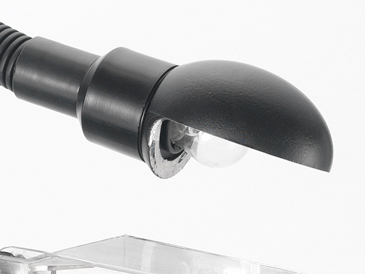

  • LED Flexible Gooseneck Work light
  • Cast Iron Base
  • Large Aluminium Table
  • Pair of Pinless Blade Holders - Accepts both Plain and Pin Type Blades

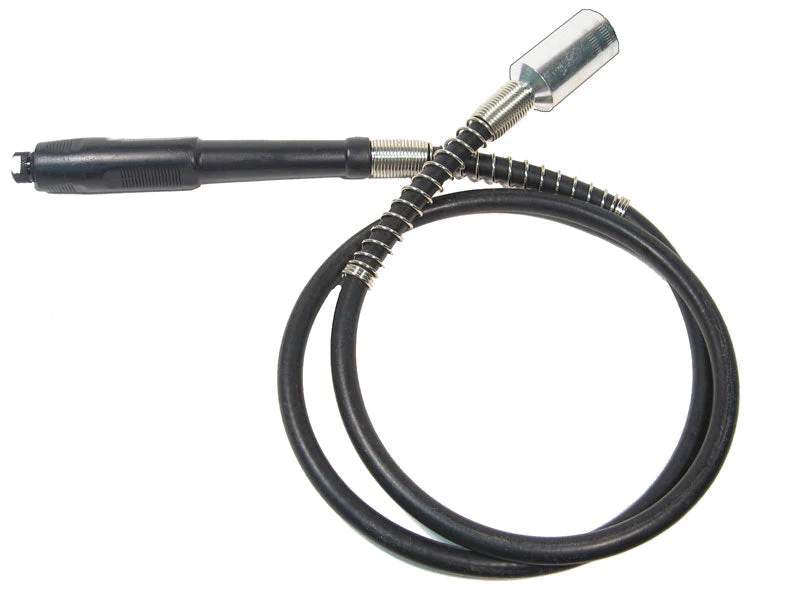

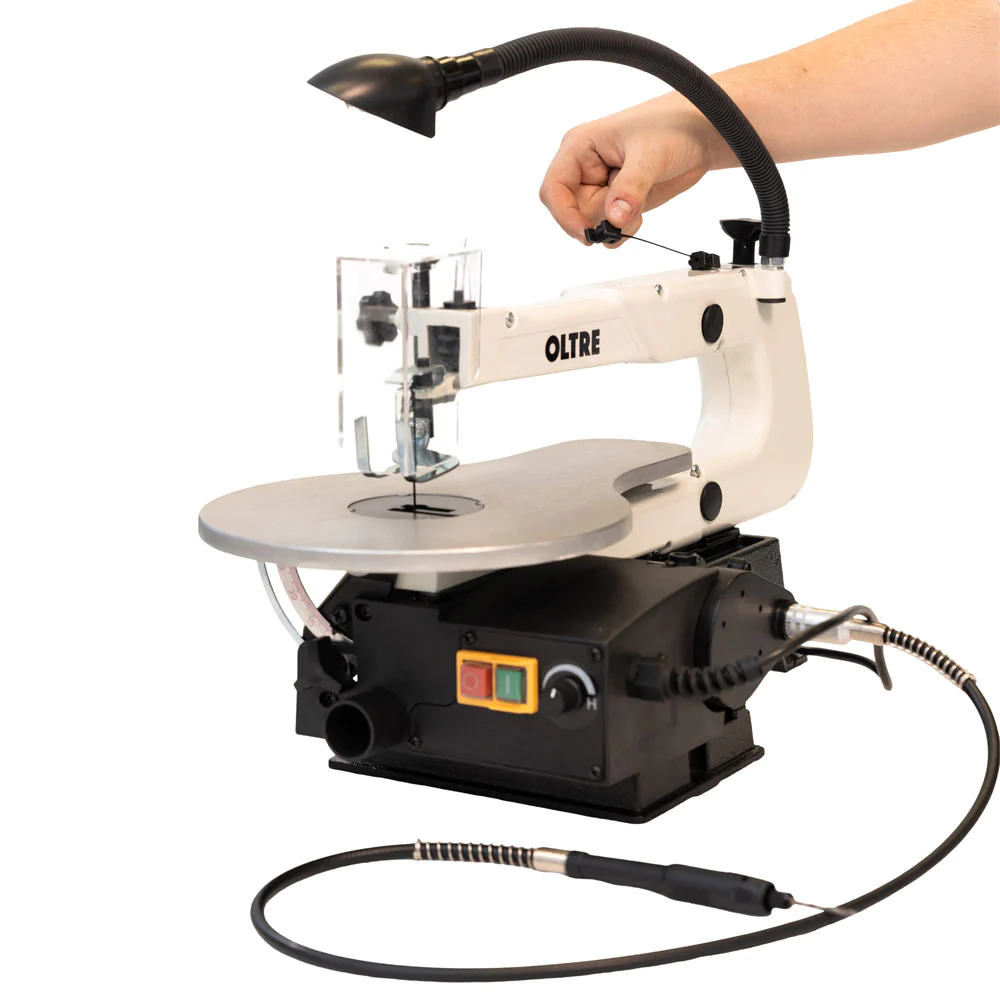

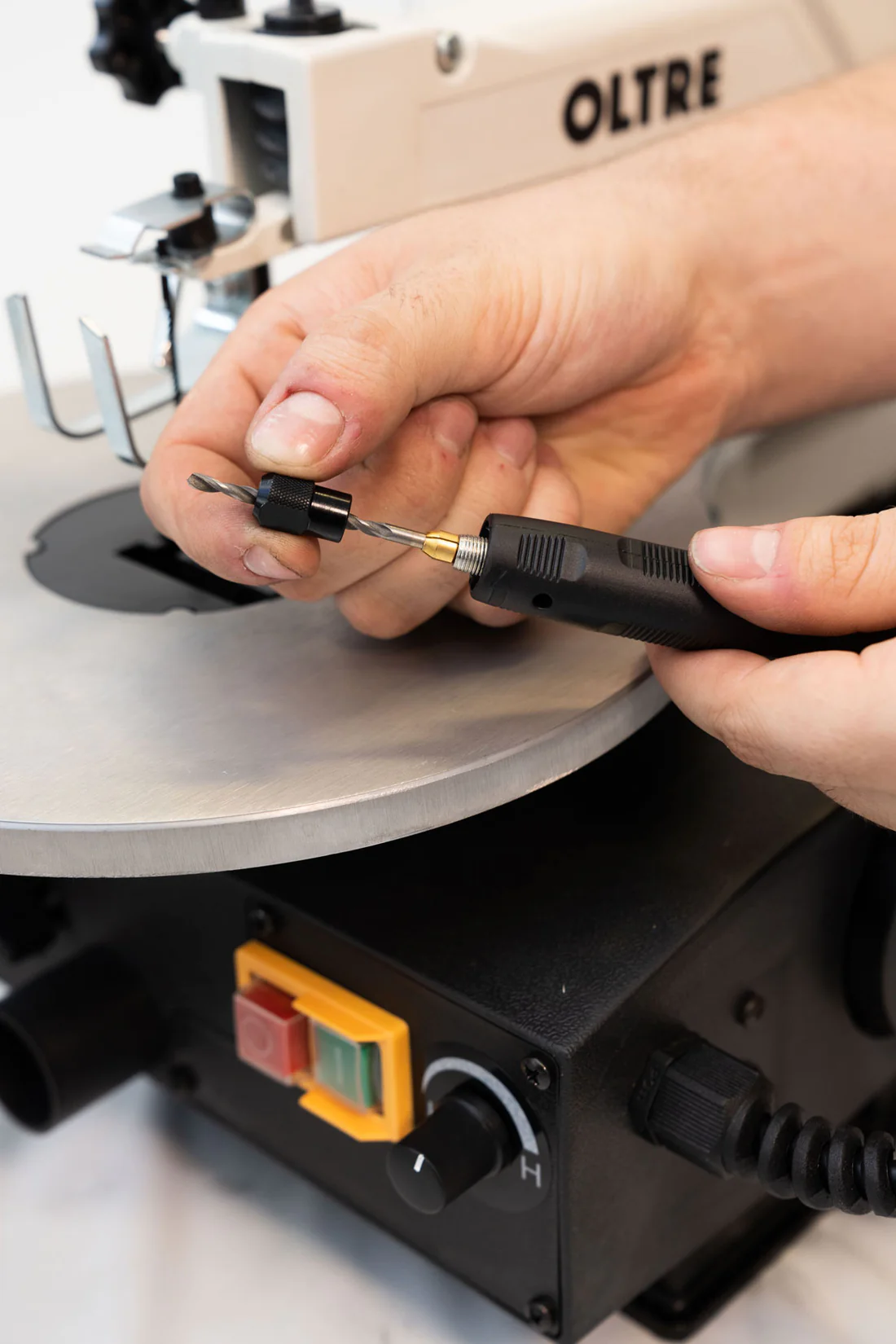

  • 10-9123 High Speed Flexible Shaft - attaches to the motor shaft for rotary work (pictured - included as standard with OT-SS-410)

Optional Accessories

  • 10-9124 Rotary Attachment Set - 64Pce Accessory Kit 10-9124 by Rikon

Spare Parts / Consumables

  • P10-600VS-96 Pin-Less Blade Holder
  • P10-600VS-26 Replacement Bulb (10W)
  • Power Source 240V 50Hz Single Phase
    Blade Type Pinless / Pin Type Blade (Dual Blade Feature)
    Blade Length 127 mm
    Cutting Capacity - Height 50 mm
    Throat Capacity 405 mm
    Table Size 254mm (Diameter) x 415mm
    Stroke 15 mm
    Speed Range 550-1600SPM (Variable Speed)

    Dimensions

    Product Length 320 mm
    Product Width 380 mm
    Product Height 630 mm
    Product Weight (Net Weight) 14 kg

Additional information

Weight 14 kg
Dimensions 70 × 40 × 40 cm
