Woodfast Planer/Thicknesser 310mm 12″ 3HP 240V With Spiral Cutter Block

$3,999.00

The Woodfast Planer/Thicknesser 310mm combination planer and thicknesser has a large 310x255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planing to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshops.

2 in stock

Description

Woodfast Planer/Thicknesser 310mm 12″ 3HP 240V With Spiral Cutter Block

Features

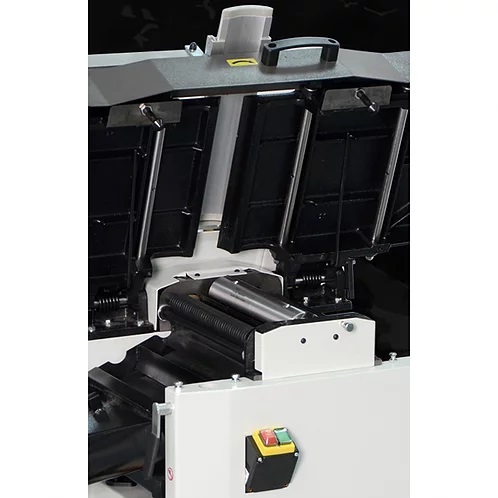

  • Dual opening of the table in one simple operation to change from planing to thicknessing
  • Cast iron jointer tables, precision ground for optimal results
  • Feed can be switched off
  • Siko depth of cut gauge

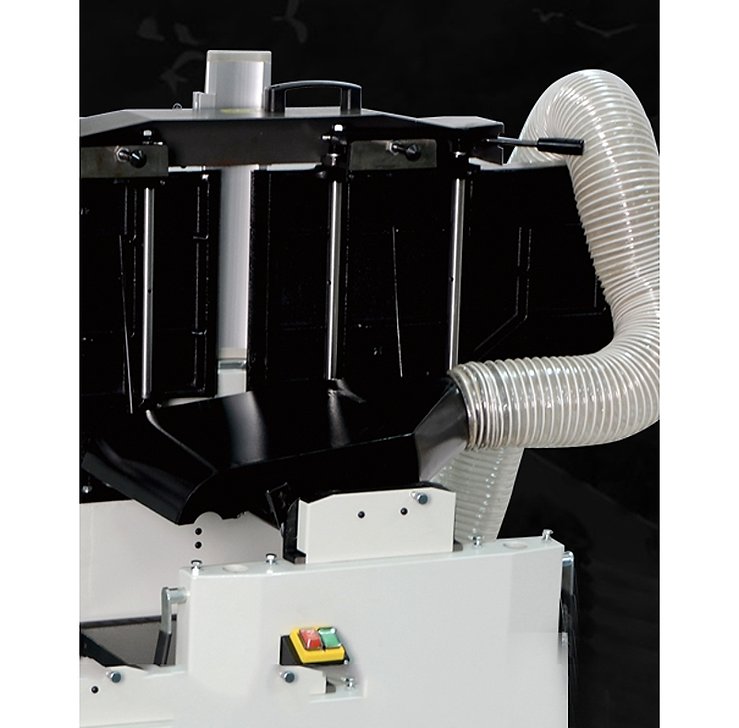

  • 100mm dust port
  • Adjustable European styled cutterhead guard

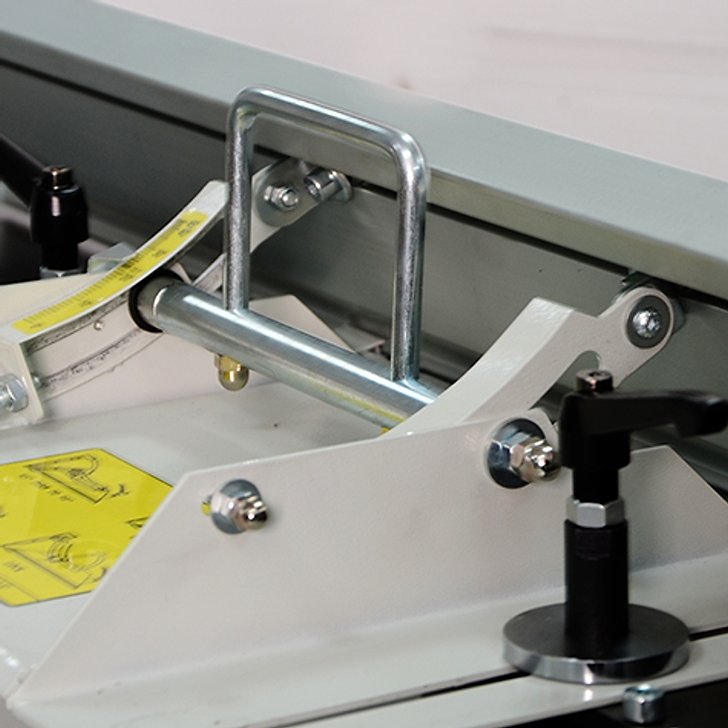

  • Sturdy fence with twin quick action fixings
  • Fence tilts 90˚ – 45˚
  • Standard—3 straight blades

Specifications

  • Length of jointer table: 1400mm
  • Cutterhead diameter: 70mm
  • Cutterhead speed: 5500rpm
  • Length of thicknessing table: 540mm
  • Max planing width: 307mm
  • Planing thickness: 3-225mm
  • Chip removal (thicknesser): 3mm
  • Chip removal (planer): 3mm
  • Feed speed: 7 metres per minute
  • Motor: 3HP, 1PH
  • Weight: 230Kgs



Additional information

Weight 280 kg
Dimensions 1.480 × .570 × 1.130 m
