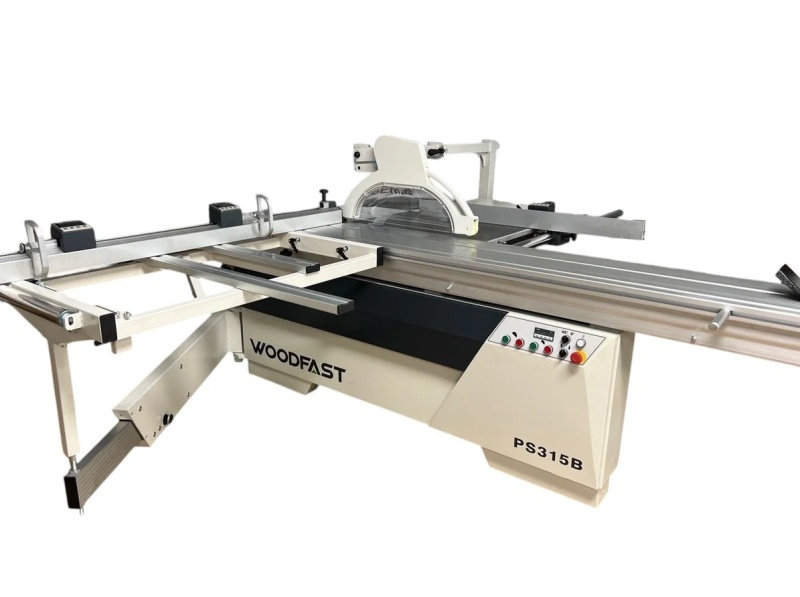

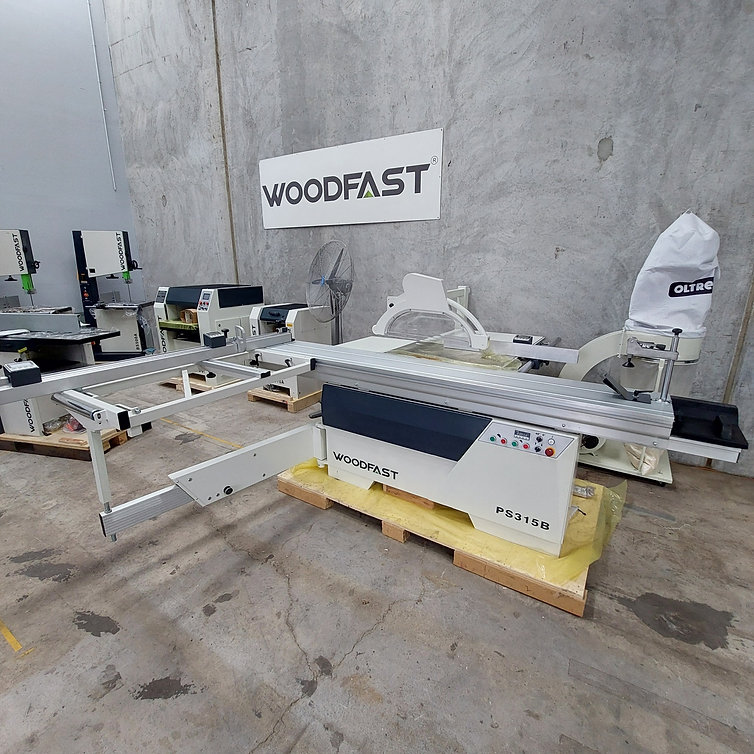

WOODFAST 315mm (12″) 2.6m Sliding Panel Saw 1ph or 3ph PS315B

    Key Features:

• The Woodfast PS315B panel saw is designed for precision, power and efficiency in a compact yet robust form. The WOODFAST 315mm (12") 2.6m Sliding Panel Saw 3HP 240V & 5.5HP 415V PS315B is ideal for workshops that demand high performance. Featuring a powerful motor and an extended 2.6m sliding table, this saw ensures accurate and fast cuts, making it perfect for woodworking professionals and serious enthusiasts alike. In fact, the WOODFAST 315mm (12") 2.6m Sliding Panel Saw 3HP 240V & 5.5HP 415V PS315B sets a new standard for panel saws in its class.Not every workshop requires a large industrial panel saw, but a fully featured, space-saving alternative can be a game-changer. The PS315B is built with a heavy-gauge steel chassis and a durable grey cast iron table, providing exceptional stability and vibration-free operation. Its real panel saw trunnion enhances accuracy, delivering a premium cutting experience that easily makes the WOODFAST 315mm (12") 2.6m Sliding Panel Saw 3HP 240V & 5.5HP 415V PS315B a top choice for Australian woodworkers.Features
  • Available in 240V (3HP) & 415V (5.5HP) to suit different workshop setups
  • Cast iron saw unit for superior support and reduced vibration
  • Ball-bearing rollers on precision-ground prismatic guides for ultra-smooth sliding and cutting

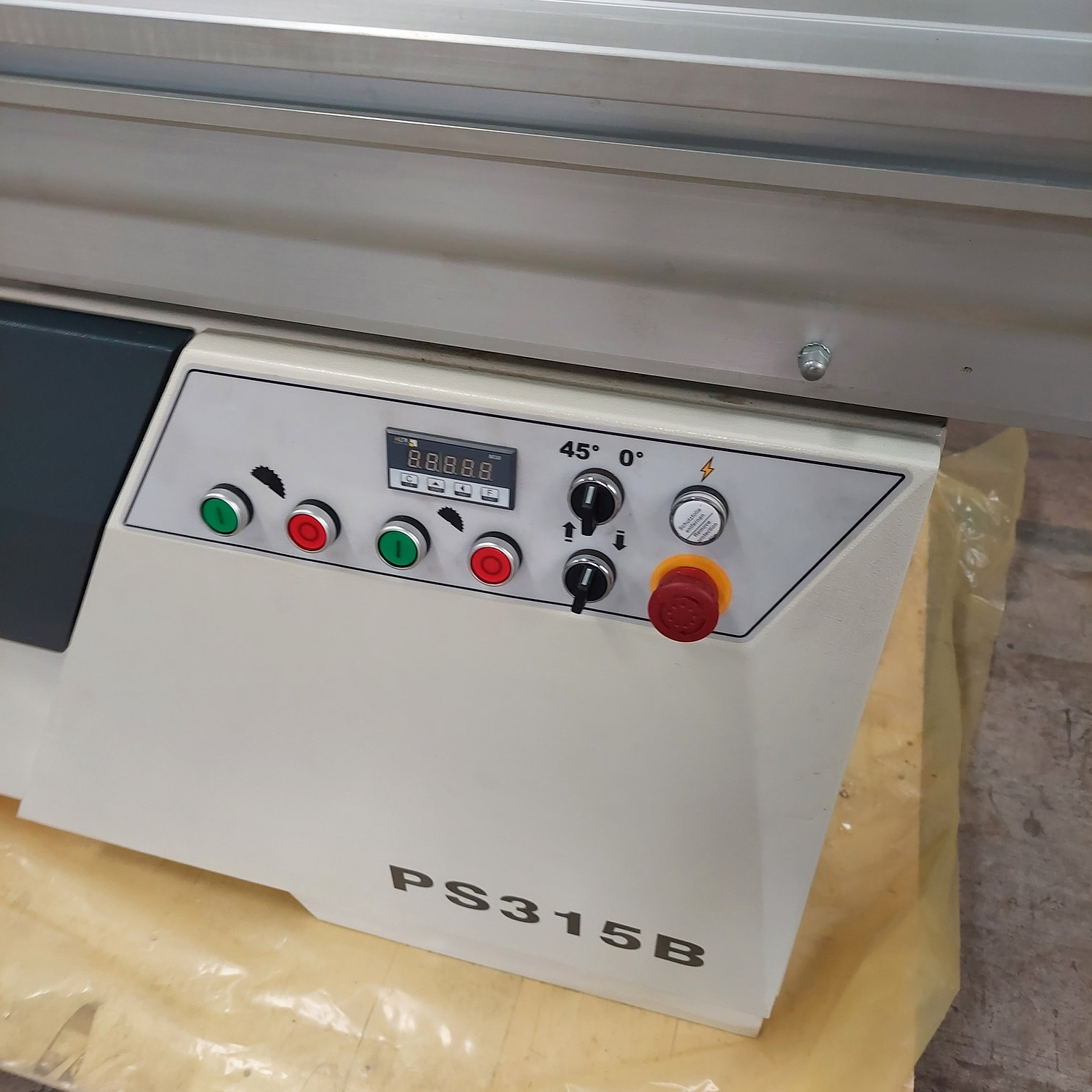

  • Electric rise & fall with tilting function (0-45°) for ease of adjustment
  • Digital tilt angle readout for increased precision
  • Digital Readouts on the Cross Cut and Rip Fences

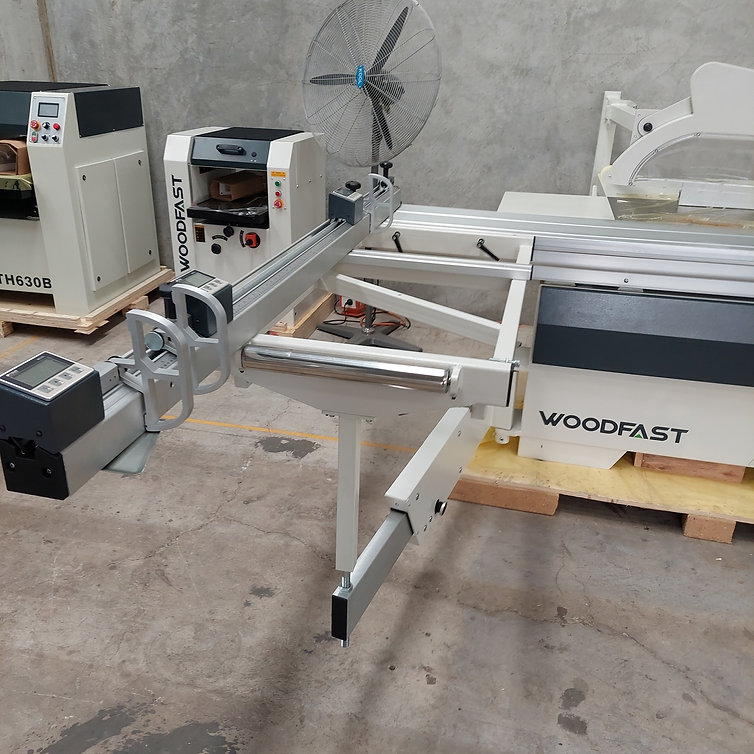

  • Large sectional cross-cut fence with stops for repeatable accuracy

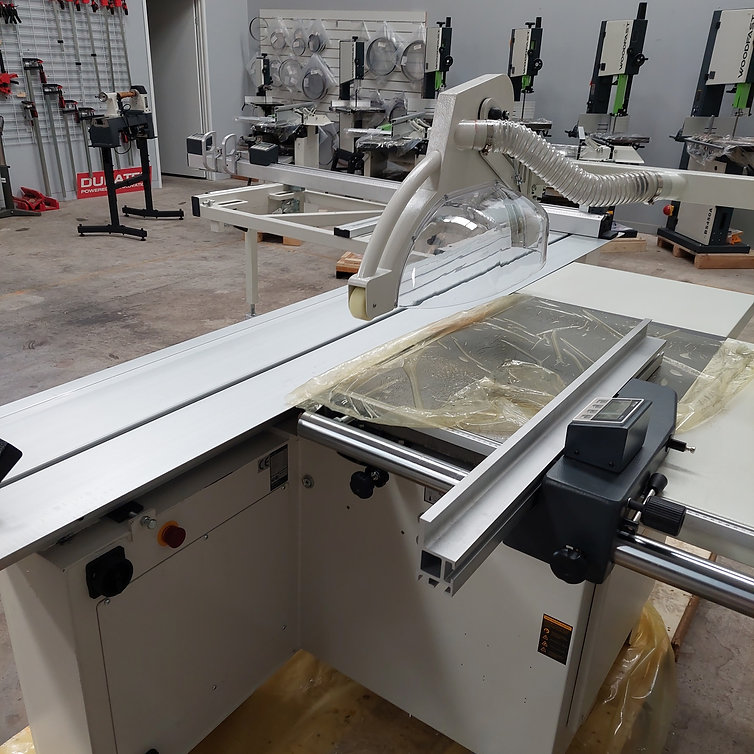

  • Solid cast iron rip fence with aluminium profile mounted to a sturdy 50mm bar



  Specifications

  • Main Motor Power: 3HP (240V) / 5.5HP (415V)
  • Main Blade Speed: 4000 RPM
  • Scoring Motor Power: 1HP
  • Scoring Blade Speed: 8000 RPM
  • Blade Tilt: 0-45°
  • Major Table Size: 800mm (530+820mm)
  • Sliding Table Size: 2600 x 312mm
  • Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
  • Maximum Cut Depth: 95mm at 90° / 67mm at 45°



  Optional Accessories

  Angled Cutting Device
  100mm Dust Hose
  ✔ Hose Clamps + Fittings
  ✔ FM Series Dust Collector



  Technical - Main

  • Power Source 240V 50Hz Single Phase or 415V Three Phase
  • Motor Power (Input) 3HP (240V) / 5.5HP (415V)
  • Cutting Capacity - Height 80mm
  • Sliding Table (Cross Cut) Size 2600mm x 375mm
  • Rip Capacity 1250mm
  • Blade (Main) - Bore Size (mm)  30mm
  • Blade (Main) - Diameter (Max.)  315mm
  • Blade (Main) - Speed  4000RPM
  • Blade (Scoring) - Diameter (Max.)   120mm
  • Blade (Scoring) - Bore Size   20mm
  • Blade (Scoring) - Speed   8000RPM
  • Blade Tilt   0° to 45°



  Dimensions

  Product Weight (Net Weight)   520kg
  Dust Hose Inlet Diameter  1 x 120mm, 1 x 80mm
  Workshop Requirements   Dust Extraction
