Description
Product Features

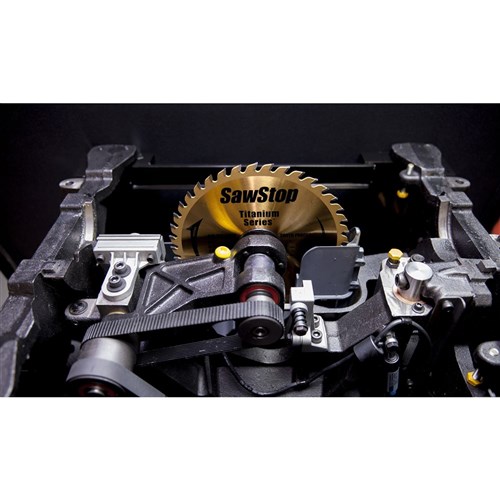

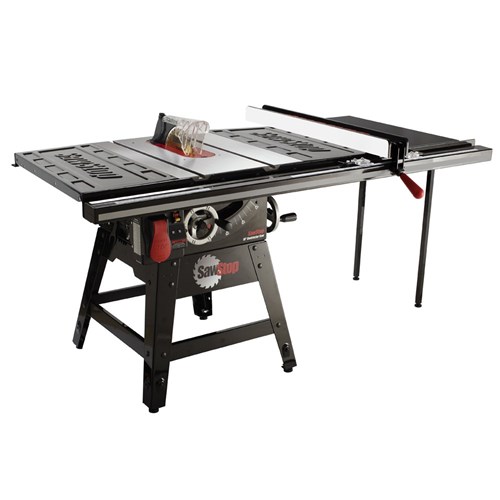

- Open cabinet with outboard motor & table-mounted trunnion
- Lightest weight, most affordable cast-iron SawStop Saw
- Uses identical Professional T-Glide Fence for 30″ & 52″ rip capacities
- Left tilt blade
included:
- 2 Cast Iron Extension Wings
- Mitre Gauge
- Dust Collection Blade Guard
- Riving Knife
- 2 Blade Wrenches
- Push Stick
- 10″ Blade
- Standard Brake Cartridge
- Owner’s Manual
- 2 Hardware Packs
- 3mm Hex Key
- 5mm Hex Key
- 8mm Hex Key
- Blade Spacing Adjustment Gauge
Product Specifications
Brand | SawStop |
Motor | 1.3kW (1.75HP) Induction, 10A plug |

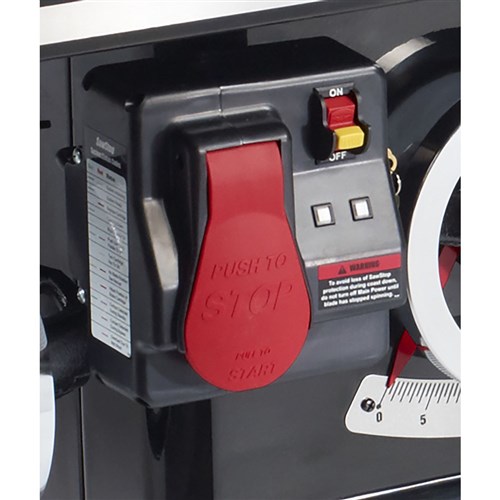

Switch Type | Special Type |
Blade Diameter | 10″ |
Arbor Diameter | 5/8″ |
Maximum Cut At 45° | 57mm |
Maximum Cut At 90° | 76mm |
Blade Guard | Clear, Tilting – Rise & Fall |
Blade Tilt | Left |
Dado Capable | 19mm Maximum |
Drive Type | Ribbed V Belt (AntiStatic) |
Dust Port | 4″ |
Maximum Rip Capacity | 927mm |
Mitre Gauge Included | Yes |
Riving Knife Style | Quick Release |
Speed | 4200 RPM |
Stand Included Or Integral | Open Stand |
Table Size | 1600mm x 686mm |
Workshop Footprint (WxDxH) | 1760mm x 1015mm |
Anti Kickback Pawls? | Yes |
Fence Style | T Glide Steel |
Warranty Period | 1 Year |
Shipping Weight | 150kg |
Nett Weight | 135Kg |
