Record Power DML305-M33 Cast Iron 6 Speed Midi Lathe

$699.99

Record Power





The DML305 cast iron lathe represents a new benchmark in high quality midi lathes and is perfect for the user with minimal space or as a second lathe for demonstrations and shows. The bed is made from finely ground cast iron for weight and rigidity and fitted with cam locking tool rests that clamp easily and solidly to the bed with one handed operation. The machine has 393 mm between centres as standard and an optional bed extension can be added to increase this capacity.

The swing over the bed is 305 mm and the motor is 1/2 hp, providing plenty of power for the capacities of these machines. The spindle has an M33 thread to ensure a wide range of Record Power accessories can be fitted.

In stock (can be backordered)

Description

Record Power DML305-M33 Cast Iron 6 Speed Midi Lathe

This lathe is extremely well finished with polished metal handles, spindle locks with indexing and graduated markings on the tailstock barrels. Many of these features are normally only found on expensive professional lathes

Features

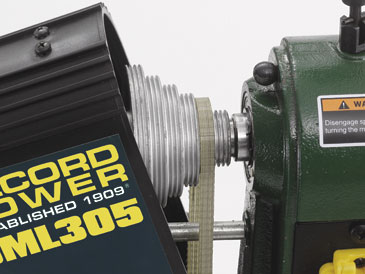

Headstock

Easily accessible pulley system makes changing speed an easy task and the Headstock also features indexing.

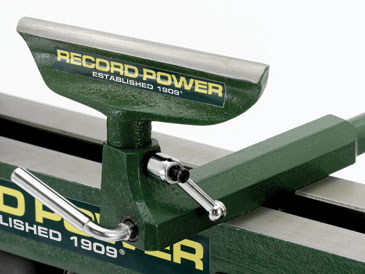

Cam Lock

Features cam lock toolrest and tailstock.

Capacities

Large capacities between centres can be accommodated with optional bed extensions.

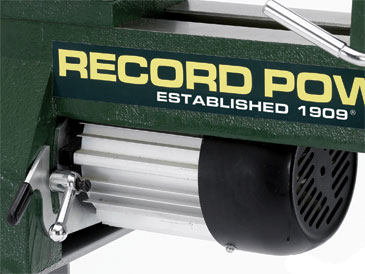

Motor

The 1/2 hp motor give quiet and smooth operation and have plenty of power for the capacities of  this machine.

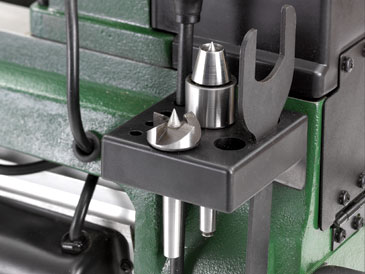

Tool Caddy

A handy tool caddy is supplied as standard.

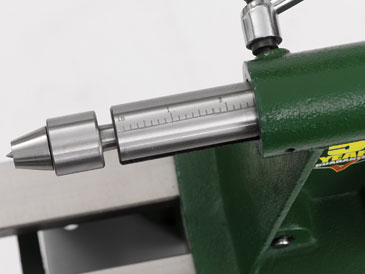

Accuracy

The spindle lock features graduated markings on the tailstock barrel.

Specifications

Maximum bowl diameter:305 mm (12″)

Maximum between centres:393 mm (15″)

Maximum swing over bed:305 mm (12″)

Spindle speeds:350, 670, 1025, 1500, 2225 & 3250 rpm

Motor input 0.52 kW

Thread:M33 x 3.5

Taper:2 Morse Taper

Weight:39 kg

Size:W870 x D200 x H455 mm

Additional information

Weight 45 kg
Dimensions 90 × 20 × 60 cm
