Sale!

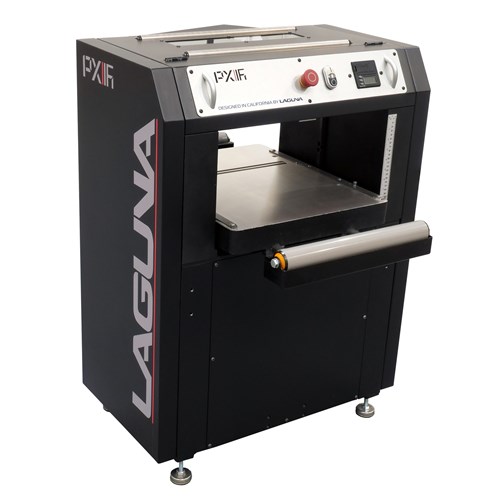

Laguna Planer 16″ ShearTec II

$4,988.00 $4,750.00

LAGUNA_LOGO-cropped

400mm (16”) width of cut
Depth of cut digital readout with tape backup

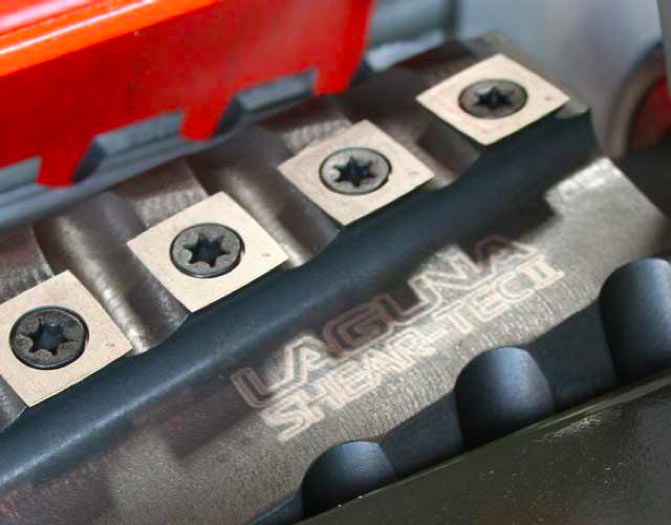

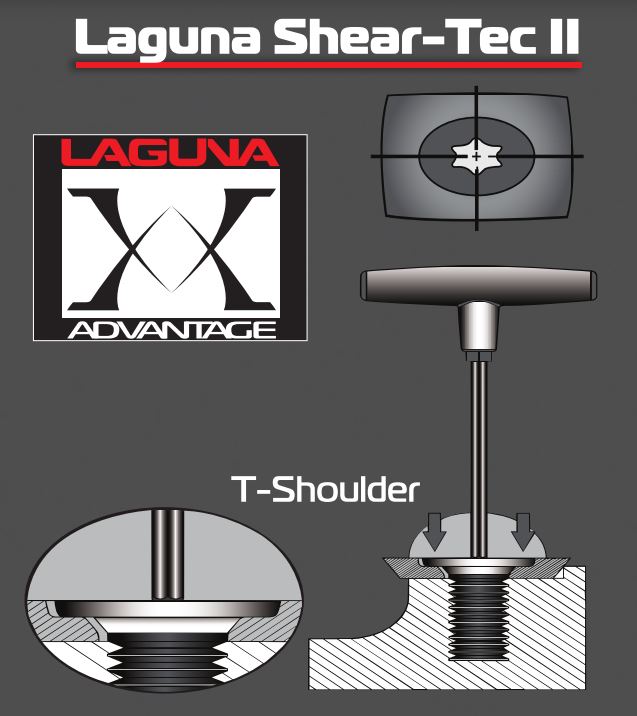

ShearTec ll helical cutter head
Mechanical adjustment of bed
Mechanical adjustment of bed rollers
2 cast iron extension tables
2 polished steel rollers for material return
Internal caster system for mobilityiced machines.

SKU: LT*THICK-16/1 Category: Tags: , ,

Description

Product Features

  • Depth of cut digital readout with tape backup
  • ShearTec ll helical cutter head
  • Mechanical adjustment of bed
  • Mechanical adjustment of bed rollers
  • 2 cast iron extension tables
  • 2 polished steel rollers for material return
  • Internal caster system for mobility



DOWNLOAD PRODUCT FLYER

Technical Information

  • Width of cut: 400mm (16″)
  • Motor: 3 HP,1 PH
  • Table: 1400 X 400mm including 2 x extensions
  • 6 Rows of 18 helical knives = 108 total
  • 2 Feed Speeds: 4.8 & 6.0 metres / min
  • Dust-hood: 100mm
  • Max removal: 3mm (1/8”) per pass
  • Min-Max: 4.8—153mm (3/16” – 6”)
  • Dimensions: 875 x 1400 x 1125mm high
  • Net Weight: 258 kg
  • Gross Weight: 304 kg

Additional information

Weight 304 kg
