F3 Table saw
2021 UPDATE: Now includes a Digital Angle Readout and Dual Hairline Magnifier on the Fence, for High/Low cutting accuracy
A classic US style cabinet mounted table saw which will not only impress, but exceed your expectations.

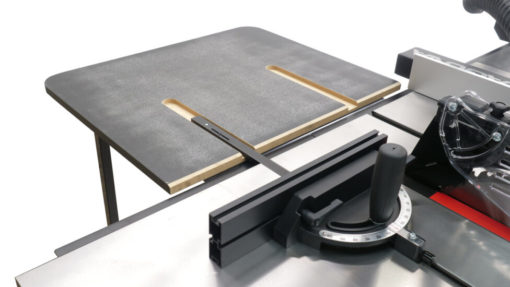

The first thing that will catch your eye is the large precision ground mirror finished tabletop which allows excellent work piece support. This is complemented by mirror ground cast iron wings, a table/fence extension wing insert and an outfeed table – supplied as standard features!

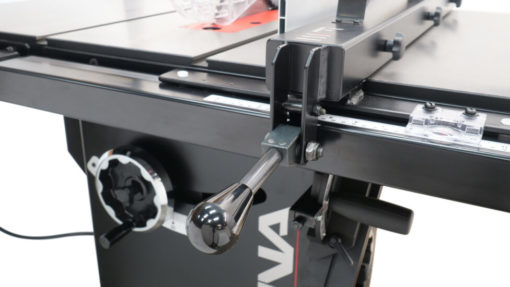

The classic ‘T Style’ rip fence sits atop heavy duty powder coated steel rails, is exceptionally smooth moving and rock solid when locked and a pleasure to use with an easy cam lock handle that will guarantee accurate cuts. The Hi-Lo fence design allows narrow cuts even in thin material, while the measuring scale is marked in both metric and inches for convenience.
The substantial professional ‘zero clearance’ throat plate is suitable for all blade angles and is supplied as standard. It has fine adjustment grub screws to precisely line up to the table surface and is also easy to remove.

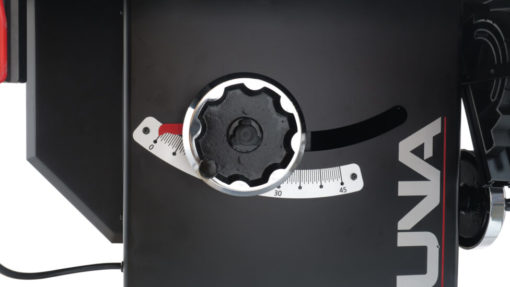

The cast polished hand wheels control the arbor, so that the rise, fall and tilt give a lovely buttery smooth blade movement, courtesy of a 2:1 ratio gear box.

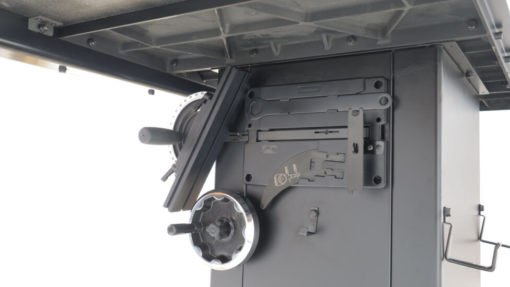

The heart of the saw is the powerful motor which is mounted onto the powder coated one-piece cabinet base via solid cast iron trunnions. This mounting method ensures the table top is left unstressed by the motor weight and ensures a perfectly flat working surface.

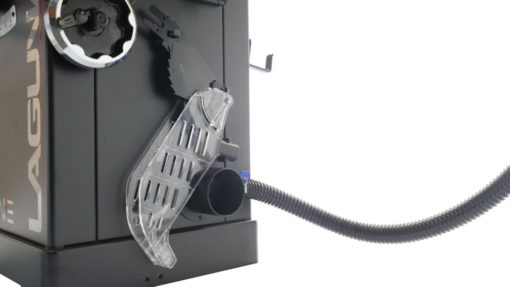

Dust extraction is a crucial part of any machine for operator safety and machine longevity. A crown guard hose in conjunction with the interior blade shroud are collected from a single side port.

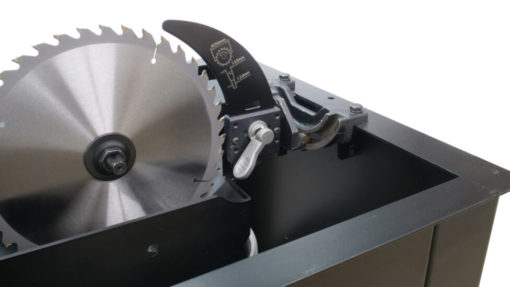

The standard equipment also includes: A wheel kit integrated within the base; on-board storage points for all the accessories; mitre fence that is hyper accurate when travelling in the T slots; 40 tooth TCT sawblade; quick release riving knife with anti-kickback pawls as well as a separate low profile riving knife and a 1.8m power cable with 15amp plug.
The ultimate heavy-duty, powerful traditional cabinet saw.
Available on backorder
Laguna 2021 Updated Fusion 3 F3 Table Saw
- 2021 Update: New Digital Readout now standard!
- 2021 Update: Dual Hairline Indicator for High/Low Fence
- Powerful 3HP motor (requires 15amp plug outlet)
- 36" Heavy Duty Steel Rails
- Hi/Lo T-Glide Style Fence Standard
- 254mm (10") Blade Diameter
- Zero Clearance Insert standard
- In-built Mobility/Castors
- 40 Tooth TCT Combination Blade included
- Dado compatible (to 3/4")
Motor 2200w (3hp) 15 amp plug outlet required Blade Diameter 254mm (10") Arbor Diameter 15.875mm (5/8") Blade Tilt 0-45Â° Left, 3Â° Right Dado Capable Yes to 3/4" (19mm) Dust Port/s 1 x 100mm (4") Gross Weight 210kg Insert Zero Clearance Maximum Rip Capacity 910mm (36") Right, 430mm (17") Left Workshop Footprint (WxDxH) 1663mm x 1652mm x 1081mm Fence Style Hi / Lo (80mm / 10mm) Shipping 1450 x 760 x 1090 mm Nett Weight 175kg Mitre Track (2x) 19.05mm x 9.5mm (3/4" x 3/8") Working Height 887mm (35")
|Dimensions||80 × 120 × 110 cm|
