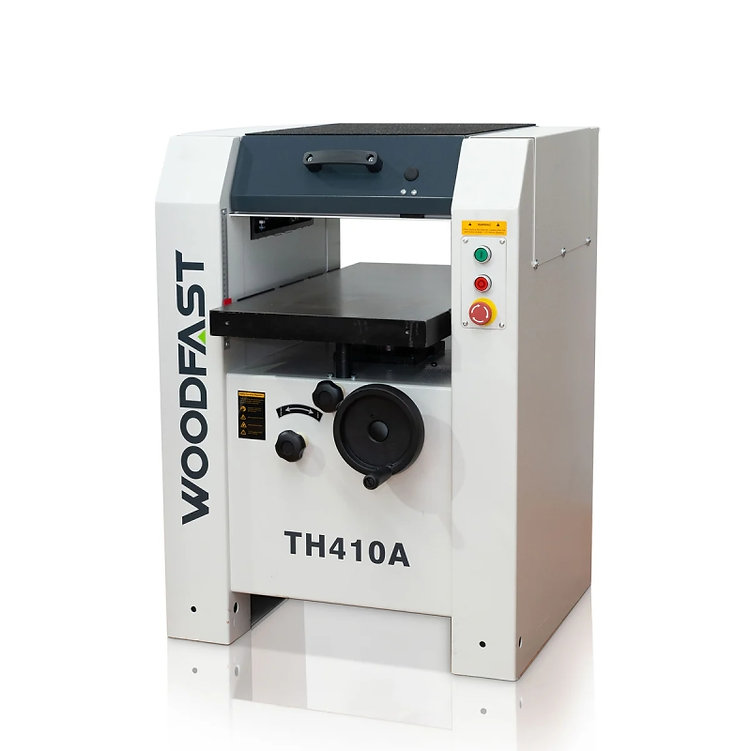

WOODFAST TH410A 16″ THICKNESSER 4hp 1ph or 5.5hp 3ph
$5,799.00
WOODFAST TH410A 16″ THICKNESSER 4hp 1ph or 5.5hp 3ph
This is a brute of a thicknesser, featuring 4hp 15amp 1ph or 5.5hp 3ph of power, driving a massive 97mm cutterhead with helical carbide knives for the smoothest finish possible.
WOODFAST TH410A 16" THICKNESSER 4hp 1ph or 5.5hp 3ph
Product Features
-

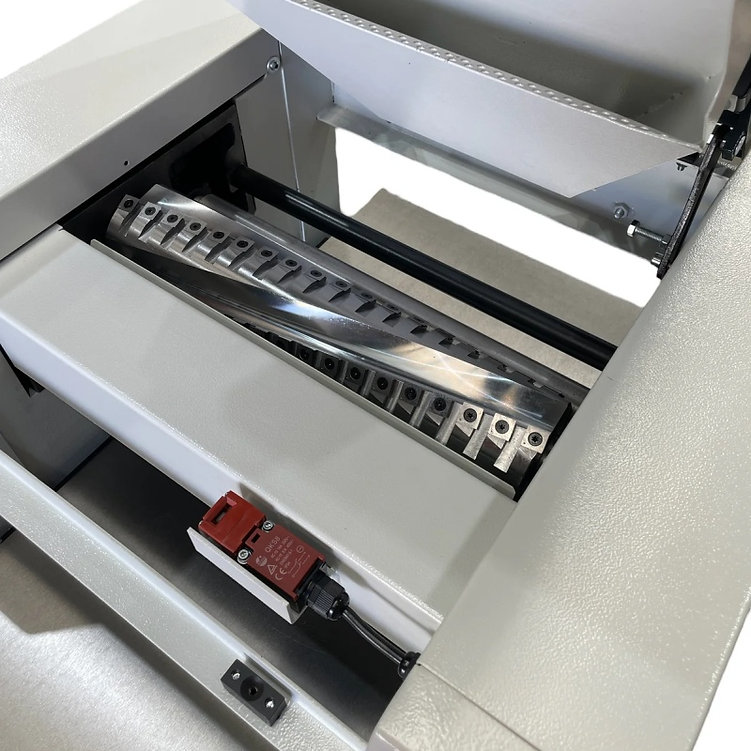

- Magnetic safety switches on all openings

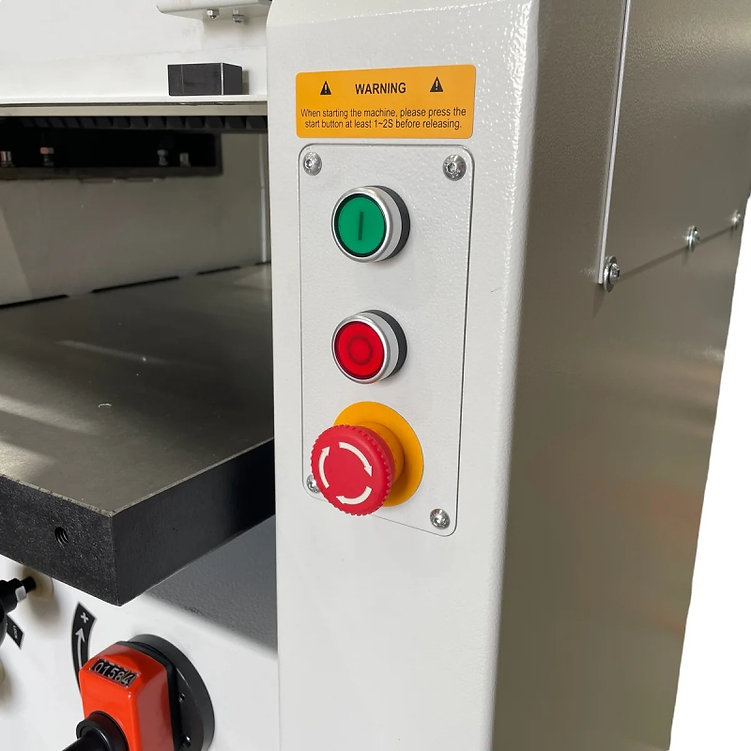

- Emergency Stop Switch
- NVR (No Volt Release) Switch

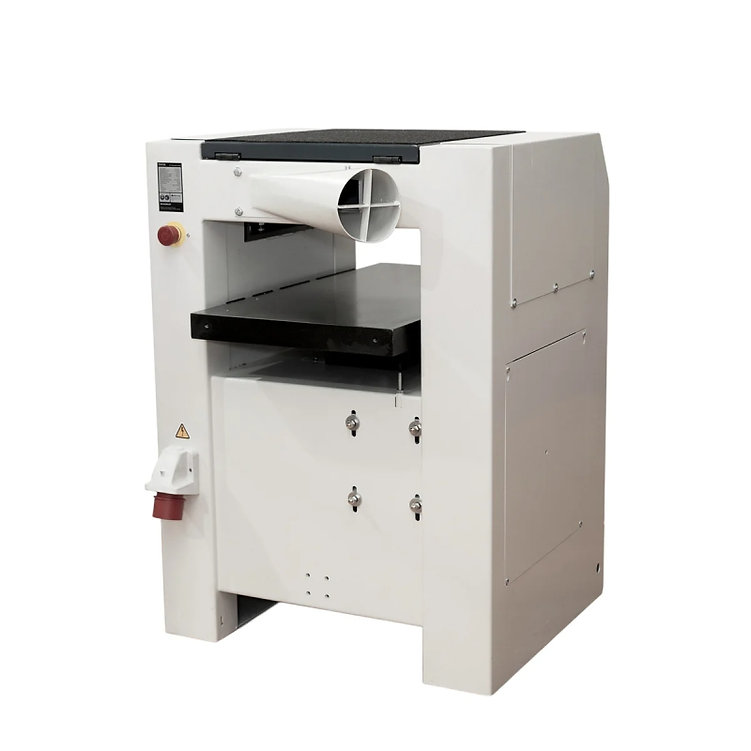

- Dust Port   1 x 120mm
Workshop (Site) Info
Electrical Connection   15Amp Plug & Lead or 3ph
Packaging + Shipping
- Shipping Length   75 cm
- Shipping Width   85 cm
- Shipping Height   114 cm
- Shipping Weight (Gross)Â Â Â 280.0 kg
- Packaging   Wooden Box / Crate with Skid
Options:-
Wheel Kit $169.00
Outfeed Extension $190.00
INCLUDES Digital Readout
Technical Information
- Motor Power (Output)Â Â Â 4HP or 5.5hp

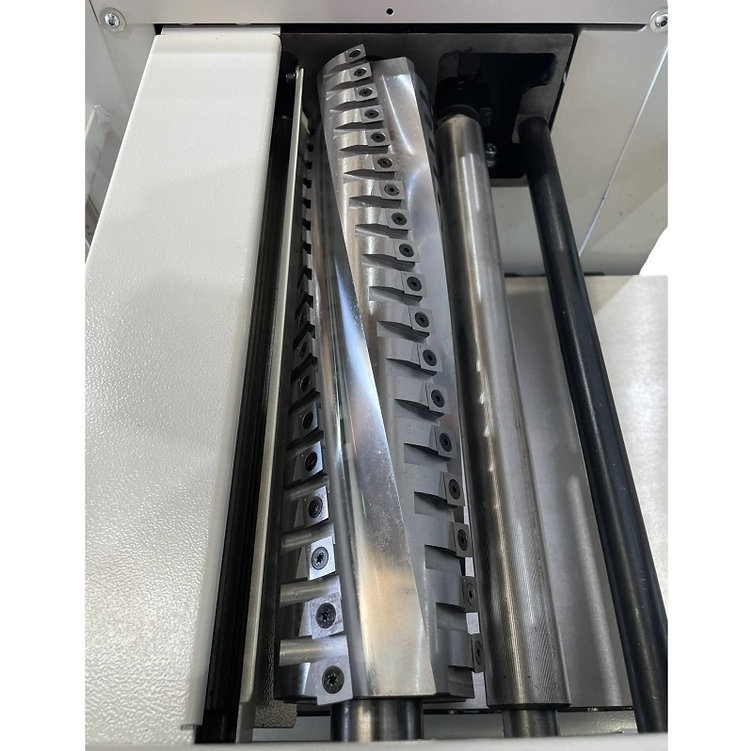

- Blade Type   Helical Head Cutter Block
- Cutting Capacity - Height   220 mm
- Feed Speed   6.5m / Min.
- Cut Max. Depth @ 0°   4 mm
- Material (Stock) - Maximum Width   405 mm
- Material (Stock) - Maximum Height   220 mm
- Table Size   750mm x 408mmTechnical - Helical Head Cutter Block
- Blade- Cutter Head Block - Blade Size   15mm x 15mm x 2.5mm (150mm Radius)
- Blade - Cutter Head Block - Diameter   97 mm
- Blade - Cutter Head Block - Rows   4
- Blade - Cutter Head Block Speed (RPM)Â Â Â 4200
- Blade - Cutter Head Block - No. of Blades / Tips   72
Additional information
| Weight | 800 kg |
|---|---|
| Dimensions | 135 × 120 × 160 cm |
| Power | 240V single Phase 15Amp, 3 Phase415V |
