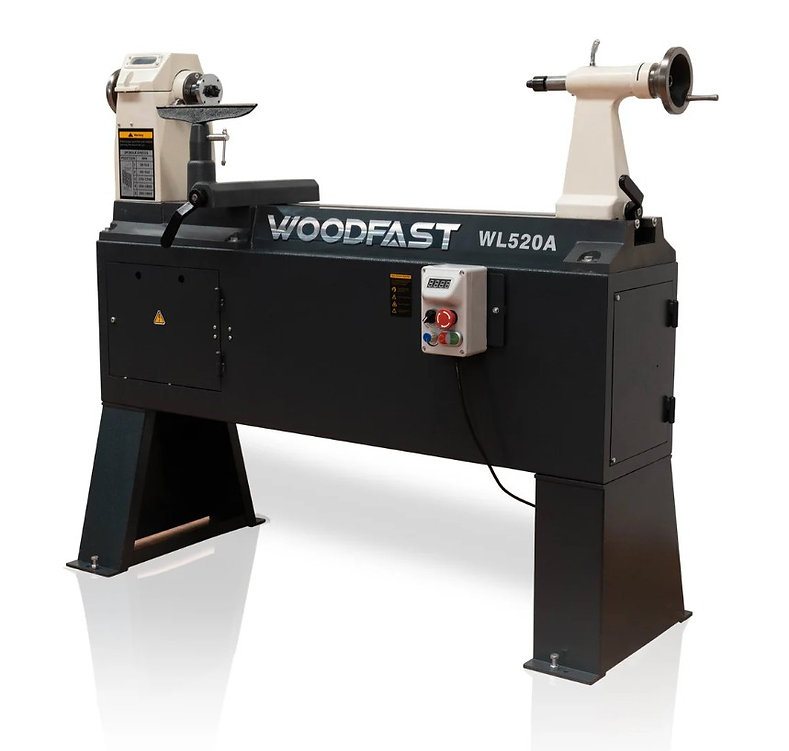

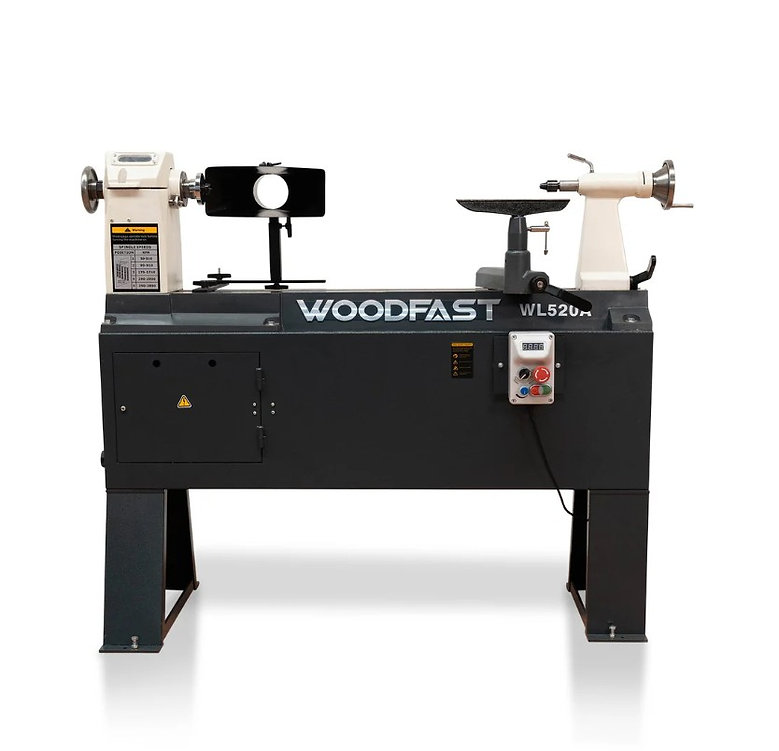

WOODFAST 510mm (20″) Swing – 2HP Heavy Duty Wood Lathe WL520A – 386mmLegs-STANDARD

The WL520A Series is a truly classic lathe and ideal for education, featuring a fixed head for outboard turning. It has been designed to offer large capacities and support for heavy work in a traditional configuration that is familiar to woodturners worldwide. Combined with modern construction and high-quality electronic control, this machine is ideal for the professional woodturner as well as the dedicated enthusiast.

The optional 311mm Lathe Leg Kit is 75mm (3") shorter from the base to suit educational or similar environments where a shorter lathe is more convenient. This can be purchased as a separate optional extra.

Cast iron features heavily in the construction of this machine, including the headstock, tailstock, and cast bed. The splayed legs give further stability, with an opposing asymmetrical design to spread the load and counteract the forces generated by this formidable lathe.

Features

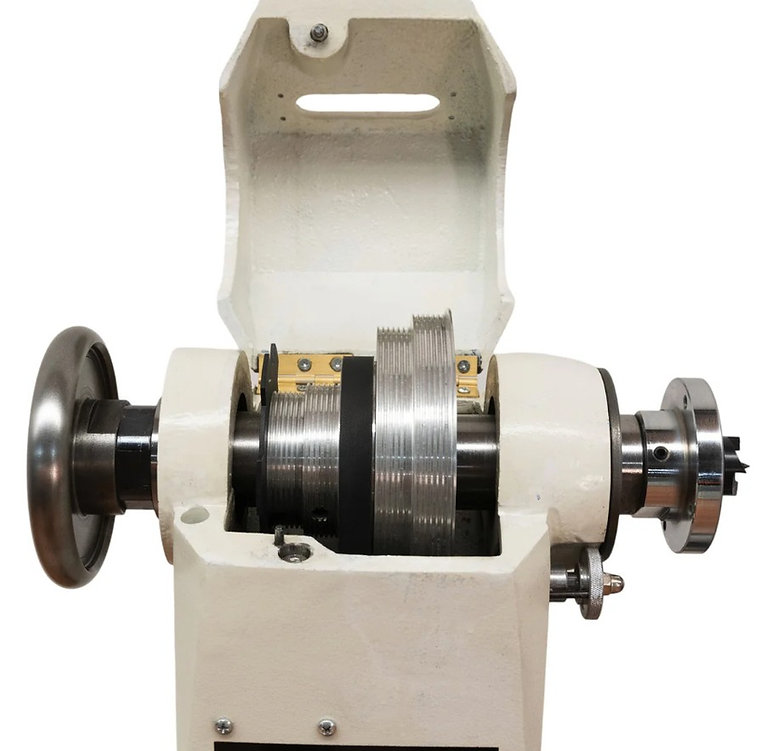

• Extra Heavy Duty Spindle With QUATRE Precision Bearing Support

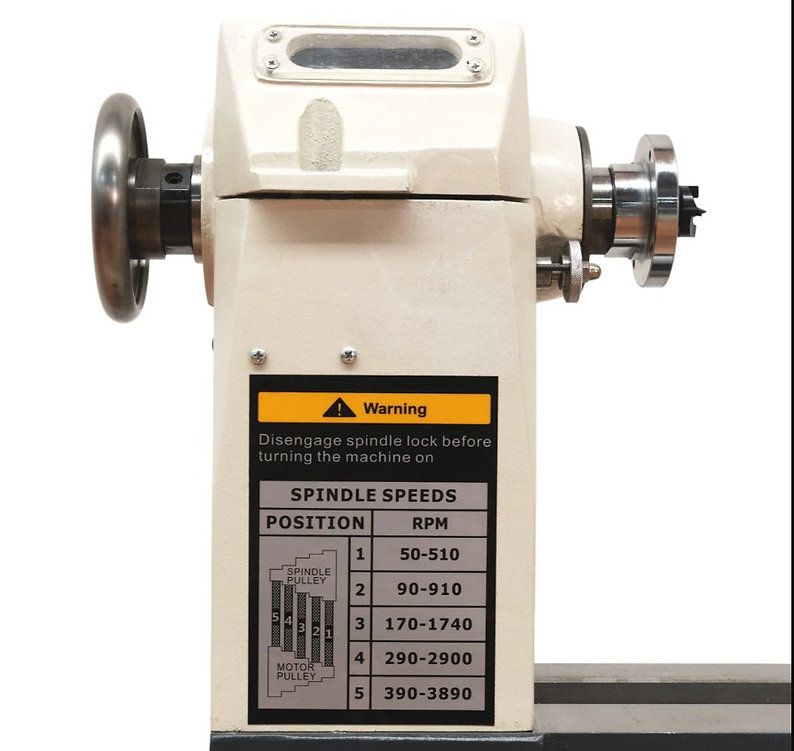

• Rock Solid Headstock Features Indexing And Hand Brake Wheel
• Easily Accessible Motor Inside The Cabinet Rather Than On The Headstock
• Electronic Variable Speed Is Achieved Using The Premium Quality European Made Schneider Inverter, The Industrial Solution To Variable Speed Control

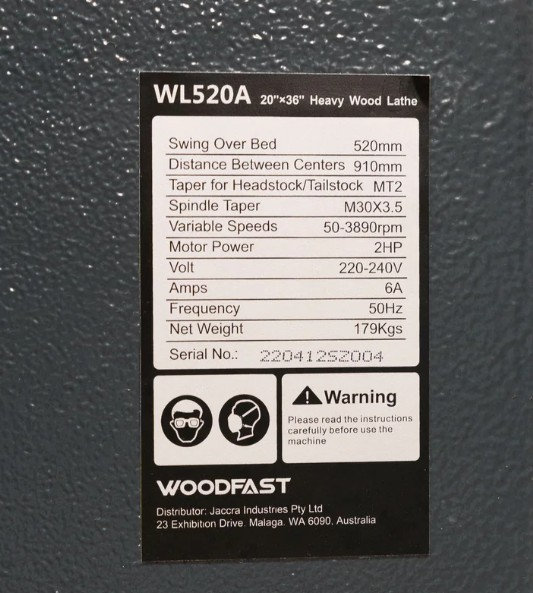

Specifications

Distance between Centres      910 mm

Swing over bed      520 mm

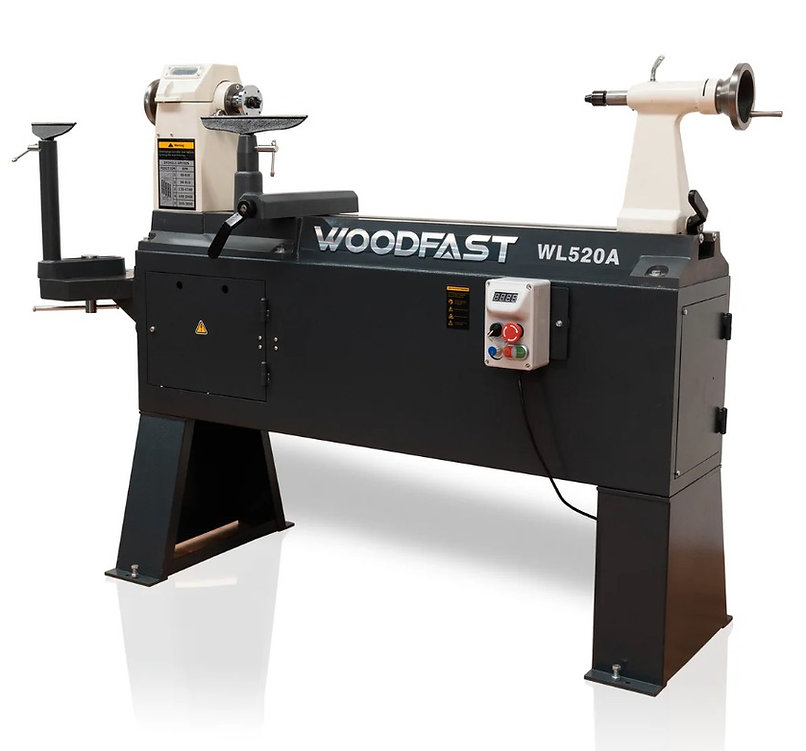

Rear Turning Capacity      760 mm

Headstock Taper      No. 2 M.Т.

Tailstock Taper      No. 2 M.Т.

Tailstock spindle travel      100 mm

Spindle speeds      50 - 3890 R.P.M.

Spindle thread Indexing      24 positions

Spindle lock      Standard

Spindle thread (Australia)       30 mm x 3.5P

Motor connect to 15amp 1ph power         1.5 kw x 3phase

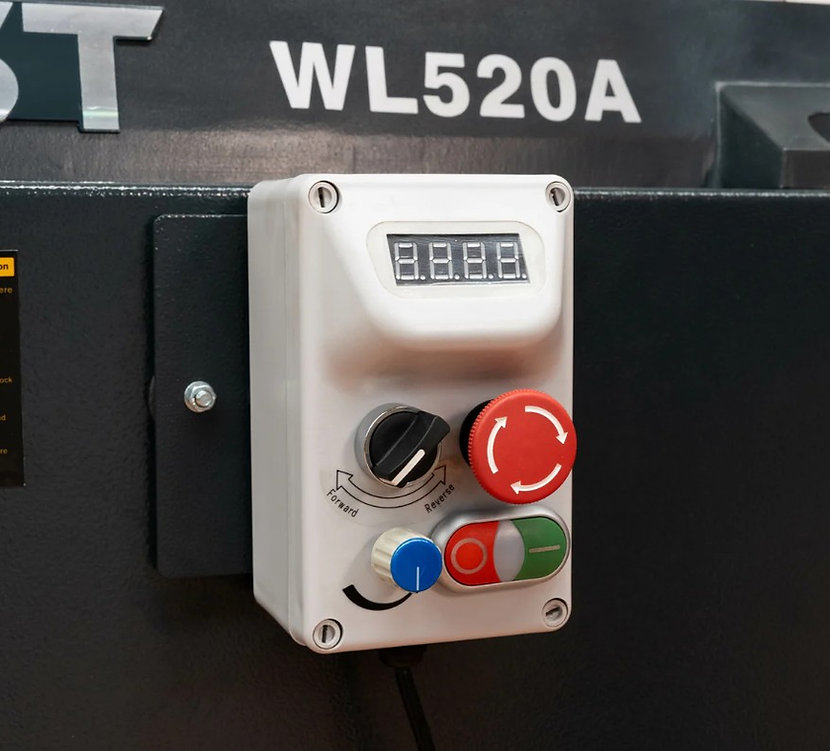

Switch Mag-Con with Remote STOP / START Station      Standard

• Standard Legs (386mm High)
• Optional Accessories
  • WL520A-311-LEG-KIT - 311mm Lathe Leg Kit
    • Ideal for Education environments or where a shorter lathe is more suitable.
