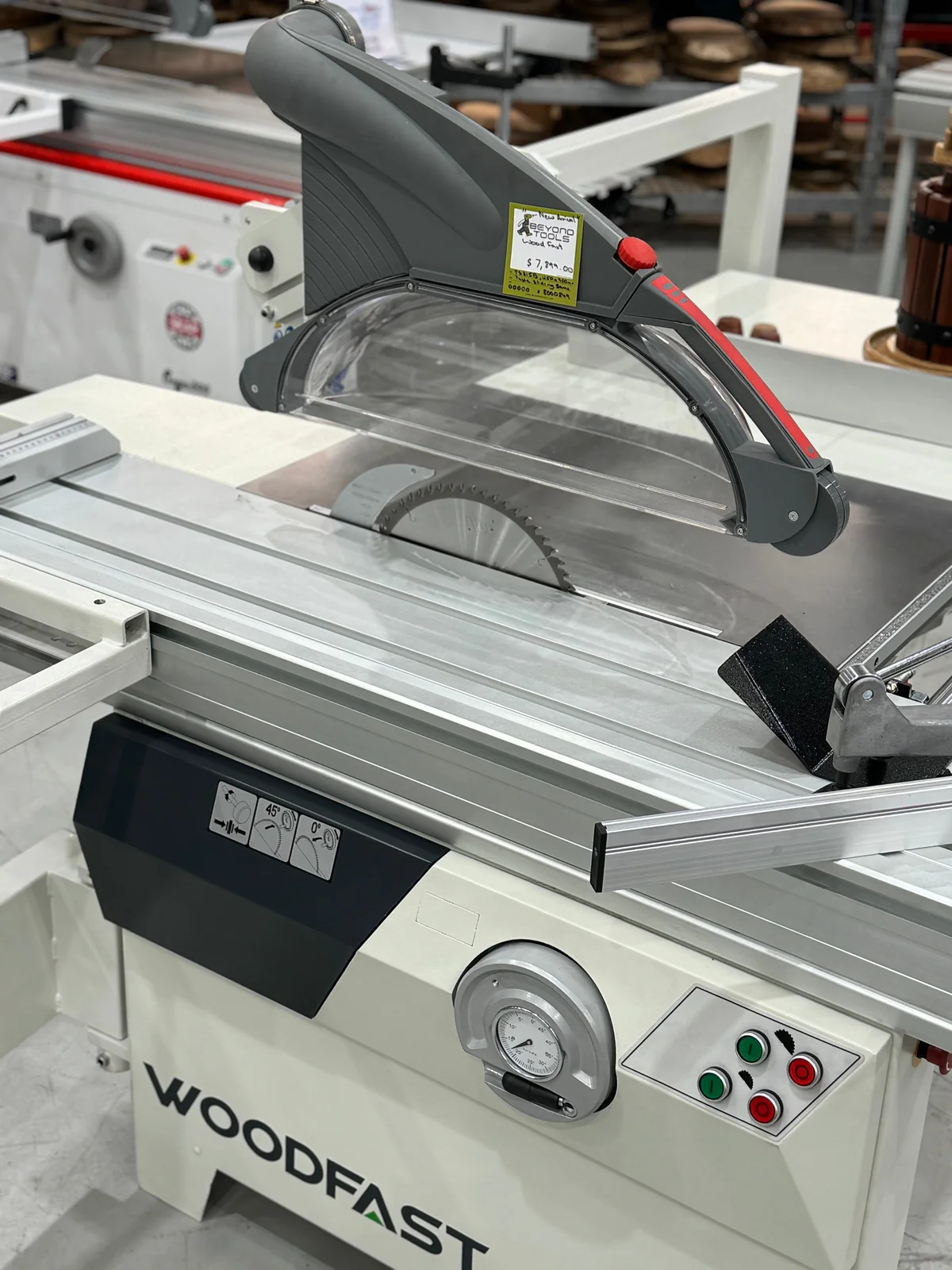

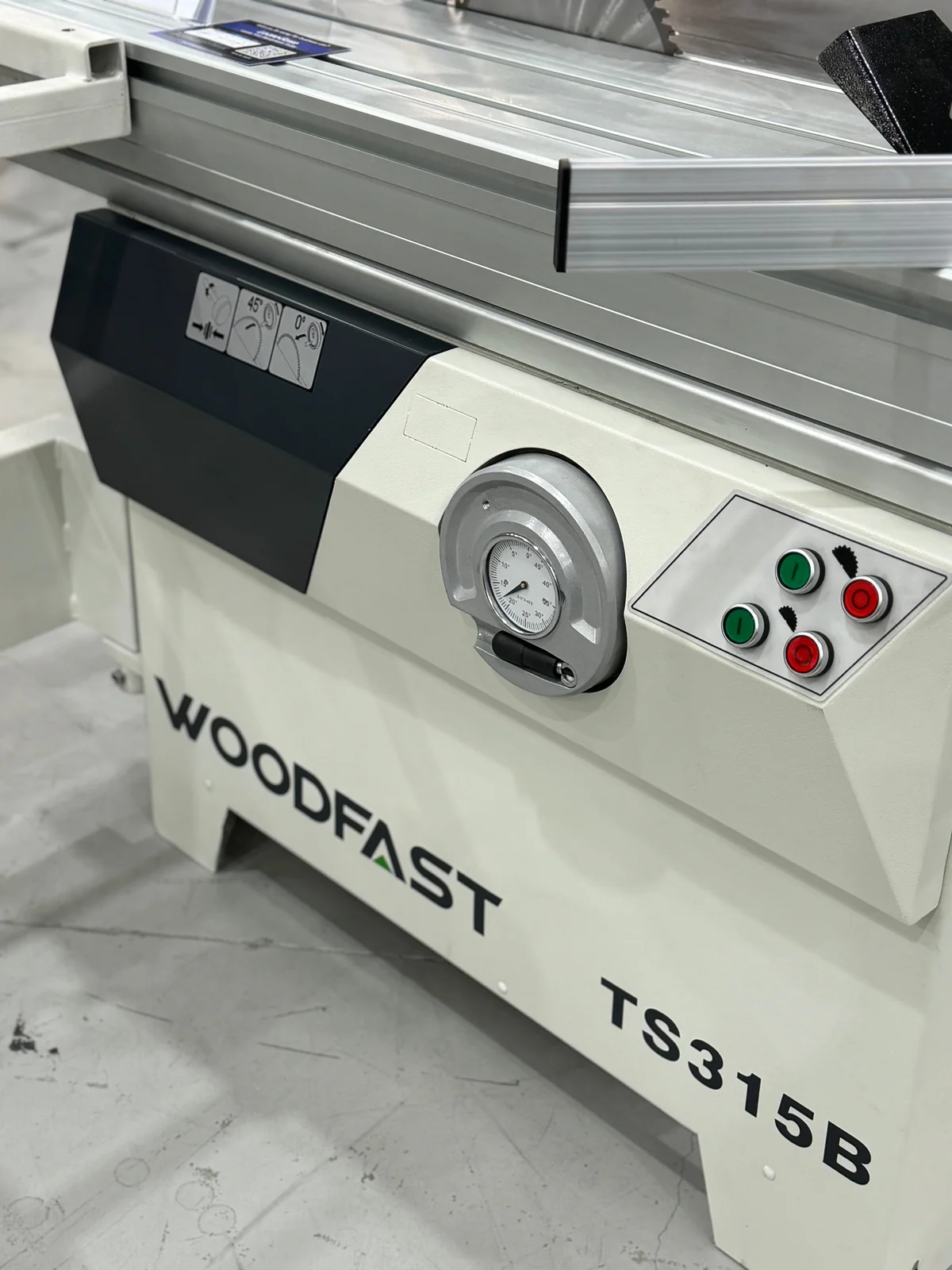

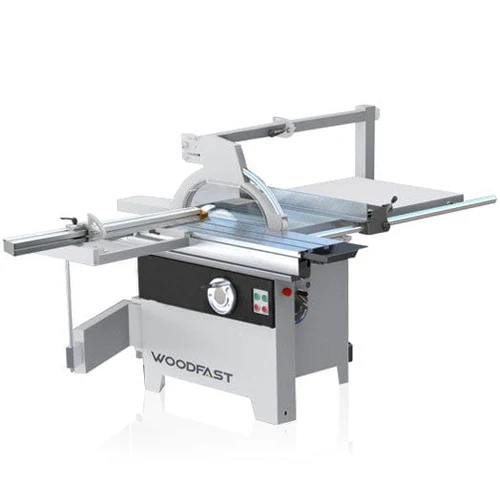

WOODFAST 315mm (12″) 3HP 1.6m Sliding Table Saw 240V TS315B

It boasts a powerful motor and a long sliding table for precise, fast cuts. Enjoy the improved accuracy and speed—perfect for all types of woodworking projects.

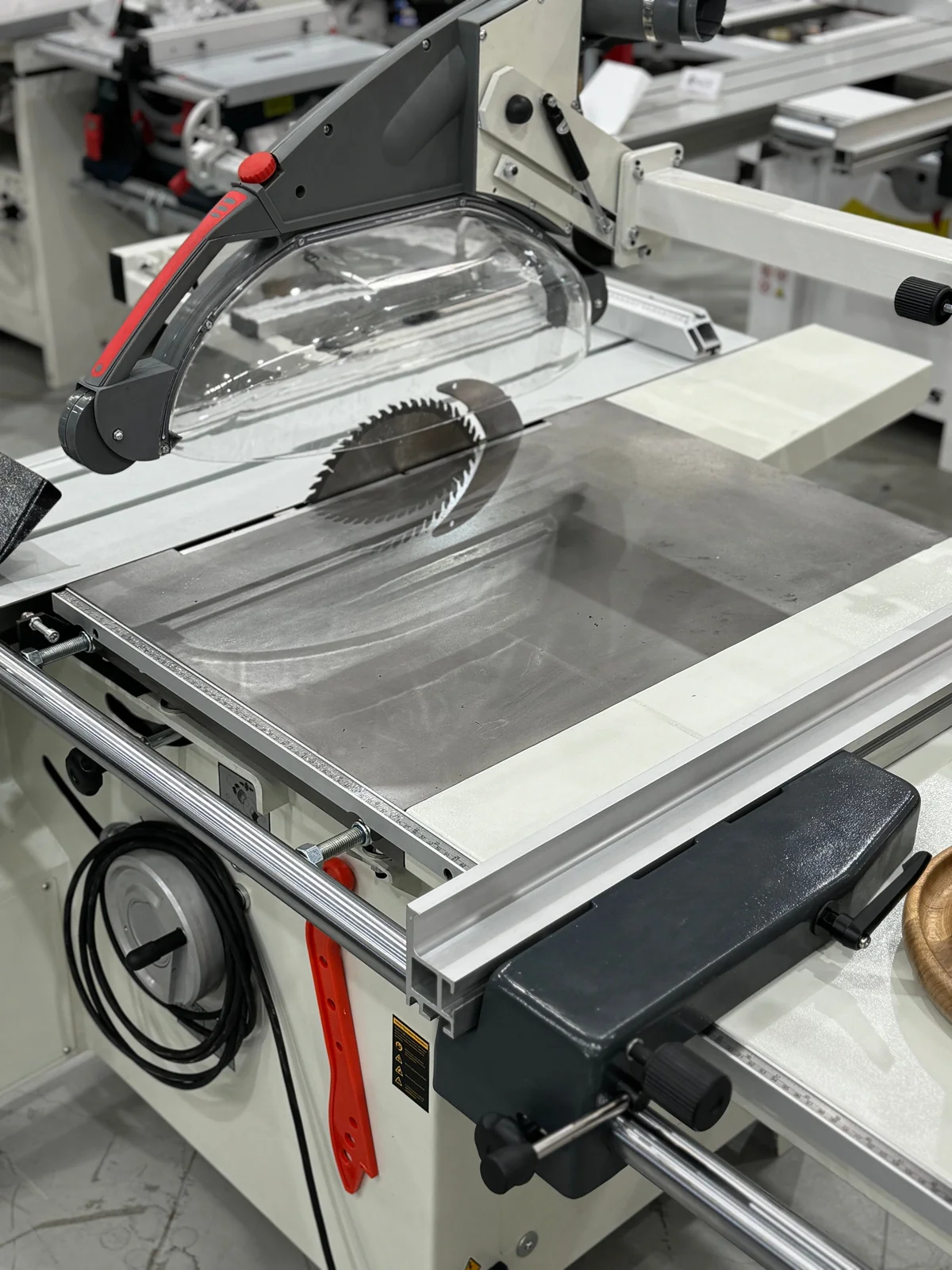

Not every workshop needs a large panel saw dominating the workspace, but a compact, fully featured saws is a tempting alternative. The TS315B is just that, having a robustly constructed chassis in a heavy gauge steel and generous grey cast iron table with real panel saw trunnion, that gives stability and vibration free running.

Features

• Cast iron saw unit provides extra support and stability for reduced vibration

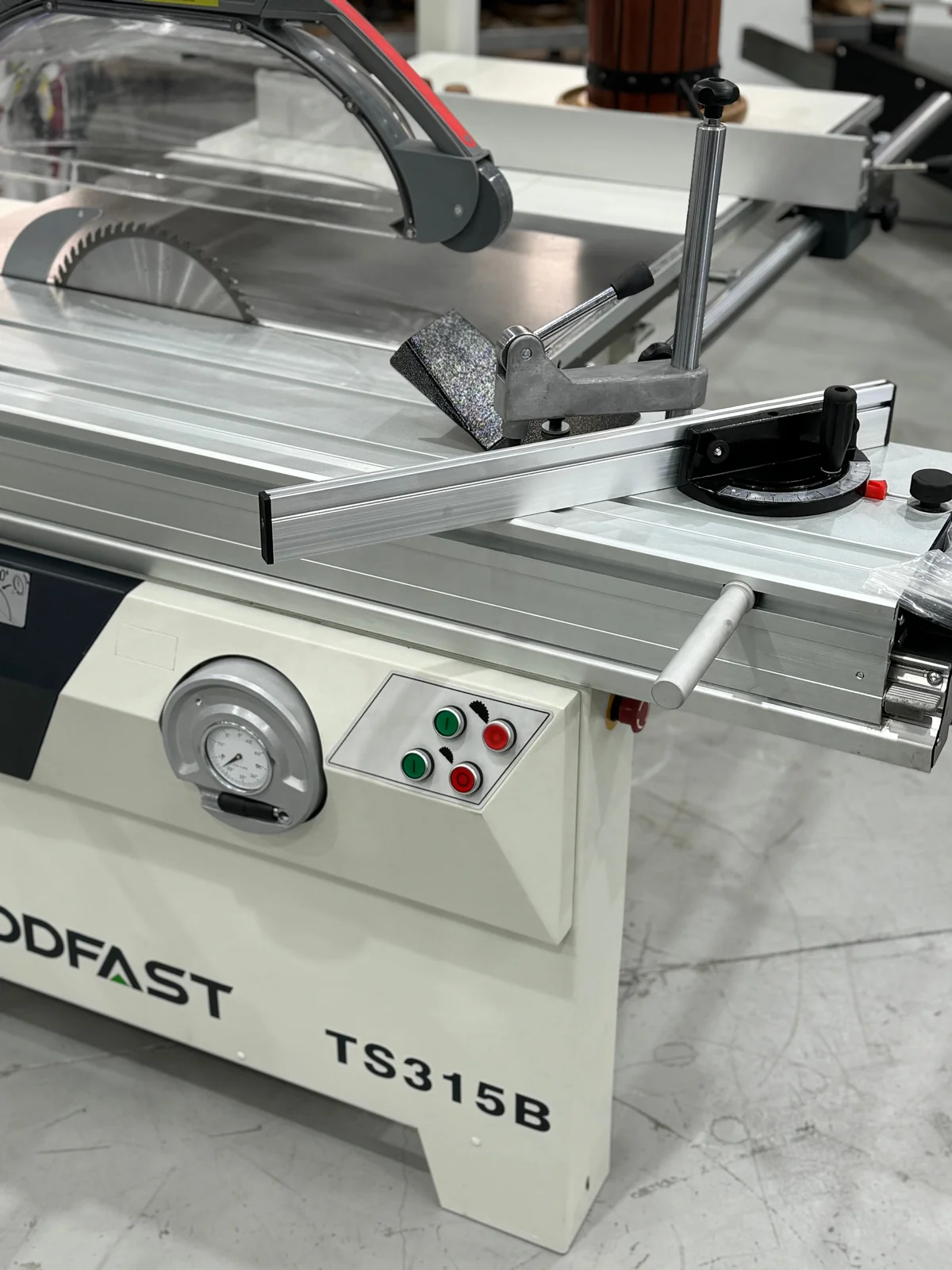

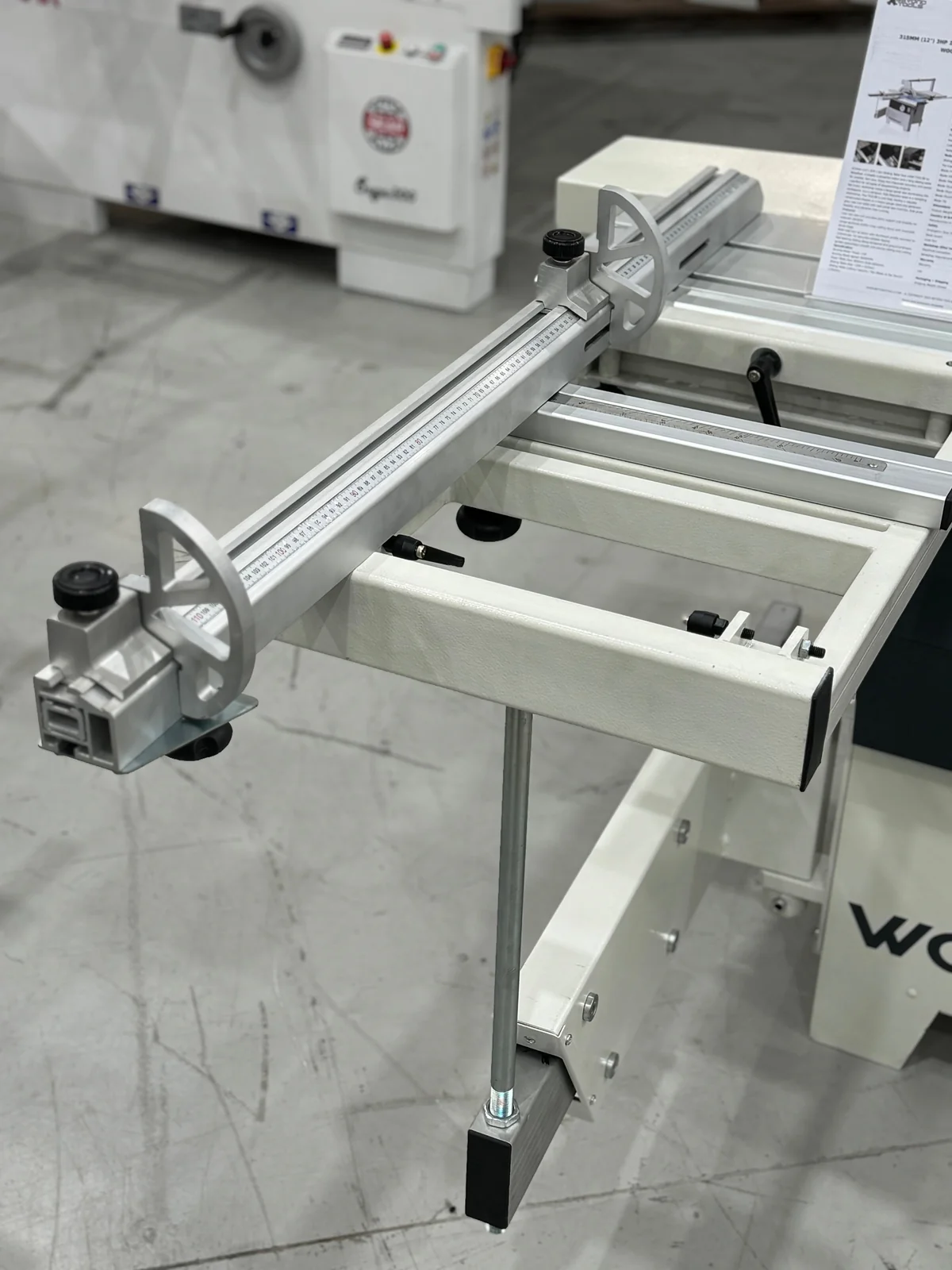

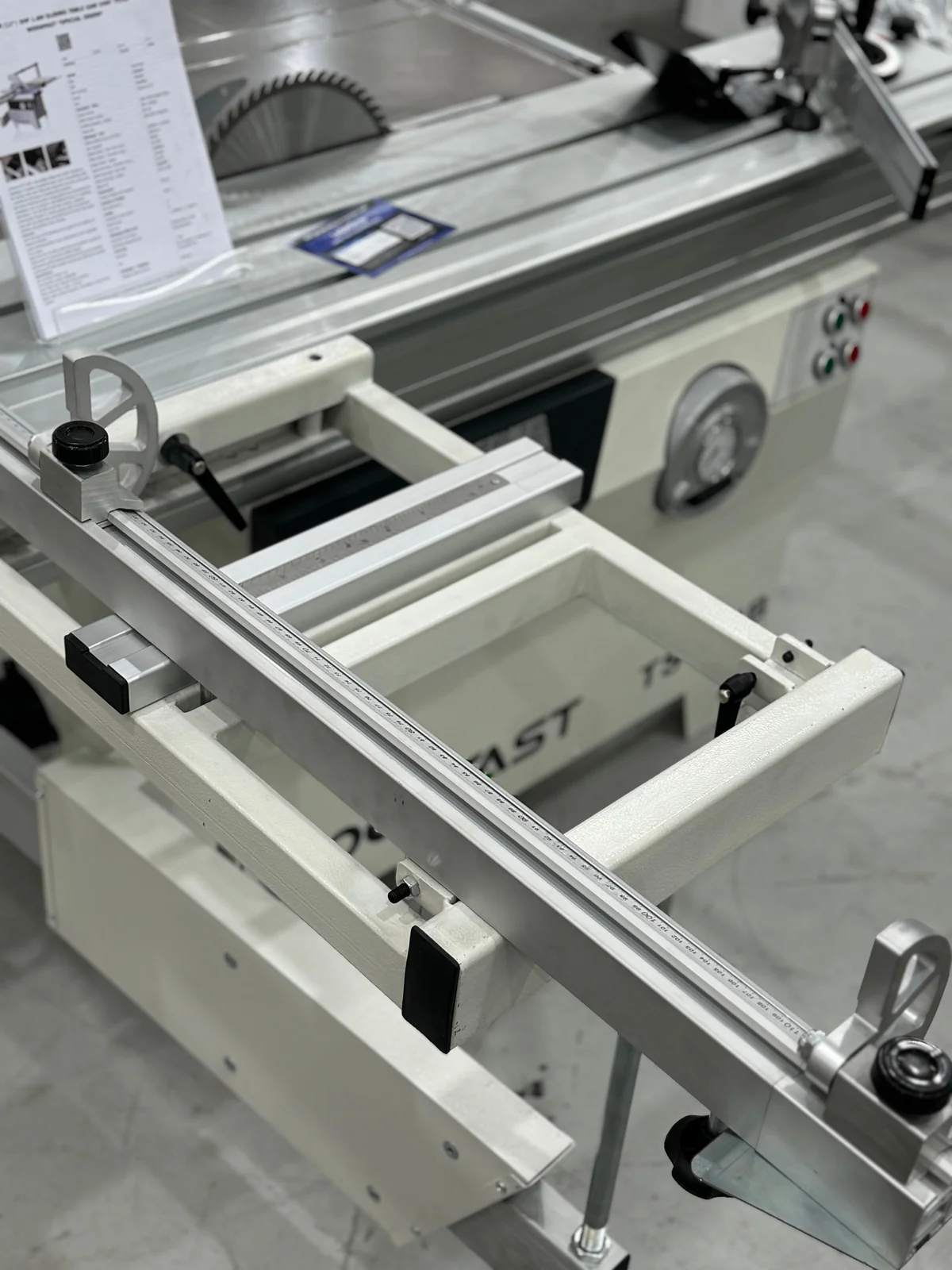

• Large sectional profile cross cutting fence with reversible fence stops
• Solid cast iron rip fence with aluminium profile mounted to 150mm bar, for accurate reliable ripping

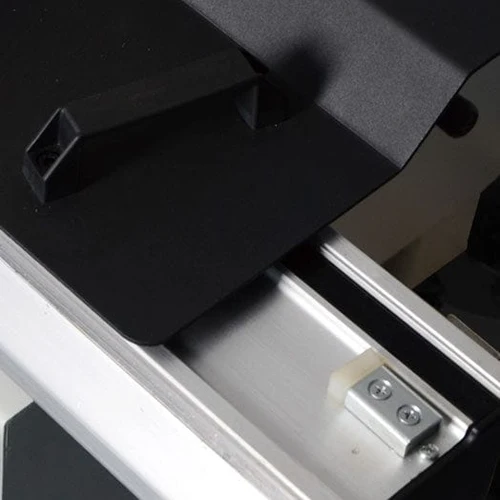

• Ball bearing sliding along tempered and ground prismatic guides guarantees smooth and precise sliding and cutting.

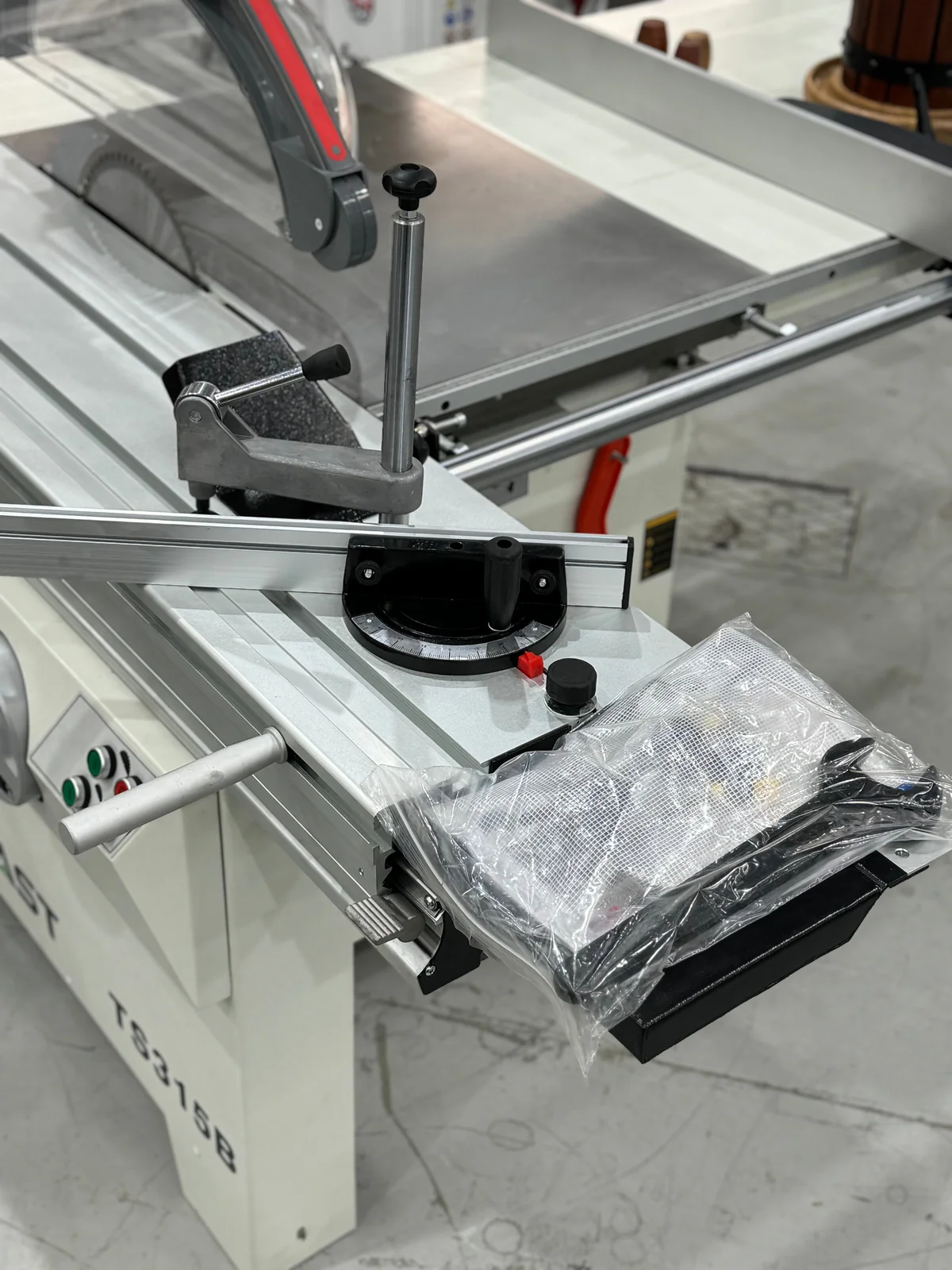

• Angled Cutting Device INCLUDED

Specification

• Main Motor Power: 3HP
• Main Blade Speed: 4000RPM
• Scoring Motor Power: 1HP
• Scoring Blade Speed: 8000RPM
• Major Table Size: 800mm (530+820mm)
• Sliding Table Size: 1600 x 312mm
• Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
• Maximum Cut Depth: 95mm at 90° / 67mm at 45°

Optional Accessories

• 100mm Dust Hose
• Hose Clamps + fittings etc
• Dust Extractor FM Series Dust Collector

Technical - Main

Power Source     240V 50Hz Single Phase

Motor Power (Input)     3HP / 2200W

Cutting Capacity - Height     80 mm

Table Size    800 (530 +820)mm

Size    315mm (12")

Sliding Table (Cross Cut) Size     1600mm x 312mm

Rip Capacity     1250 mm

Blade (Main) - Bore Size (mm)     30mm

Blade (Main) - Diameter (Max.)     315 mm

Blade (Main) - Speed     4000RPM

Blade (Scoring) - Diameter (Max.)     120 mm

Blade (Scoring) - Bore Size     20 mm

Blade (Scoring) - Speed     8000RPM

Blade Tilt    0° to 45°

Dimensions

Product Weight (Net Weight)     425 kg
