PUT*SVP145

SVP-145 Vertical Panel Saw (2200mm Crosscut x 4200mm Rip)

P.O.A.

putsch meniconi logo





This is a vertical panel saw responding to all cutting requirements and offering the best value for money. Thanks to a wide range of accessories, this machine guarantees performances that are typical of higher-category equipments and increase profitability.

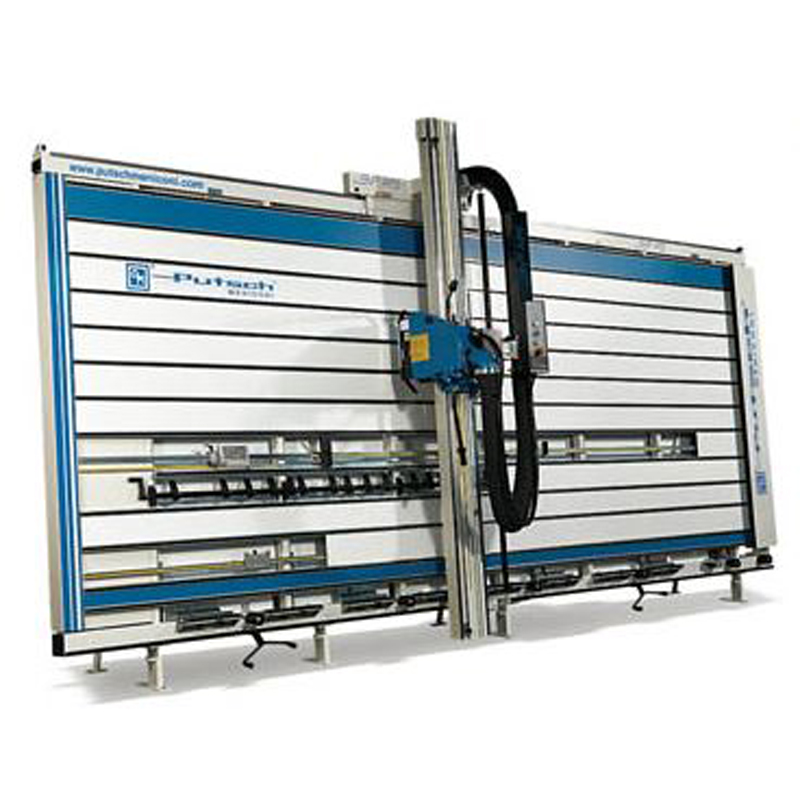

Putsch Meniconi Vertical Panel Saw 2200mm Crosscut x 4200mm Rip

PRODUCT FEATURES

  • These are vertical panel saws responding to all cutting requirements and offering the best value for money
  • Thanks to a wide range of accessories, these machines guarantee performances that are typical of higher-category equipments and increase profitability
  • They are available in several configurations
  • They were designed to meet the needs of any user and to be suitable for all kinds of cutting operations

TECHNICAL INFORMATION

  • Max height of vertical cut: 2200mm
  • Max height of horizontal cut: 2080mm
  • Max length of cut: 4200mm
  • Max depth of cut: 60mm
  • Motor output: 4HP
  • Blade diameter: 250mm
  • Blade RPM: 5300mm
  • Scoring unit diameter: 70mm
  • Beam package (without scoring blades): 290 x 113 x 75   450kg
  • Beam package (with scoring blades): 310 x 113 x 115     490kg
  • Frame package: 561 x 22 x 235  450kg
  • Overall sizes (without scoring blades): 560 x 150 x 300
  • Overall sizes (with scoring blades): 560 x 150 x 315

Additional information

Weight 110 kg
Dimensions 190 × 80 × 60 cm
