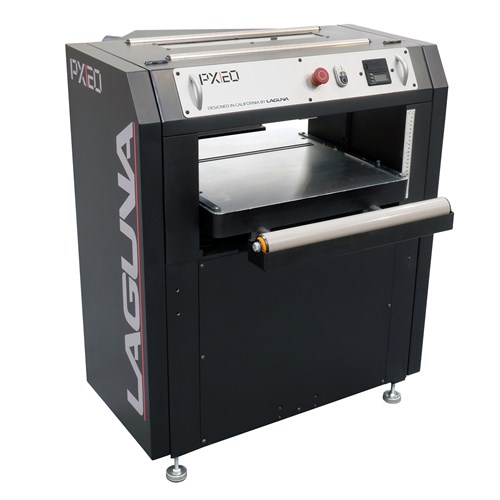

Laguna 20″ Planer 5.5HP

$8,059.00

LAGUNA_LOGO-cropped

The Laguna Thicknesser range has been overhauled with a whole new aesthetic and function.

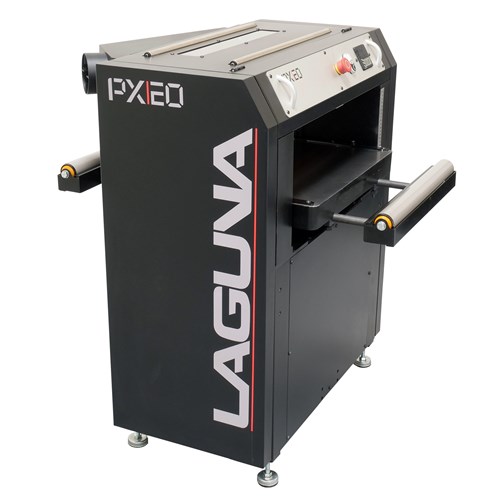

The Powerful new Laguna 20″ 5.5HP is now styled more after European models, with the motor housed in the machine cabinet and the “clean-line” box design to keep dust (and fingers!) away from the moving parts. The cabinet also features a top view window of the cutterhead! A hinged lid provides easy access to the cutterhead for blade rotation or changes. The top of the cabinet has two full width rollers for material return and a 4″ (100mm) dust port completes the simple looking, but clever design.

Fitted with a premium Sheatec II Helical Spiral Cutterhead featuring 6 rows of 12 cutters, providing a total of 72 four sided high quality tungsten carbide blades as standard. What does this mean? The ultimate in quiet operation, with a premium fine finish on even the crankiest grain! Helical cutterheads have become the “go-to” option for the finest finish possible off the blade and while eliminating tear-out can never be guaranteed with so many variables, these heads offer the best solution for all timbers, including figured, irregular and interlocked grain. Laguna have even included 10 additional individual blades as replacements should you take a nick out of one.

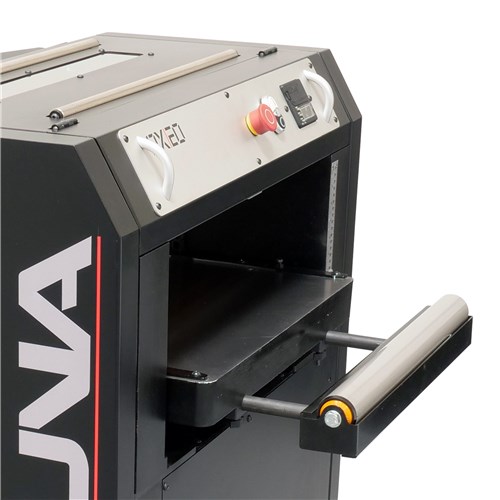

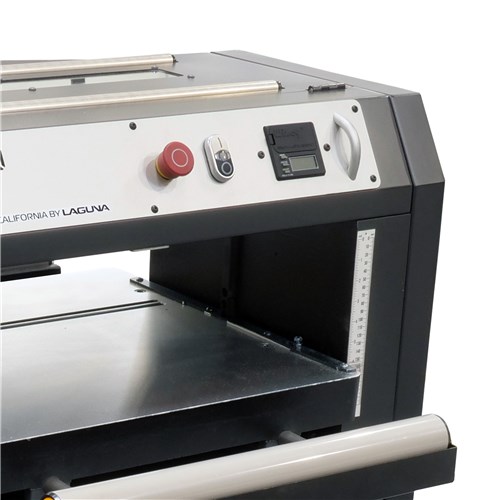

Height adjustment is achieved via a recessed hand wheel in the side of the body, with a Wixey Digital Readout built-in to provide you with accurate and easy-to-read height settings. Two feed speeds are available by shifting a lever with 16 and 28FPM (4.9 and 8.5MPM) on offer. The ground cast iron bed is 508mm x 546mm (20″ x 21.5″) and features both infeed and outfeed rollers, that are extendable 4″ (100mm) from the machine for additional material support. Full width anti-kickback fingers and a serrated infeed roller complete this new model from Laguna.

The unit has the capacity for material up to 508mm wide x 203mm thick (16″ x 8″), with a minimum stock thickness down to 6.35mm (1/4″).

The new model 20″ Laguna thicknesser is a premium quality workhorse, fit for purpose in any professional workshop, small business or schools.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

Available on back-order

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

SKU: LGT-TH-20-3PH Categories: , Tags: , ,

Product Features

  • Powerful 5HP motor (3 Phase required)
  • Sheartec II Helical Cutterhead with 72 Carbide Inserts (10 spare blades also supplied!)
  • Wixey Digital Height Readout Built-in
  • Maximum Cutting Width of 508mm (20")
  • Maximum Material Thickness of 203mm (8")
  • Two Feed Speeds of 4.9 and 8.5mpm (16/28FPM)
  • *NB: 3 PHASE Machine - No Plug/Cord is supplied.





Additional information

Weight 280 kg
Dimensions 110 × 100 × 125 cm
