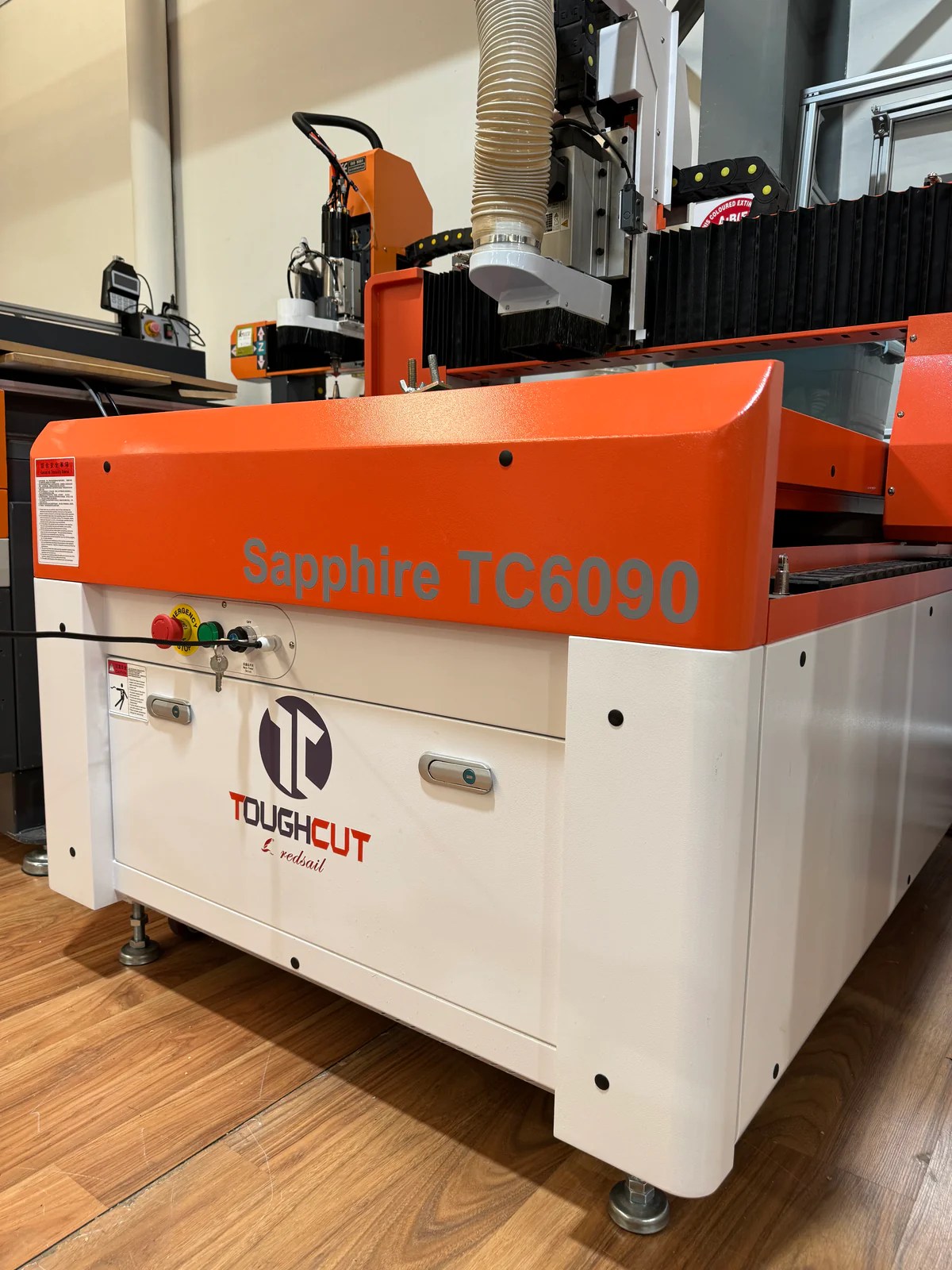

600mm x 900mm CNC Router SAPPHIRE TC6090 by Toughcut

$9,990.00





Toughcut 600mm x 900mm CNC Router SAPPHIRE TC6090

This shop CNC router is small and simple to use but has plenty of power for the home user or Woodwork Shed.

Various materials can be cut and engraved by this machine, such as PVC, Acrylic, wood, PCB, even some soft metals like aluminium and copper can be engraved. The machines are equipped with MACH3 Software and Driver allowing for easier control of the machine. Also, this machine can achieve excellent performance and high resolution carving due to ball and screw drive.

If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678

In stock (can be backordered)

Need some extra Items for your project

Subtotal:

Add-ons total:

Total:

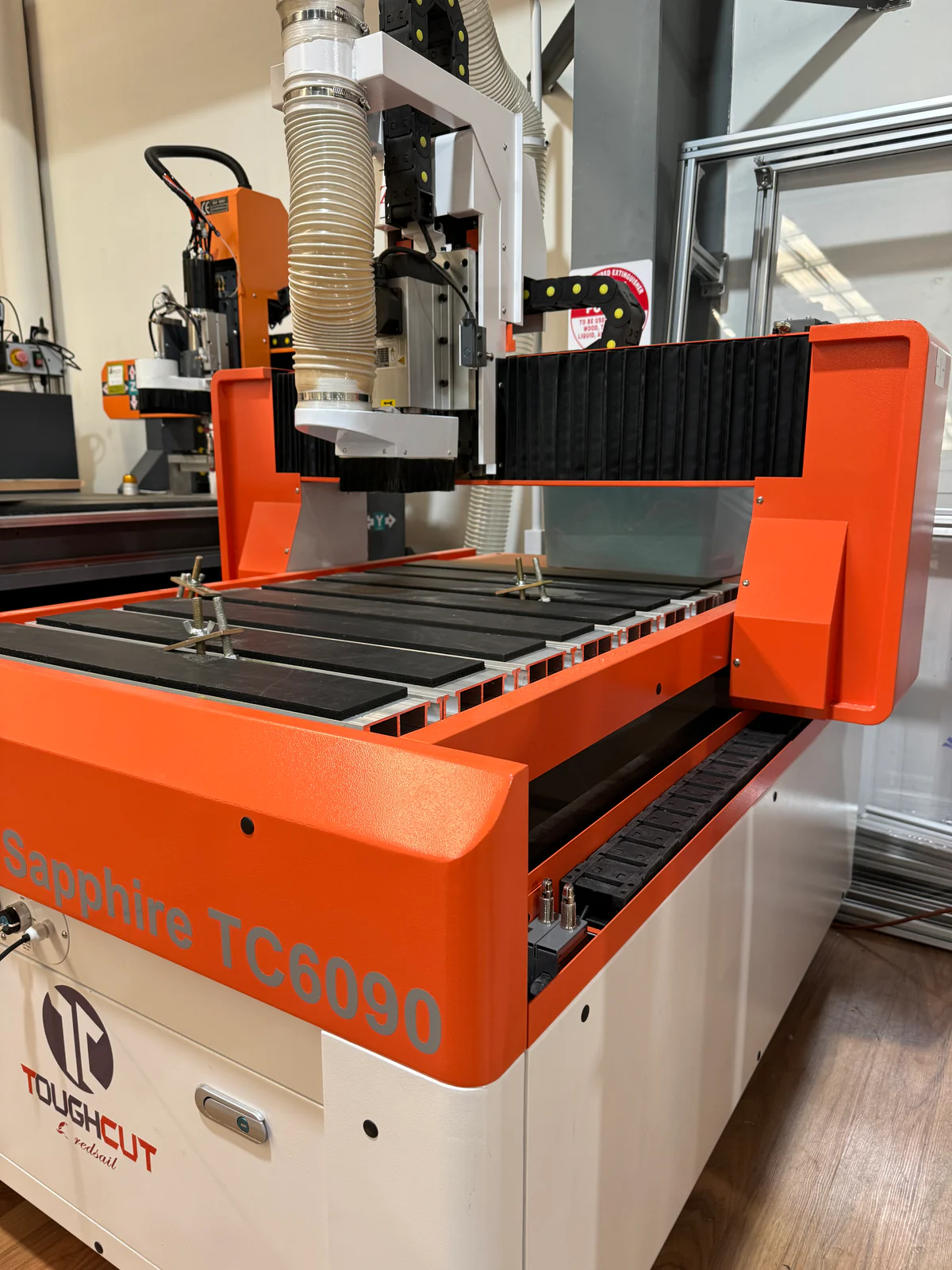

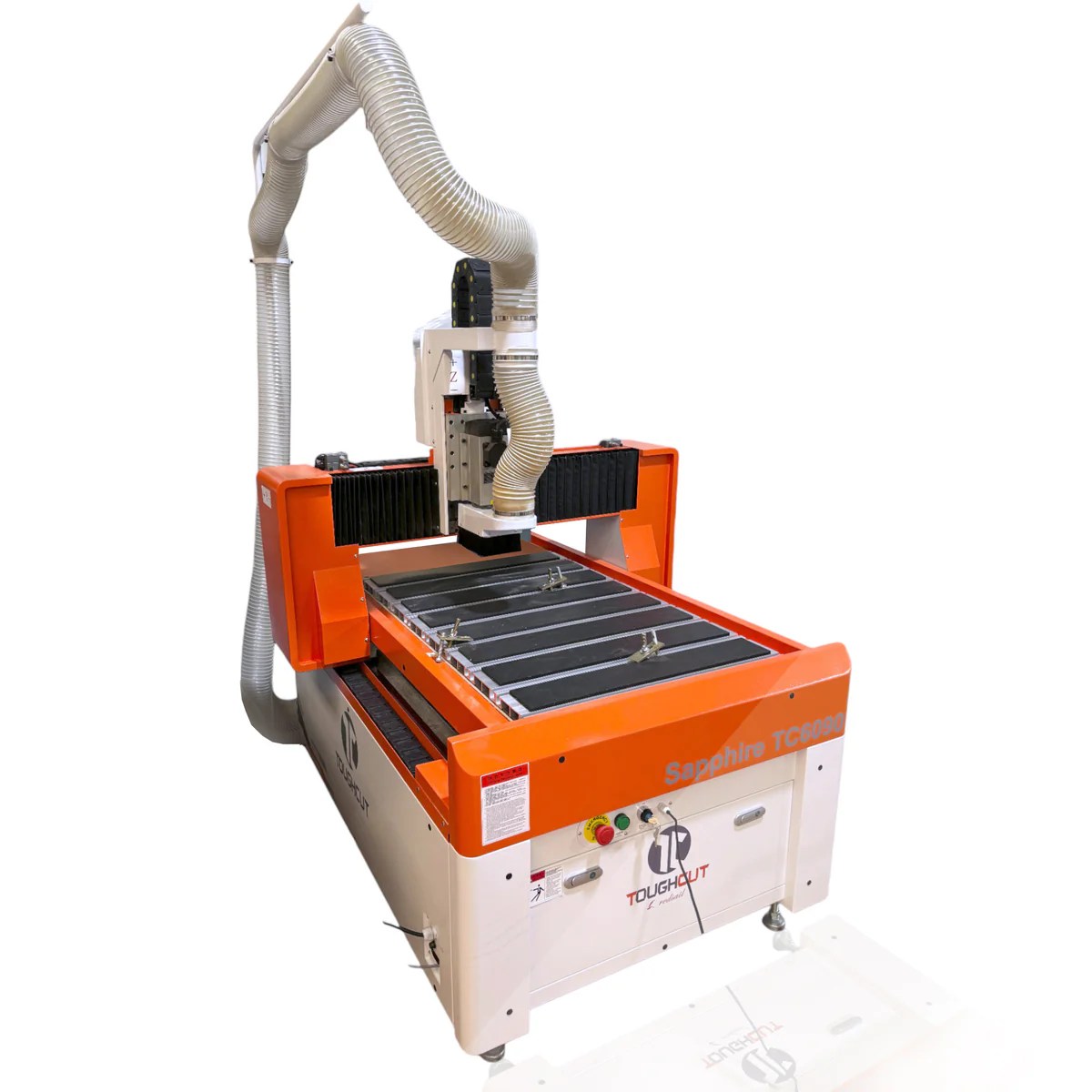

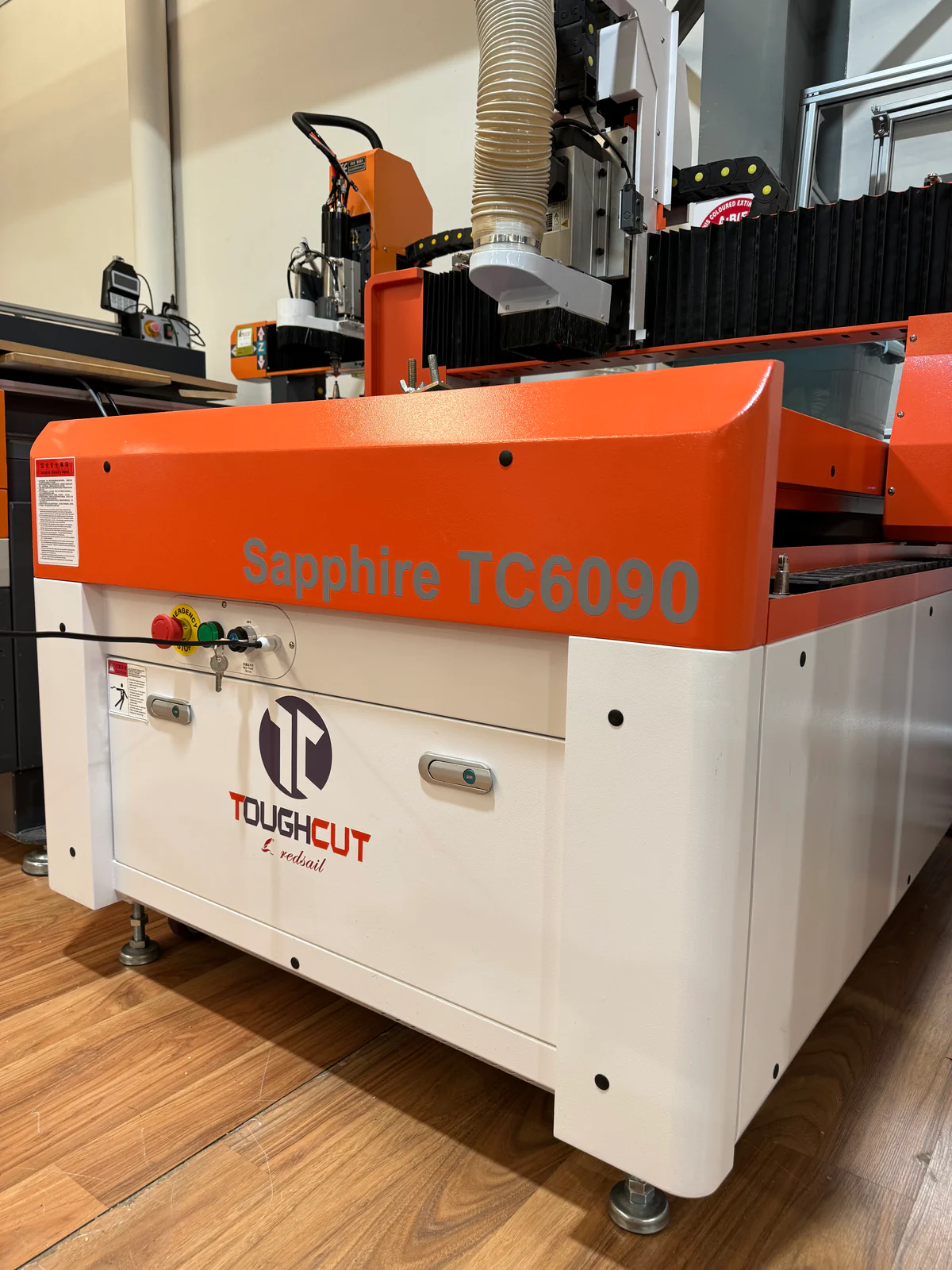

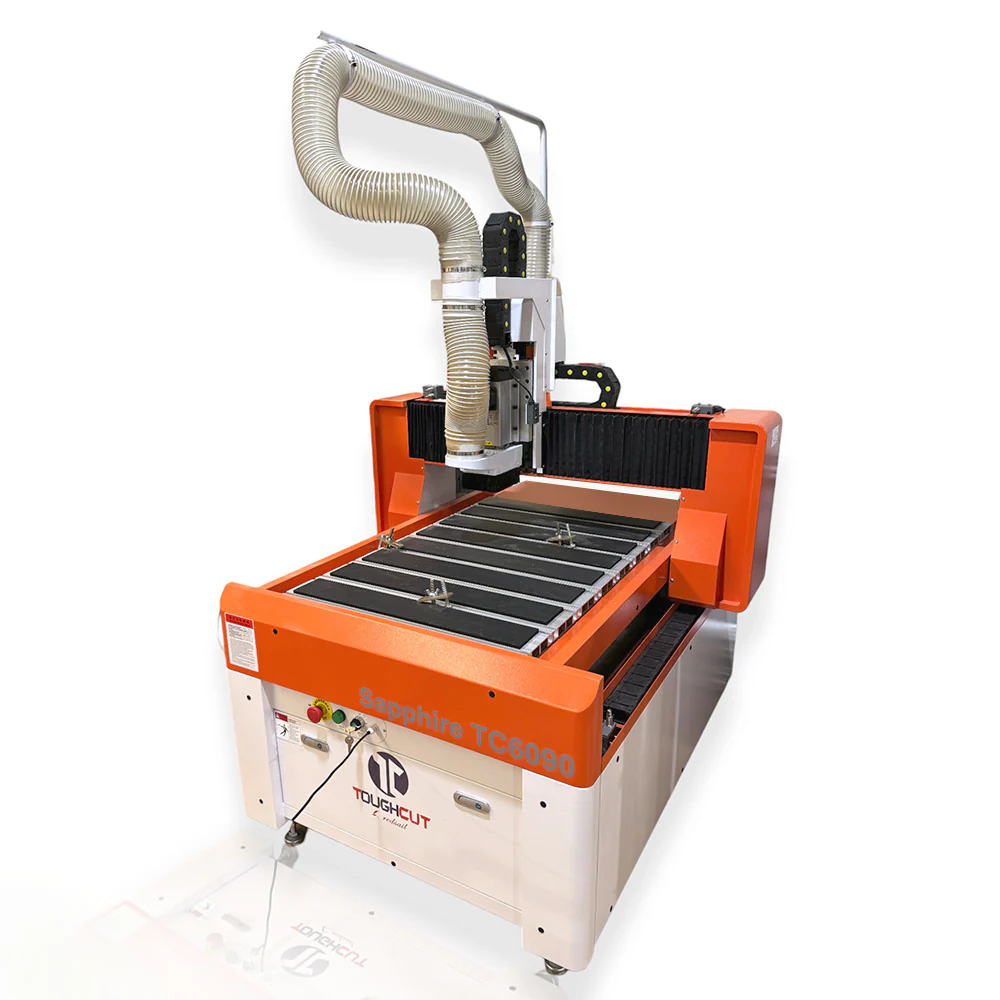

600mm x 900mm CNC Router SAPPHIRE TC6090 by Toughcut

Toughcut 600mm x 900mm CNC Router SAPPHIRE TC6090

This shop CNC router is small and simple to use but has plenty of power for the home user or Woodwork Shed.

Various materials can be cut and engraved by this machine, such as PVC, Acrylic, wood, PCB, even some soft metals like aluminium and copper can be engraved. The machines are equipped with MACH3 Software and Driver allowing for easier control of the machine. Also, this machine can achieve excellent performance and high resolution carving due to ball and screw drive.

Features

  • The machine bed is aluminium, rigid, solid, and stable
  • High precision
  • Equipped with wheels for mobility
  • Ball screw and linear guide rail, ensure stable and accurate operation
  • Can use most types of CADCAM software, e.g. Artcam Express
  • Auto tool measuring device

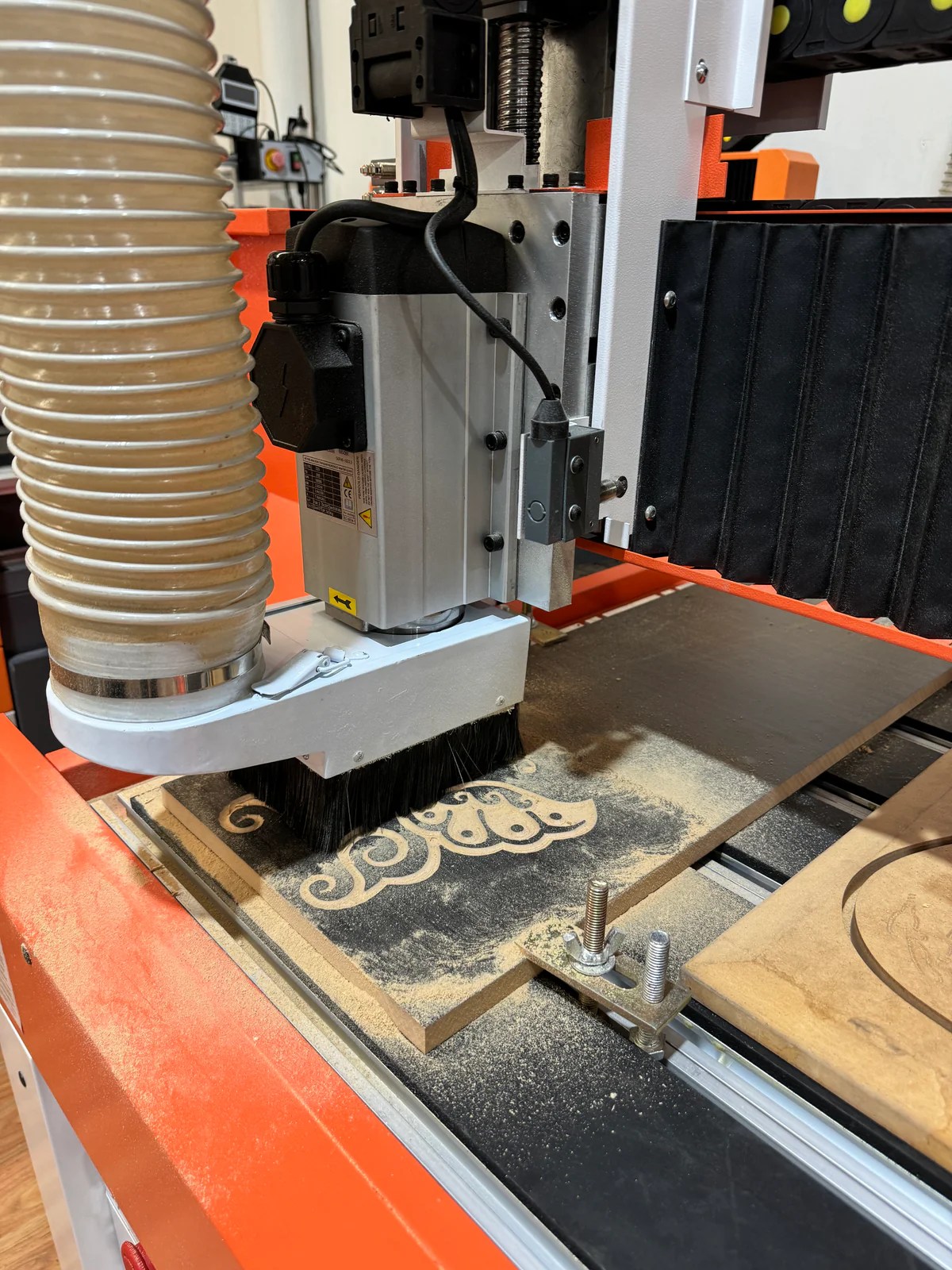

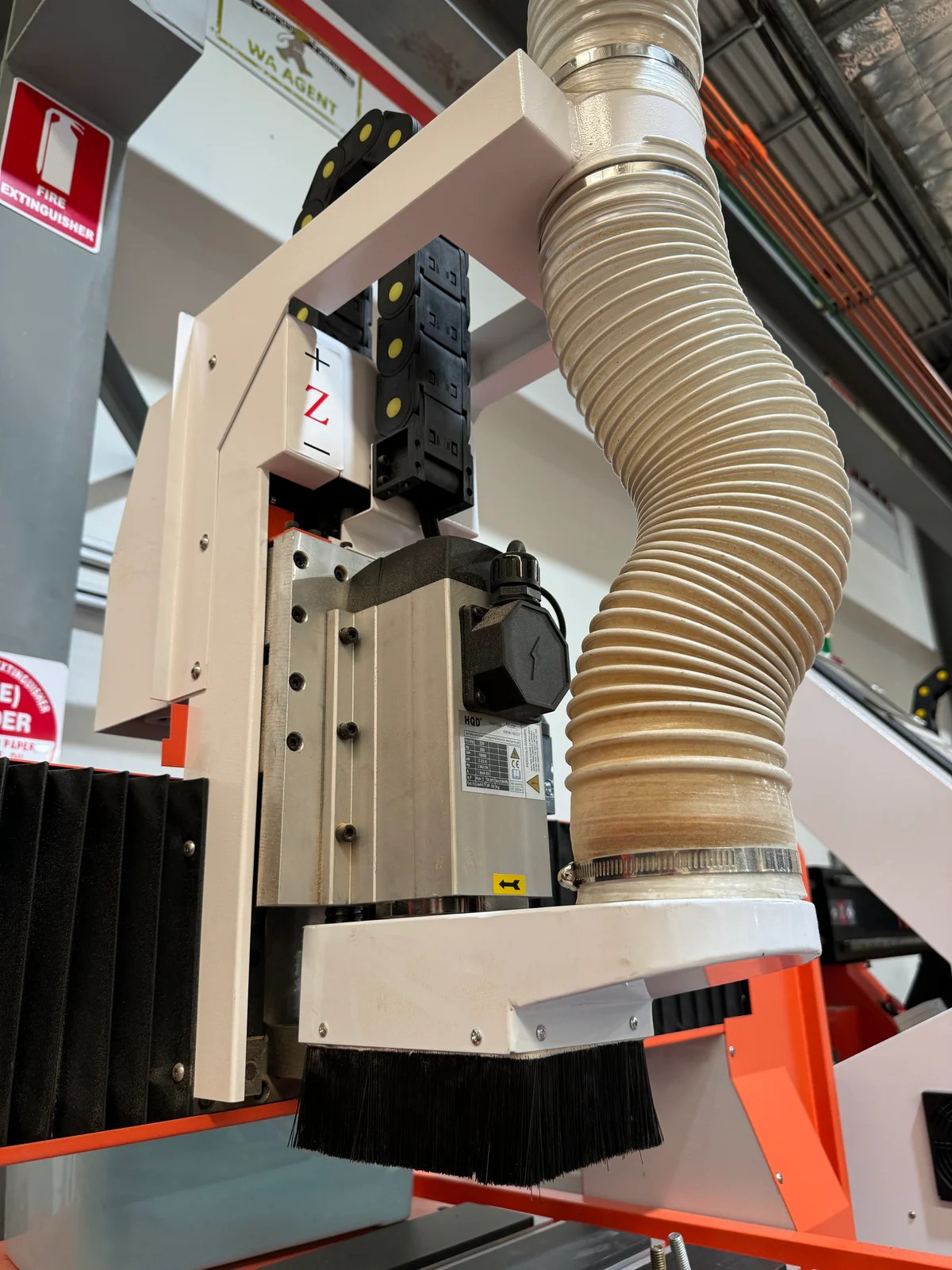

  • 2.2kw (3HP) Air Cooled Spindle

Specifications

  • Worktable Size: 600 x 900mm
  • Max. Moving Speed: 7m/min Max.
  • Machining Speed: 4m/min
  • Machine Precision: 0.02mm
  • Repeatability: 0.01mm
  • Gantry Height: 150mm
  • Drive Type: Stepper Motor
  • Spindle: 2.2kW (air cooled)
  • Spindle Speed: 0 – 24,000RPM

Information

Model Type CNC Router SKU964199 Series Sapphire Part NumberTC6090

Technical - Main Power Source230-240V 50Hz Single Phase

  • Motor Power (Output)3HP (2.2kW)
  • Accuracy 0.02mm
  • Mount ER20
  • No. of Tool Changers1
  • Speed Range0-24,000RPM
  • Dimensions
  • Product Length1410 mm Product Width1150 mm Product Height1740 mm
  • Product Weight (Net Weight) 370 kg



Standard Inclusions

  • Small Tool Box with Maintenance Tools
  • 2 x Cutters

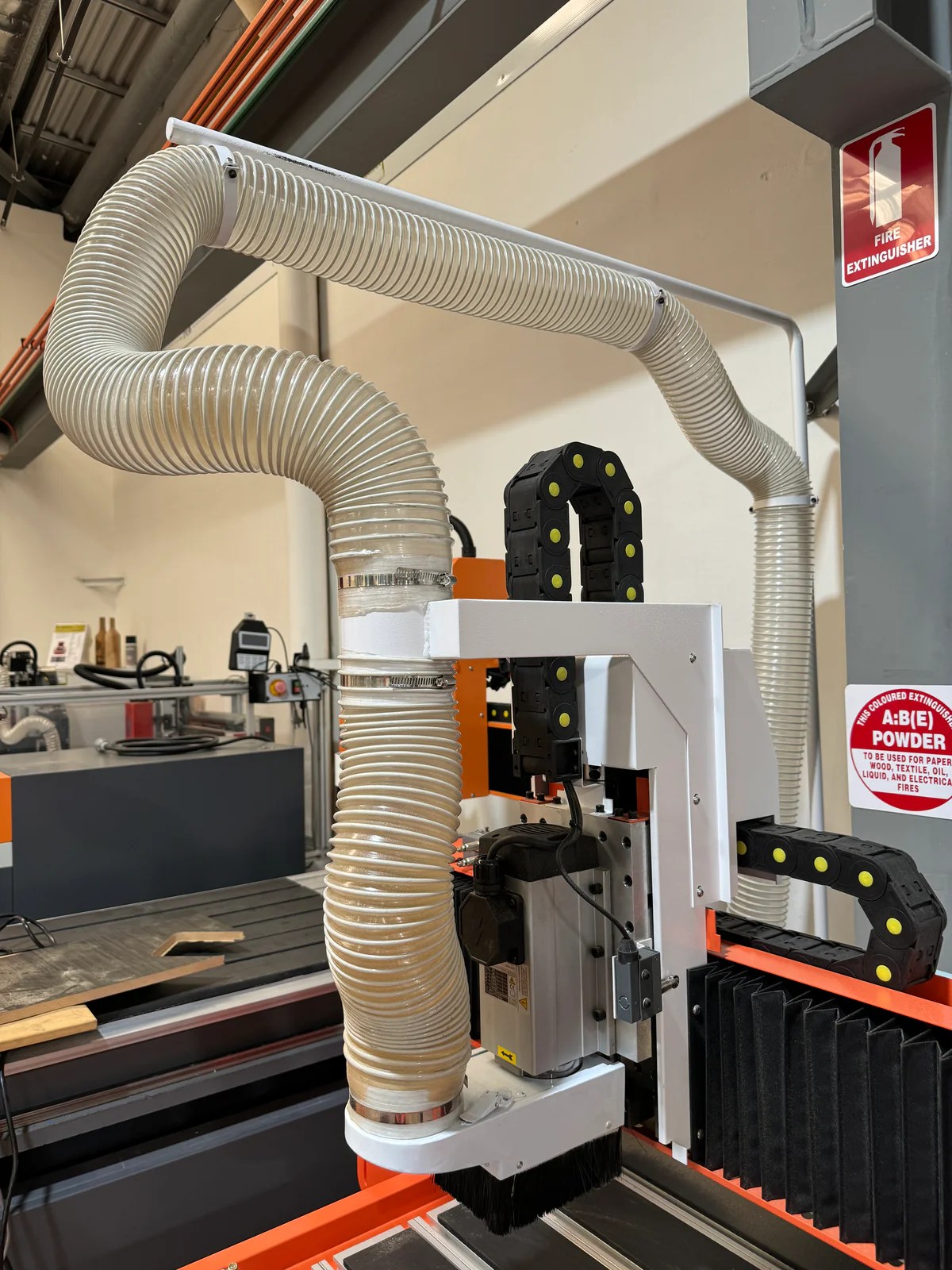

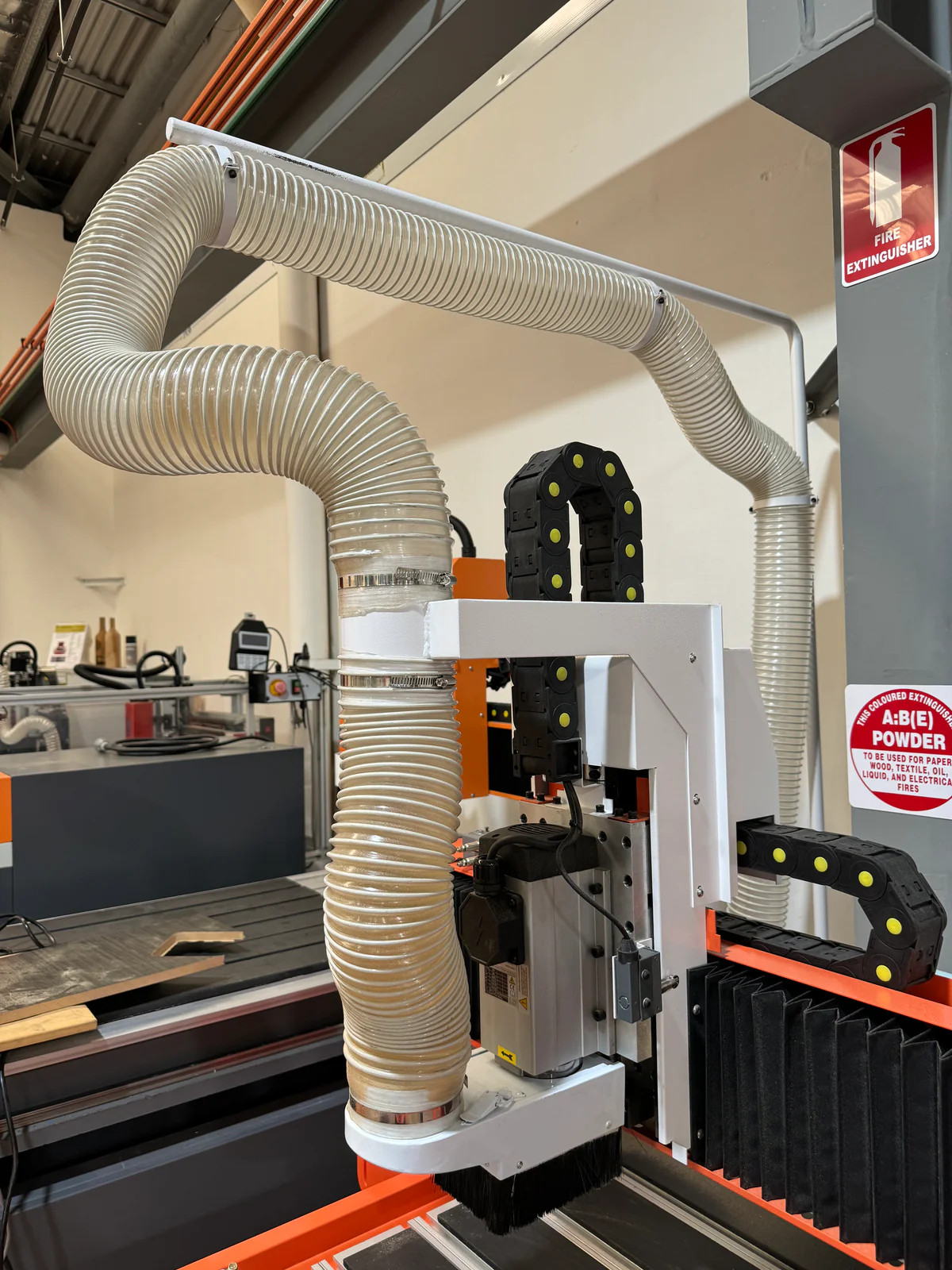

  • 100mm Hose suitable for Extraction (approx. 5m)

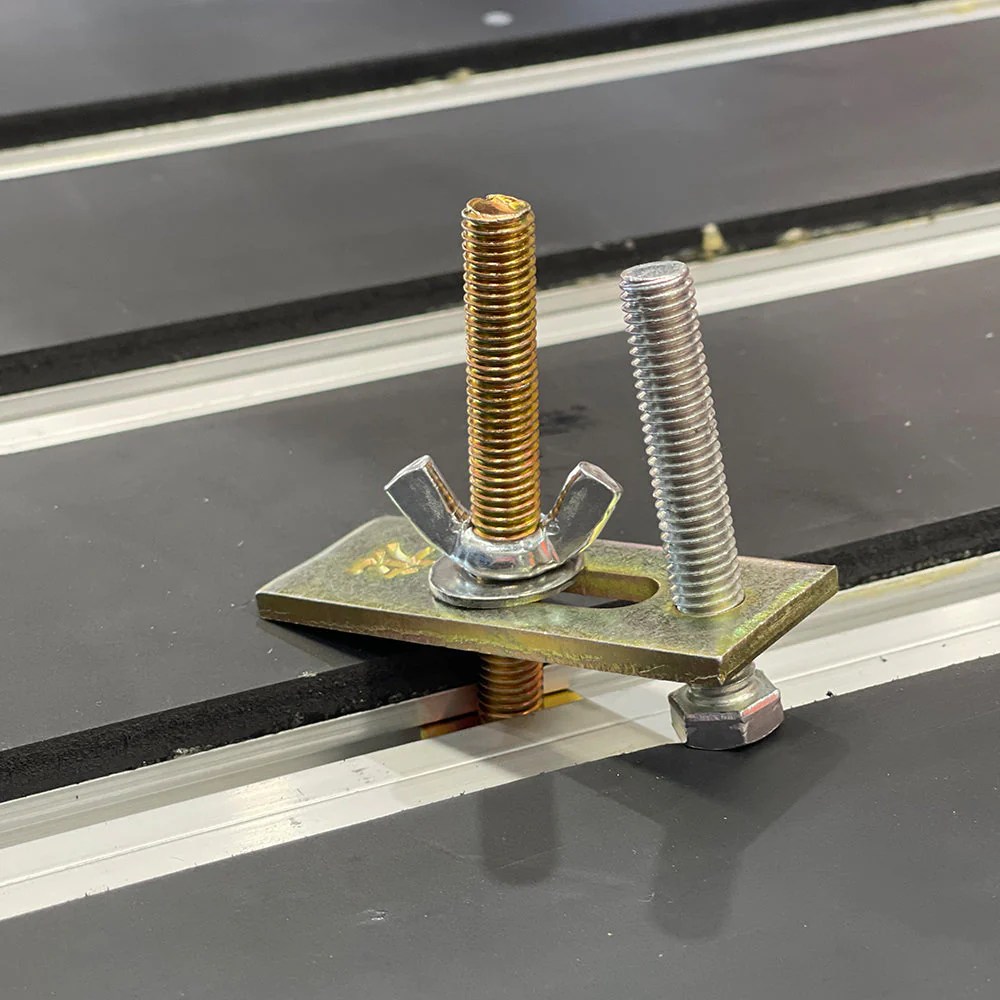

  • 6 x Workpiece Clamps
  • Machine Operating Hardware: Windows-based laptop with MACH3 software installed for machine control (* laptop not for CAD designing use)
  • Safety Emergency Stop Switch CE Certified Dust Port100mm
  • Workshop (Site) Info Electrical Connection10 Amp Plug
  • Workshop Requirements Power Supply: 2 x 230-240V 50Hz Single Phase - 10Amp Plug (1 x for Machine, 1 x Machine Hardware)
  • User Computer / Laptop: (To draw and design)CAD CAM Software: Required (To draw and design)
  • Odour & Fume Extractor: Highly Recommended
  • Safety Wear: Safety Glasses Cutters / Tooling - Various sizes depending on client requirements
  • Warranty1 Year
  • Shipping Weight (Gross)400.0 kg
  • Requires a Forklift / Tail Lift to Unload



Additional information

Weight 300 kg
Dimensions 1500 × 1300 × 1300 cm
