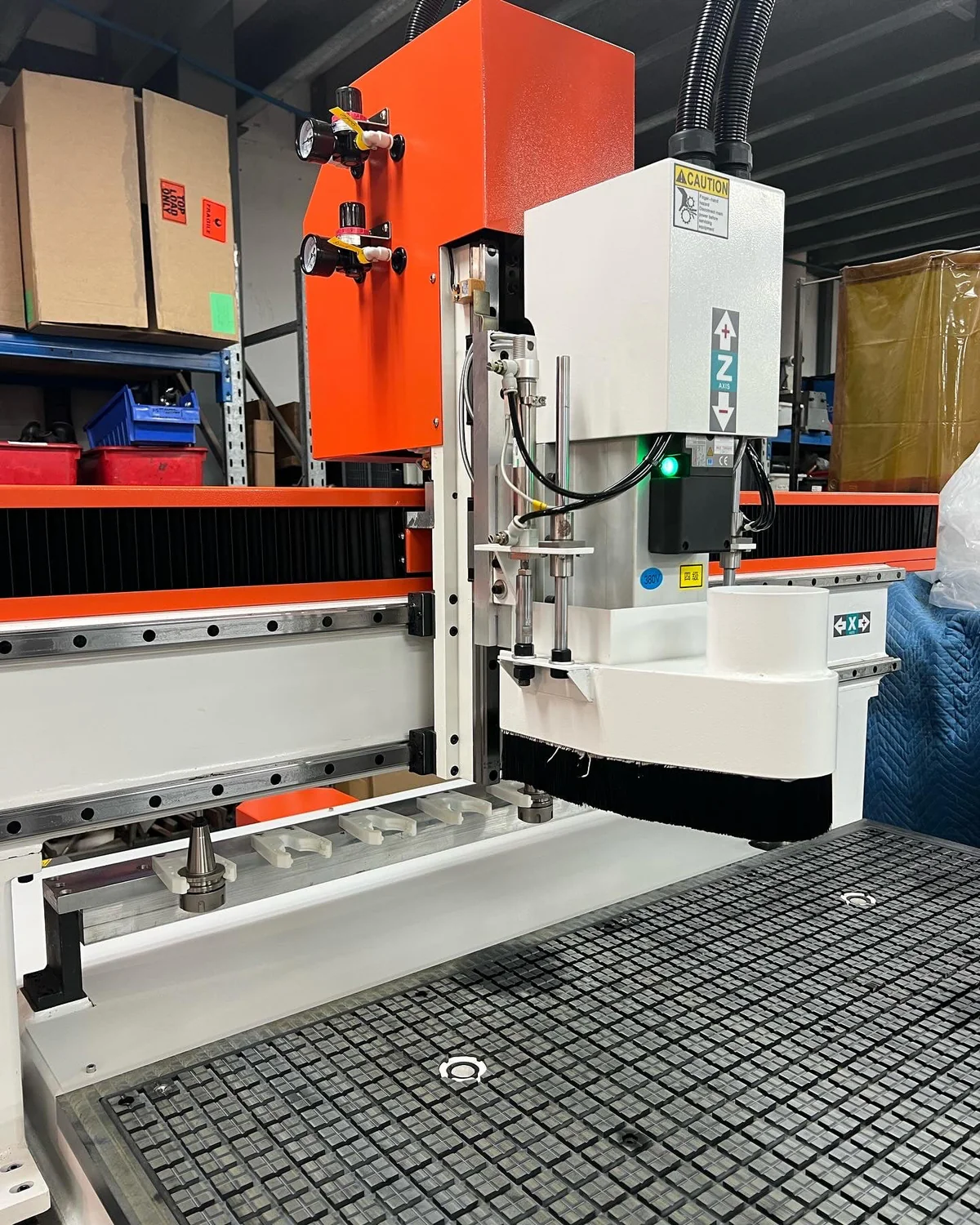

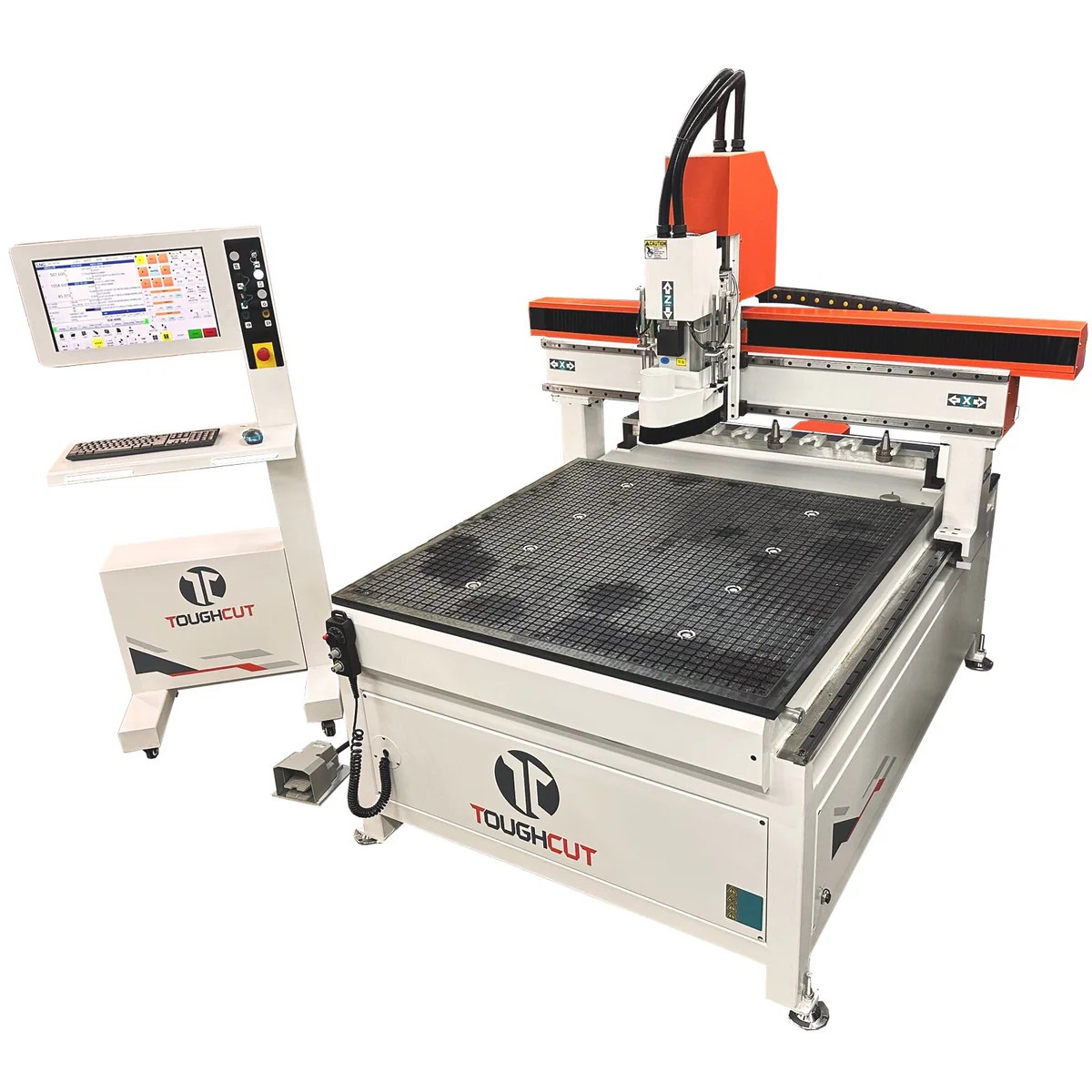

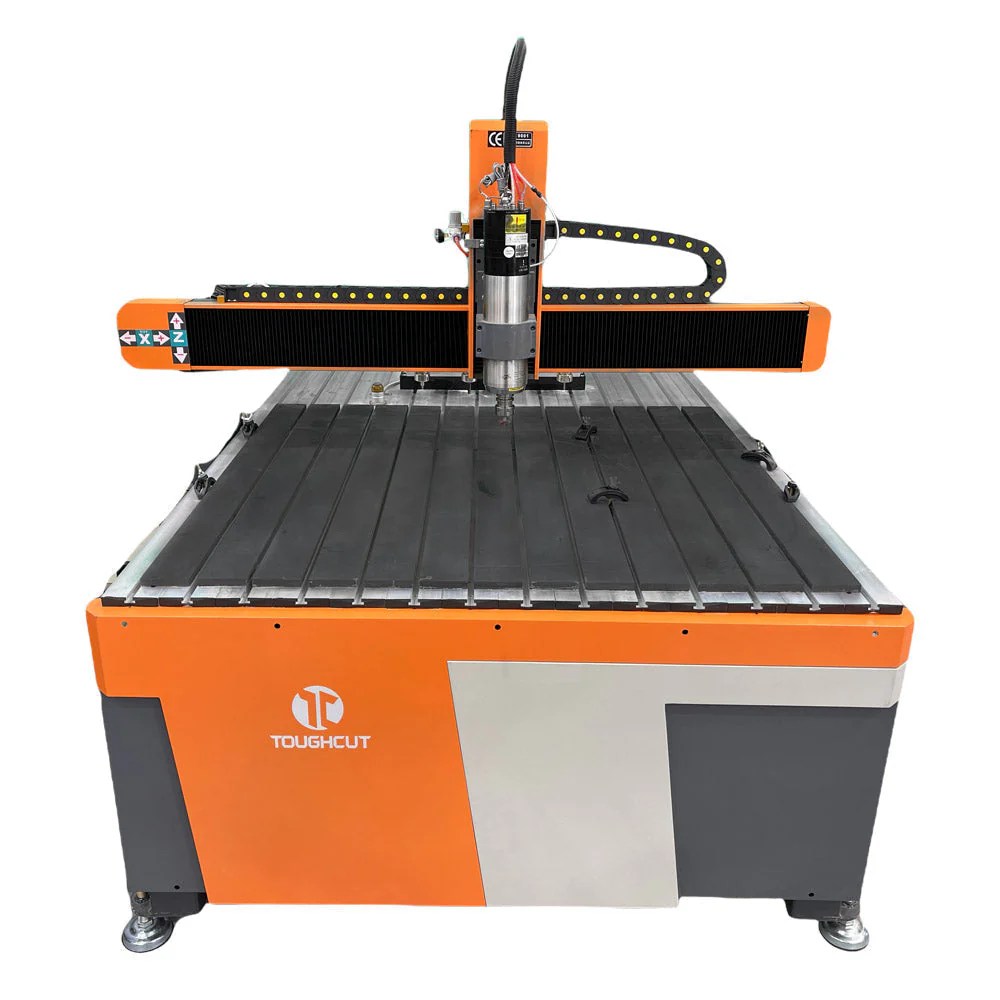

1200mm x 1200mm CNC Router with Auto Tool Change 415V SAPPHIRE TCAKM1212VC by Toughcut
$29,999.00 – $35,900.00
The Toughcut SAPPHIRE CNC Router Series is designed for the production of custom furniture, parts, and prototyping. The compact yet robust working centre is suitable for hobbyists, craftspeople, schools, education and small workshops environments.
If item is showing out of stock or on back order, please call for arrvial update and reverse your product - 03 9720 1678
1200mm x 1200mm CNC Router with Auto Tool Change 415V SAPPHIRE TCAKM1212VC by Toughcut
Features

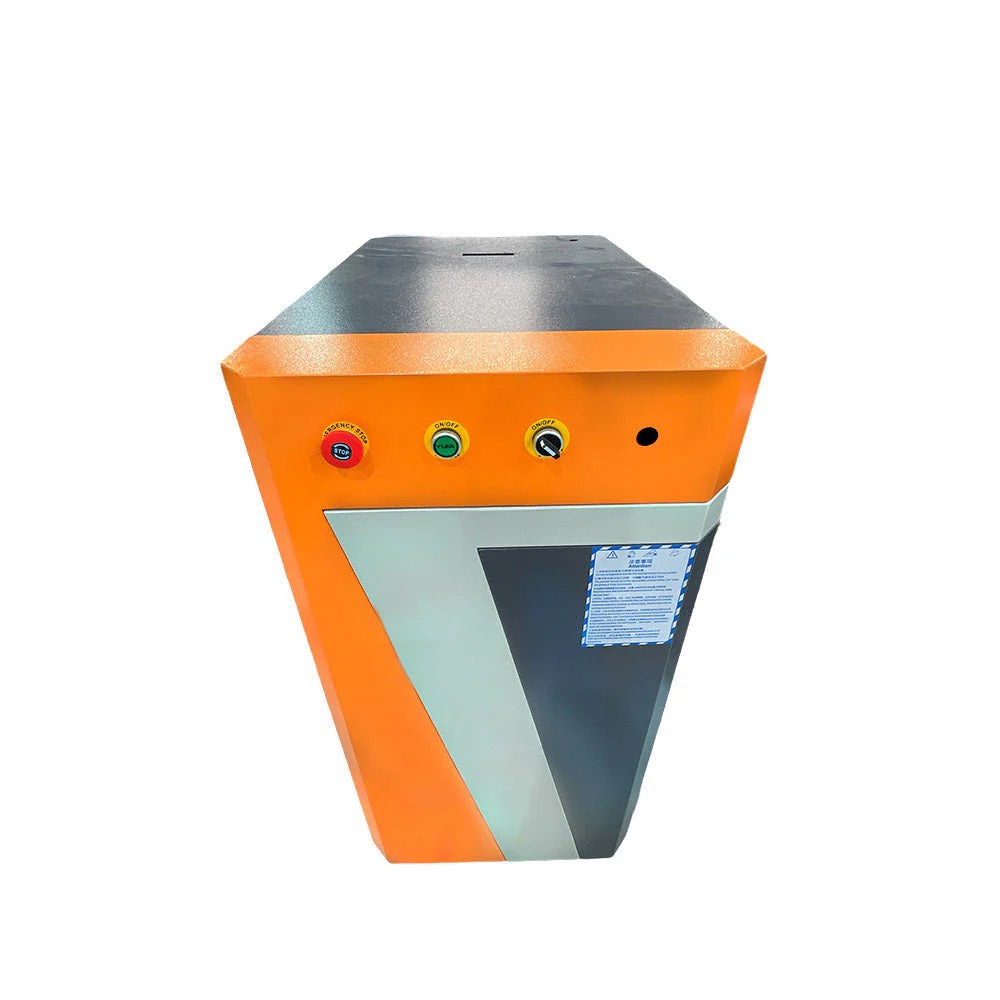

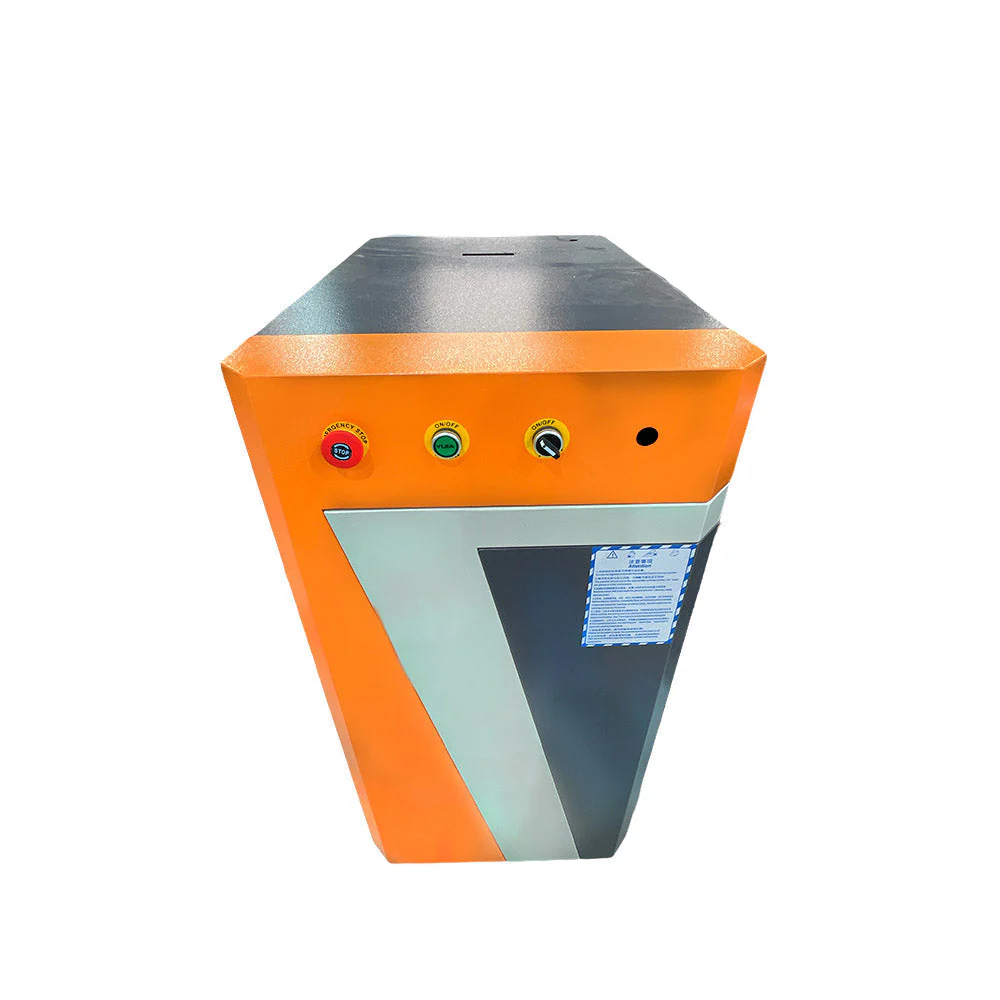

- OPERATION CONTROLLER | Mach3 Controller

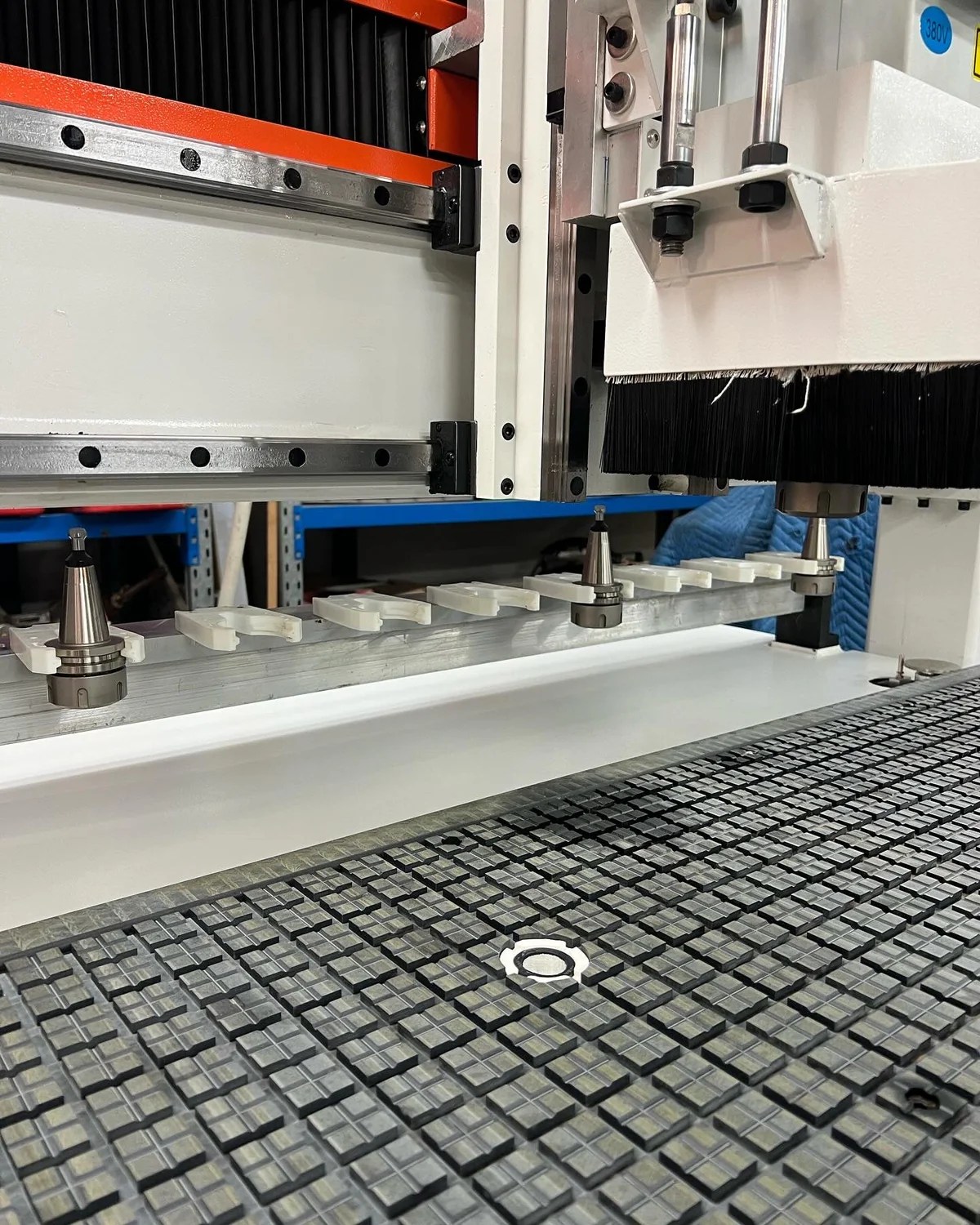

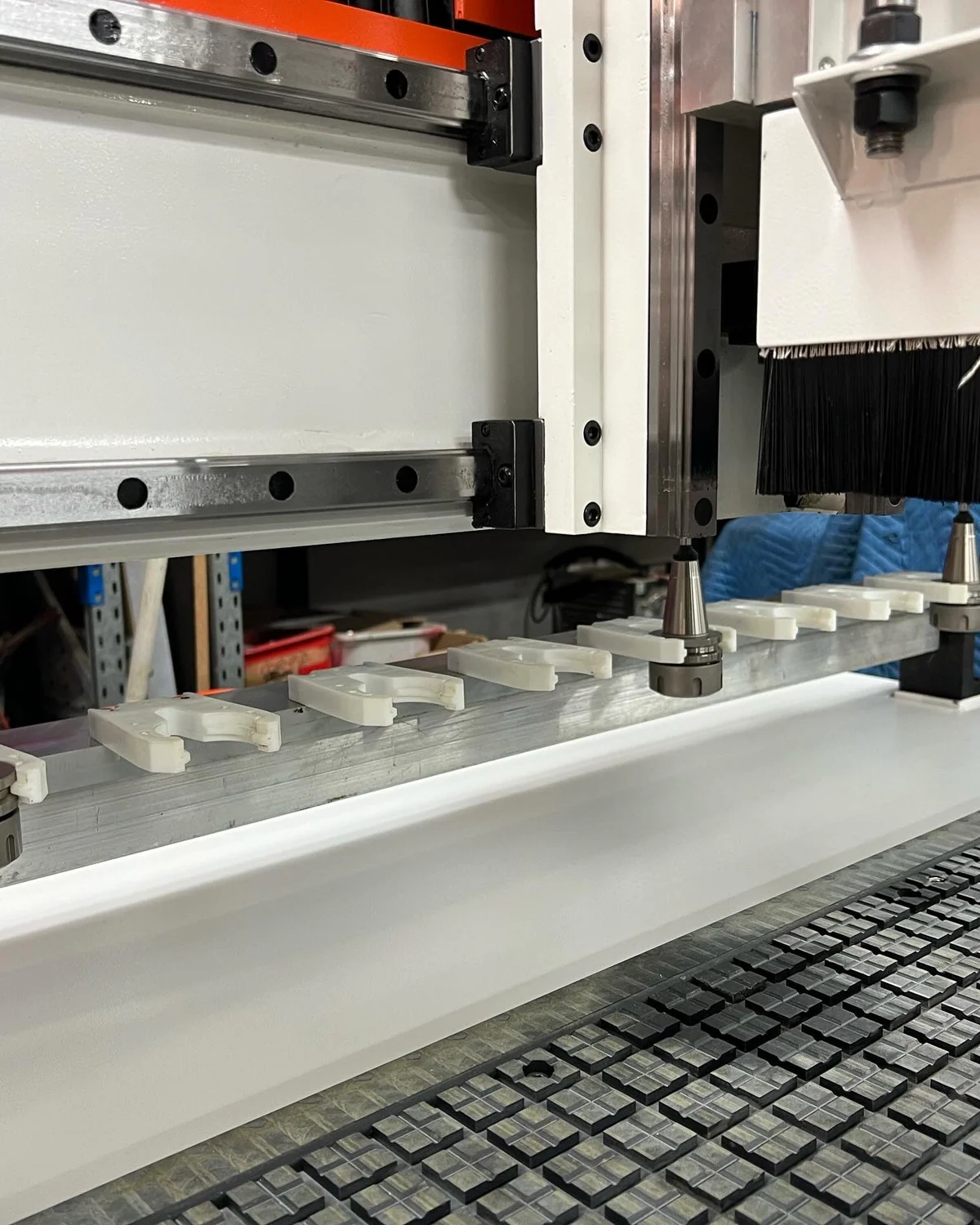

- AUTO TOOL CHANGER | 4 or 8 Tool Changer with ISO30 for fast tool change and efficiency (no need for manual tool change).
- DRIVE MOTOR | Leadshine Servo Motor
- HELICAL GEAR & RACK TRANSMISSION | Good meshing performance, smooth transmission, and low noise reducing the load of each pair of gears and improving the bearing capacity of the gears.

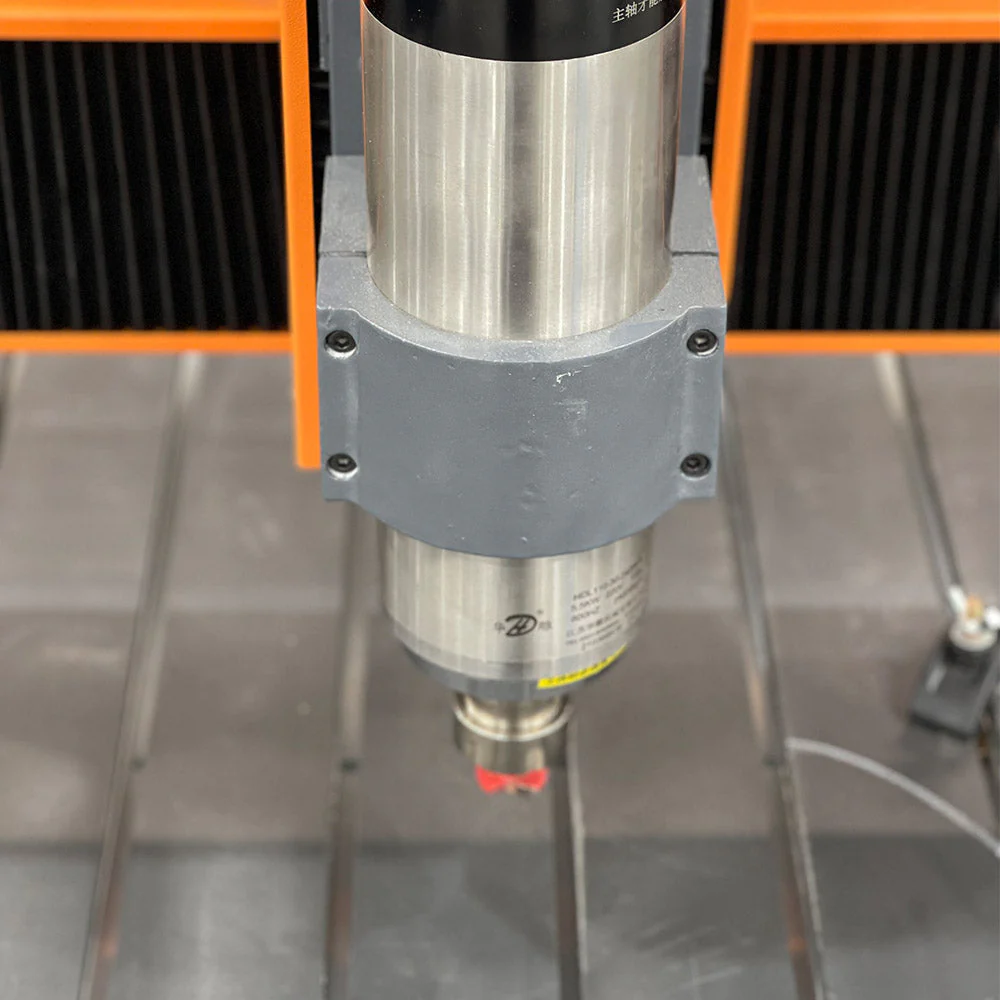

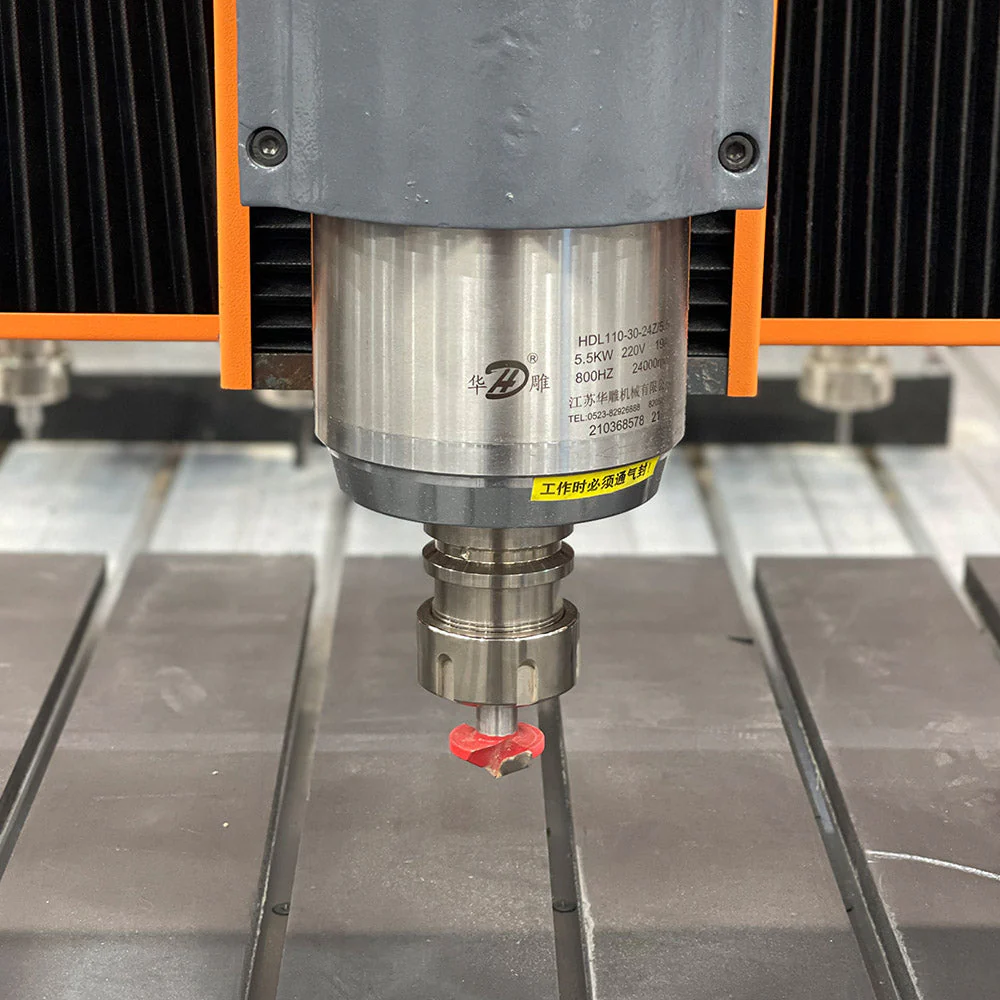

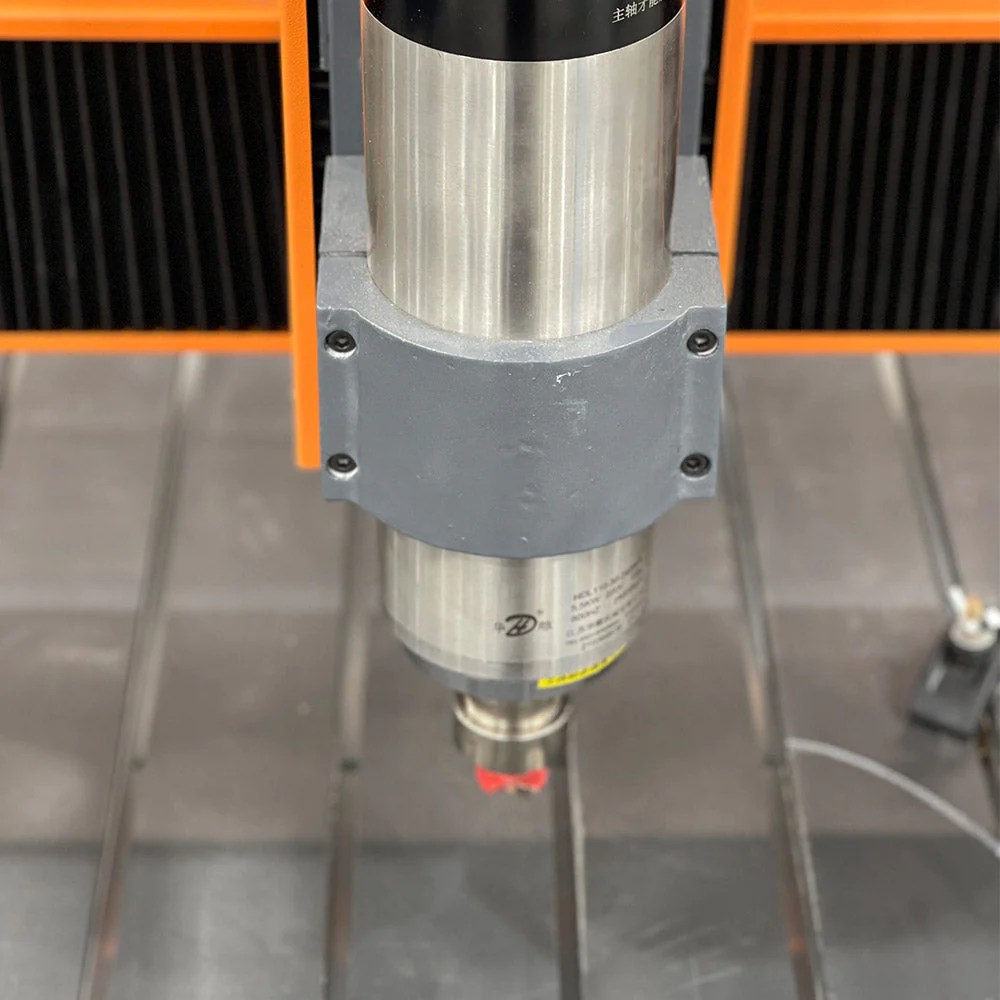

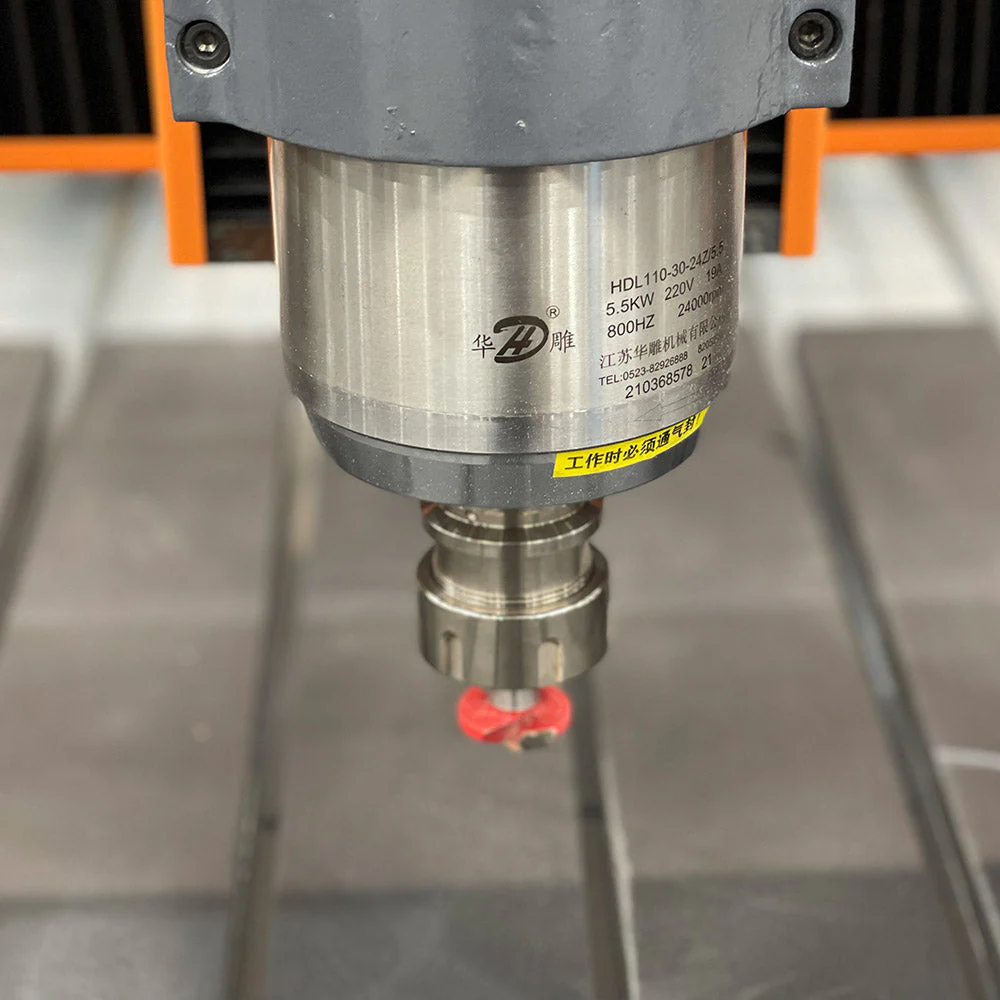

- SPINDLE | 5.5kW ATC Spindle (air-cooled)
- ELECTRONICS | Leadshine Electronics
- GUIDE RAILS | HIWIN Guide Rails with sliding technology to easily drive the machine and ensure good bearing capacity.
- Automatic tool length calibration device.
- Vacuum table for holding the workpiece.
Applications
- Furniture & Wood Processing: wooden doors, chairs, cabinets, stairs, computer tables, sewing machine, musical instruments.
- Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture.
- Decoration / Craft Industry: Engraving characters/patterns onto gifts, souvenirs, and shaping of acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper and aluminum, and other soft metal plate engraving and milling cutting.
- Advertising / Signage Industry: Engraving and cutting of various labels and signage on materials including marble, brass, steel, and other metallic material.
- Engraving: Engraving characters, numbers, and other patterns on labels for products directly.
- Architectural Models: Engraving fine window, fencing, and wall patterns.
Standard Inclusions
- 4 x ISO30 Tool holders - No Collets
- Vacuum pump for work table
Workshop Requirements
- PC based computer or laptop
- 20amp 5pin 415V socket outlet
- Compressed air supply, minimum FAD 200L/MIN @ 6 bar - the machine is fitted with Nitto Style Male Fitting
- Dust Extraction, Minimum 3HP, 100mm outlet
- Tooling, the machine is not supplied with tooling
- Collets for tool Holders - size Depends on the tooling
- CAD / CAM Software (i.e vertical v carve)
- Bracket for holding dust hose
- Compressed Air
Additional information
| Weight | 1500 kg |
|---|---|
| Dimensions | 2300 × 2200 × 2200 cm |
| Tool Change | 4 Tool Change, 8 Tool Change |
