Supermax Drum Sanders For Sale With Australia Wide Delivery

The Supermax 25×2 ES Dual Drum Sander has all the exceptional features of our other drum sanders but adds an exclusive Edge Sanding Technology, making it easy to sand edges of panels and doors!

PRODUCT FEATURES

• Digital read outs to monitor depth of cut
• Drums can be set at different heights relative to one another accommodating alternative paper grits
• Direct mounted motor with 15 groove poly v-belt drive system for silent running and maximum power transfer
• Sands veneer sections of 0.8mm in thickness
• Drums supported both sides by the heavy duty castings
• Precision hand wheel adjustment
• Convenient alignment the drums to the table surface
• Edge sanding at top of unit up to 150mm
• Adjustable speed in-feed conveyer belt

TECHNICAL INFORMATION

• Main motor: 3HP single phase, 5HP three phase
• Conveyor motor: 1/4HP DC motor smart send control
• Min. Sanding Length: 90mm
• Maximum sanding thickness: 150mm
• Minimum sanding thickness: 0.8mm
• Maximum sanding width 635mm
• Drum speed: 1500RPM
• Drumx2: 127 x 635mm – extrusion aluminium
• Dust chute: 2 x 100mm
• Dimensions: 1070 x 670 x 1320mm
• Net weight: 255kg

Supermax Drum Sanders For Sale With Australia Wide Delivery

We have a huge range of drum sanders instock ready to ship out Australia wide, shop online or in store for great deals Today

The Supermax 25×2 ES Dual Drum Sander has all the exceptional features of our other drum sanders but adds an exclusive Edge Sanding Technology, making it easy to sand edges of panels and doors!

PRODUCT FEATURES

• Digital read outs to monitor depth of cut
• Drums can be set at different heights relative to one another accommodating alternative paper grits
• Direct mounted motor with 15 groove poly v-belt drive system for silent running and maximum power transfer
• Sands veneer sections of 0.8mm in thickness
• Drums supported both sides by the heavy duty castings
• Precision hand wheel adjustment
• Convenient alignment the drums to the table surface
• Edge sanding at top of unit up to 150mm
• Adjustable speed in-feed conveyer belt

TECHNICAL INFORMATION

• Main motor: 3HP single phase, 5HP three phase
• Conveyor motor: 1/4HP DC motor smart send control
• Min. Sanding Length: 90mm
• Maximum sanding thickness: 150mm
• Minimum sanding thickness: 0.8mm
• Maximum sanding width 635mm
• Drum speed: 1500RPM
• Drumx2: 127 x 635mm – extrusion aluminium
• Dust chute: 2 x 100mm
• Dimensions: 1070 x 670 x 1320mm
• Net weight: 255kg

Supermax Drum Sanders For Sale With Australia Wide Delivery

The Supermax 25×2 ES Dual Drum Sander has all the exceptional features of our other drum sanders but adds an exclusive Edge Sanding Technology, making it easy to sand edges of panels and doors!

PRODUCT FEATURES

• Digital read outs to monitor depth of cut
• Drums can be set at different heights relative to one another accommodating alternative paper grits
• Direct mounted motor with 15 groove poly v-belt drive system for silent running and maximum power transfer
• Sands veneer sections of 0.8mm in thickness
• Drums supported both sides by the heavy duty castings
• Precision hand wheel adjustment
• Convenient alignment the drums to the table surface
• Edge sanding at top of unit up to 150mm
• Adjustable speed in-feed conveyer belt

TECHNICAL INFORMATION

• Main motor: 3HP single phase, 5HP three phase
• Conveyor motor: 1/4HP DC motor smart send control
• Min. Sanding Length: 90mm
• Maximum sanding thickness: 150mm
• Minimum sanding thickness: 0.8mm
• Maximum sanding width 635mm
• Drum speed: 1500RPM
• Drumx2: 127 x 635mm – extrusion aluminium
• Dust chute: 2 x 100mm
• Dimensions: 1070 x 670 x 1320mm
• Net weight: 255kg

Supermax Double Drum Sanders Sale With Australia Wide Delivery

PRODUCT FEATURES

• INTELLISAND Control:
  – Automatically adjusts conveyor speed based on load
  – Prevents gouging, damaging or burning stock
  – Provides consistent finish even with varying grain pattern and density
  – Greatly increases abrasive planing and dimensioning speed
• Flatness Guarantee:
  – Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than 0.254mm across the width of the sander
• Abrasive conveyor belt:
  – Offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
• Patented Abrasive Attachment System:
  – Effectively tensions the abrasive wraps, preventing loose abrasive and overlap
• Easiest access:
  – To Abrasive Fastening System of any drum sander! Machine design includes additional space around abrasive, eliminating the need for special tools
• Self-cooling drum prevents overheating and extends abrasive life
• Drum ball bearing are sealed and permanently lubricated
• Cast stand, zinc-plate steel bed, centerless ground column tubes
• Caster included

• Sanding Capacity:
  – Max Width: 939mm
  – Min Length: 89mm
  – Max Thickness: 304mm
  – Min Thickness: 0.8mm
• Dimensions: 1092.2 x 1473.2 x 787.4mm
• Drum: Extruded aluminium, 127 x 939.8mm
• speed: 1740RPM
• Dust Hood: Steel hood, hinged back, three 101.6mm vacuum ports, min. 1800 CFM recommended
• Ball bearings (25.4mm): 4, sealed and permanently lubricated
• Conveyor Motor: 100 in.-lb. torque, direct drive D.C. motor, infinitely variable 0-15 FPM
• Drive Motor (TEFC): 5 HP, 400V, 50Hz
• Power requirements: 3 PH 20 amp service
• Shipping Weight: 238kg

Supermax Drum Sanders For Sale With Australia Wide Delivery

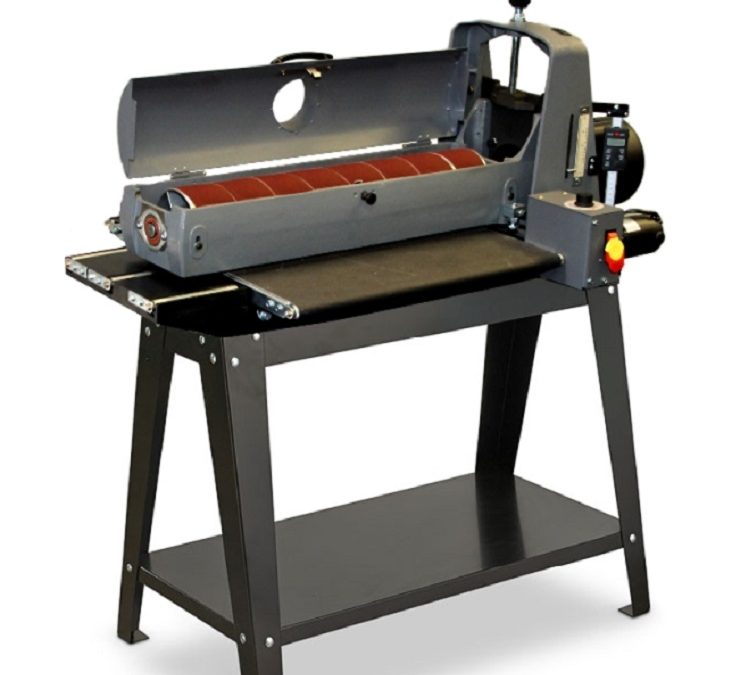

Supermax 25-50 Drum Sander
