PTO02- Lathe Guard

$738.00$793.00

Protects the operator from direct contact with the upper part of the chuck lathe and from lubricant-coolant projection.

PLEASE NOTE all Tecno Piu safety guards require electrical interconnection with main machinery switch gear. These units must be fitted by a licensed electrician. Machinery Maintaince can perform these modifications to new and existing machinery. Please contact our sales office to organise a quote.

Clear

Description

A low cost option with all of the features of the Model PTO 01 below but without a steel support frame for the heavy clear Plexiglas Resist 65 half round protective shield.  Supplied with integral 2NC safety rated micro switch.

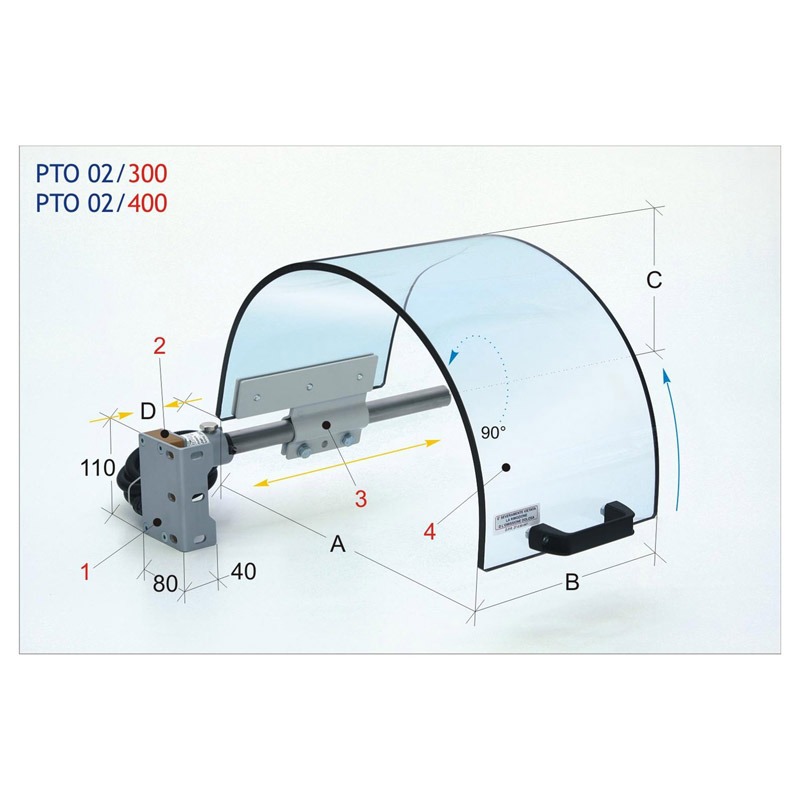

MODEL Approx Max Chuck Diameter A B D
PTO 02/300 225mm 300mm 200mm 10 – 200mm
PTO 02/400 325mm 400mm 220mm 10 – 190mm

Additional information

Weight 5 kg
Dimensions N/A
PTO 02

300, 400
